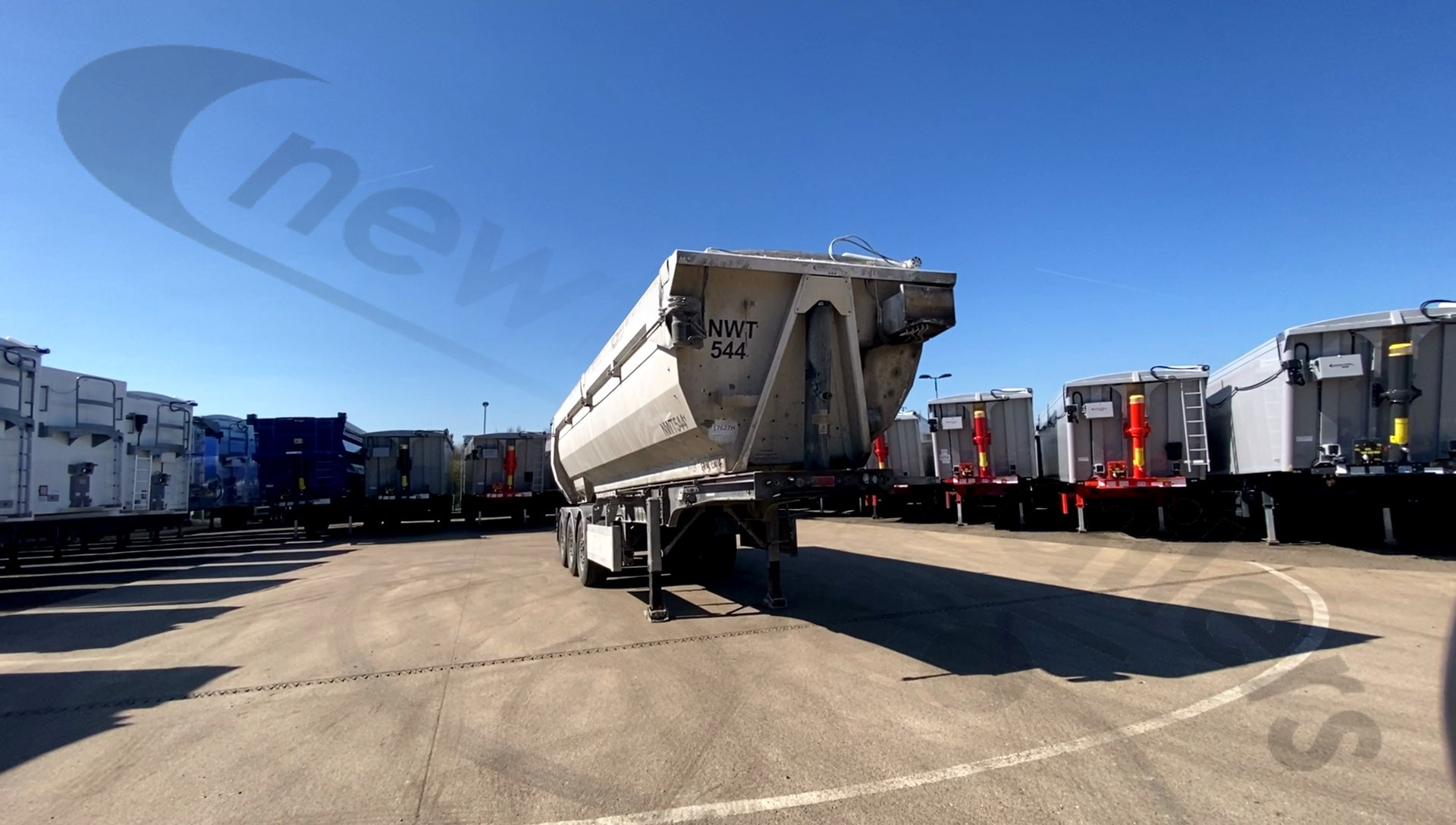

Fruehauf's Lightest Aggregate Trailer Offering - 6000kgs with full equipment
40 cuyd alloy body - just 3.100 m over the side loading height a on straightframe PERFORMANCE chassis. This chassis type is the lightest that Fruehauf have developed.
SAF discs with front lift axle - auto lift auto drop with over ride for traction assist set.
Alloy polished wheels
8 mm floor - full length - this is the thicker single sheet floor without joins for strength on aggregate work 8mm 110 Brinnel aluminium floor deck full length
Rear under run bar with rear towing eyes attached
Side impact bars
Catwalk with UK nearside drop
Weigher - full electronic four cell system with chassis mounted indicator.
Silver Metallic Body Colour - with clear coat laquer finish.
Half pipe shape for easy discharge
Inclined front headboard (without doghouse) for ease of discharge
Air operated inclined door - operated from ground at the rear near side and front of chassis nearside
Dawbarn Hydroclear Automatic sheet system with handheld remote control - If purchased from Newton Trailers this system is upgraded to a 3 year warranty!
Toolbox
The Bathtub shape was Fruehauf's signature tipping trailer design in the 1970,80,90 and 2000. For many it is a lighter construction than the plank sided variant and that gives important payload benefits. The U shape corners give additional benefit to assist clean and even clearout of product when tipping. The side radius is very clever - it grades from 8 mm where it joins the floor to 5 mm where it joins the side sheet. I am sure others would argue but if it is a bathtub shape tipper you are after the Fruehauf is the best in class - with over 10,000 produced for the UK market and still counting.....
Fruehauf Tipping Trailers are UK constructed. They are currently by a very long way the UK's largest manufacturer of tipping trailers - with a total annual capacity of 800 tipping trailers. Fruehauf have a long history in the UK market and are to the go to product for payload, quality and performance.
Fruehauf Bulker for Sale; Fruehauf tipping trailer for sale; Fruehauf tipper for sale
New Fruehauf Aggregate for Sale; New Fruehauf Halfpipe Trailer for Sale
*this estimator is not an offer to finance
Stock No. | SN17627 |
---|---|
Type | Aggregate Tipping Trailer |
Chassis | Fruehauf |
Body | Fruehauf |
Year | 2019 |
MOT | 07/2023 C511586 |
Documents | ![]() |
eCO2 | 60000kg |
---|---|
Confidence | 1 (low) |
Checked | 16/11/2022 |
Weight | 5960kgs |
---|---|
Type | Steel Straight Frame |
Suspension | Air |
Brakes | 22.50" SAF SK7 Disc |
ABS/EBS | Knorr Bremse |
Wheels | Alloy |
Axles | 3x SAF |
Axle 1 | Lift |
Axle 2 | Fixed |
Axle 3 | Fixed |
Volume | 39 CuYds (29.8m3) |
---|---|
Door | Auto Inclined |
Catwalk | ![]() |
Chassis | RAL 7016 Grey |
Body | RAL 9003 White |
Cover | Tarmac Blue Dawbarn Hydraulic Roll Over Sheet Hydroclear |
