| Year | 2025 (new) |
|---|---|
| Chassis | STAS Konstructiewerkhuizen |
| Body | STAS Konstructiewerkhuizen |
| Volume | 43 CuYds (32.9m3) |
| Weight | 6300kgs |
| Stock No. | SN1518 |
|---|---|
| Type | Aggregate Tipping Trailer |
| Chassis | STAS |
| Body | STAS |
| Model | Buildstar Plank (Fe) TOTP |
| Year | 2025 (new) |
| Documents |  Parts Manual |
| eCO2 | 50000kg |
|---|---|
| Confidence | 2 (low) |
| Checked | 16/11/2024 |
| Weight | 6300kgs |
|---|---|
| Type | Steel Straight Frame |
| Suspension | Air |
| Brakes | 22.50" Knorr Bremse TC7-9 Disc |
| ABS/EBS | WABCO 2S/2M |
| Wheels | Alloy |
| Weigher | VWS |
| Axles | 3x JOST UK TE5/8 TC7-9 |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 43 CuYds (32.9m3) |
|---|---|
| Door | Auto Inclined |
| Chassis | DAF Grey C4P500 |
| Body | RAL9003 Signal White |
| Cover | Buildstar Plank (Fe) Dawbarn Hydraulic Roll Over Sheet Hydroclear |

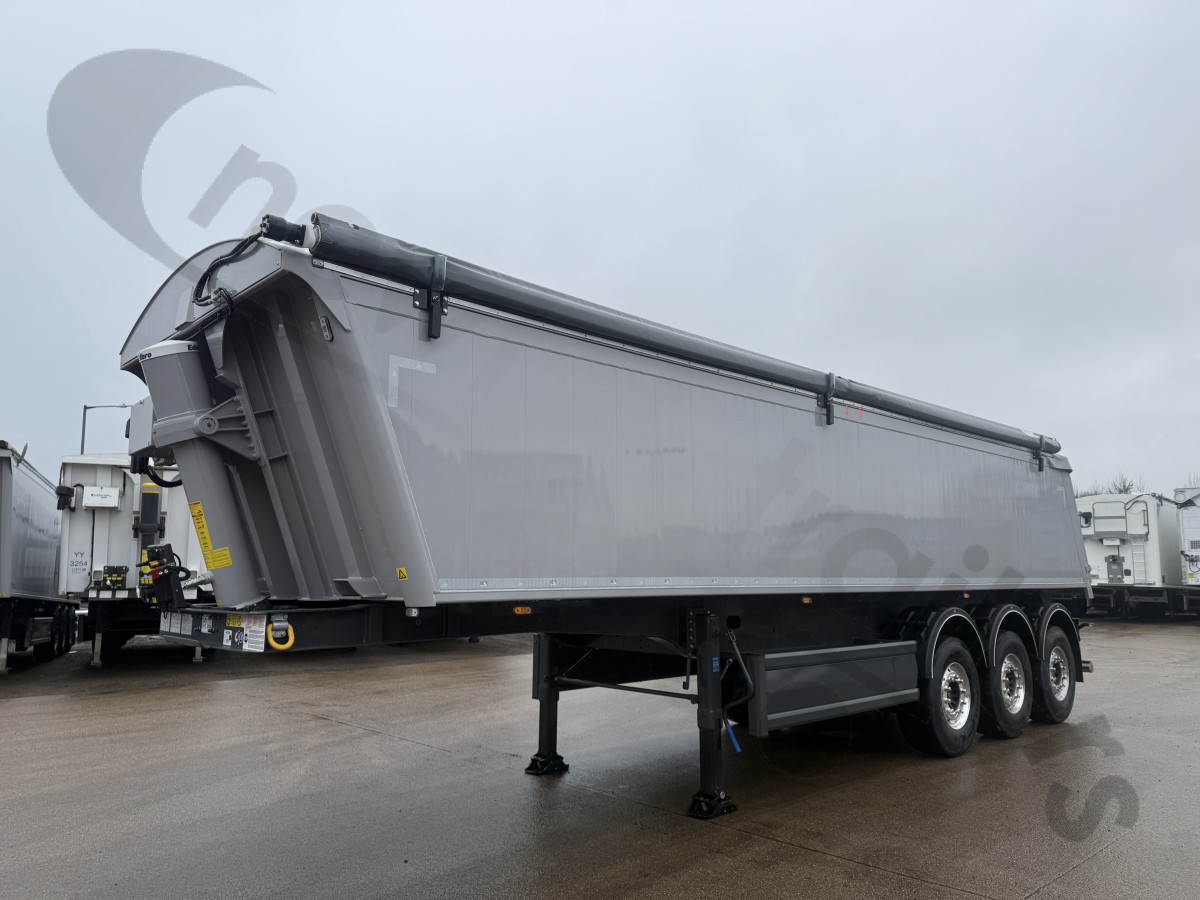

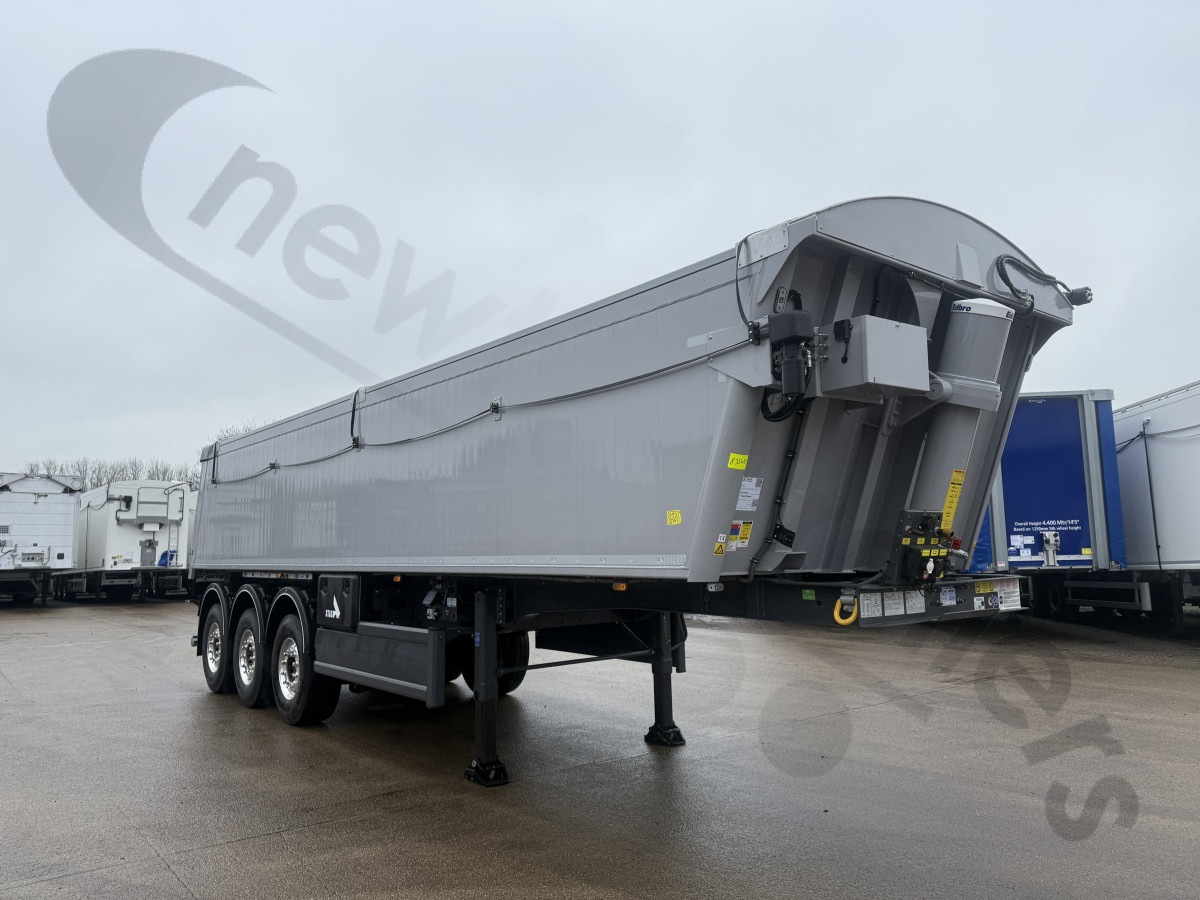

43 cuyd Plank sided alloy dual skin tipping trailer
Body made from Plank side contruction - double skin to hide impact of stones on the outer skin
Sidewall 4 mm plank panel with 2.5mm exterior
Floor 8 mm very hard aluminium Floor - hardest available at 110 Brinell
Tri-axle on air, front lift on Jost Axles and Disc brakes
Alcoa Alloy Wheels: Durabright Finish
Front ladder
Toolbox

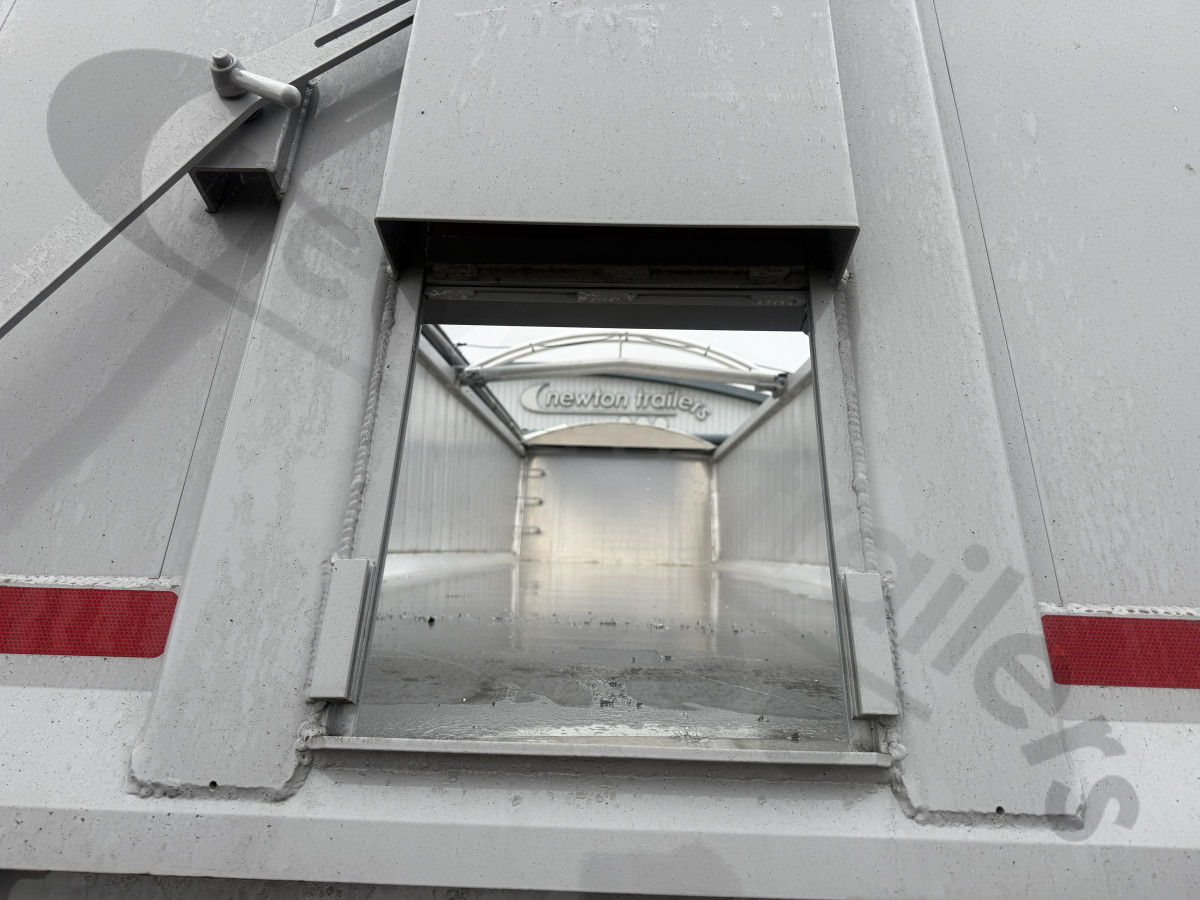

Double action hinged door inclined automatic rear door with sampling hatch
Super wide chassis for stability
Dawbarn Hydroclear automatic sheet system
VWS Weigher System
STAS Tipping Trailer For Sale; STAS Aggregate Trailer for Sale
*this estimator is not an offer to finance
43 cuyd Plank sided alloy dual skin tipping trailer
Body made from Plank side contruction - double skin to hide impact of stones on the outer skin
Sidewall 4 mm plank panel with 2.5mm exterior
Floor 8 mm very hard aluminium Floor - hardest available at 110 Brinell
Tri-axle on air, front lift on Jost Axles and Disc brakes
Alcoa Alloy Wheels: Durabright Finish
Front ladder
Toolbox
Double action hinged door inclined automatic rear door with sampling hatch
Super wide chassis for stability
Dawbarn Hydroclear automatic sheet system
VWS Weigher System
STAS Tipping Trailer For Sale; STAS Aggregate Trailer for Sale
*this estimator is not an offer to finance
| Stock No. | SN1518 |
|---|---|
| Type | Aggregate Tipping Trailer |
| Chassis | STAS |
| Body | STAS |
| Model | Buildstar Plank (Fe) TOTP |
| Year | 2025 (new) |
| Documents | Parts Manual |
| eCO2 | 50000kg |
|---|---|
| Confidence | 2 (low) |
| Checked | 16/11/2024 |
| Weight | 6300kgs |
|---|---|
| Type | Steel Straight Frame |
| Suspension | Air |
| Brakes | 22.50" Knorr Bremse TC7-9 Disc |
| ABS/EBS | WABCO 2S/2M |
| Wheels | Alloy |
| Weigher | VWS |
| Axles | 3x JOST UK TE5/8 TC7-9 |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 43 CuYds (32.9m3) |
|---|---|
| Door | Auto Inclined |
| Chassis | DAF Grey C4P500 |
| Body | RAL9003 Signal White |
| Cover | Buildstar Plank (Fe) Dawbarn Hydraulic Roll Over Sheet Hydroclear |
