| Year | 2022 |
|---|---|
| Chassis | Knapen Trailers BV. |
| Body | Knapen Trailers BV. |
| Volume | 140 CuYds (107.0m3) |
| Weight | 8100kgs |
| Stock No. | SN19000 |
|---|---|

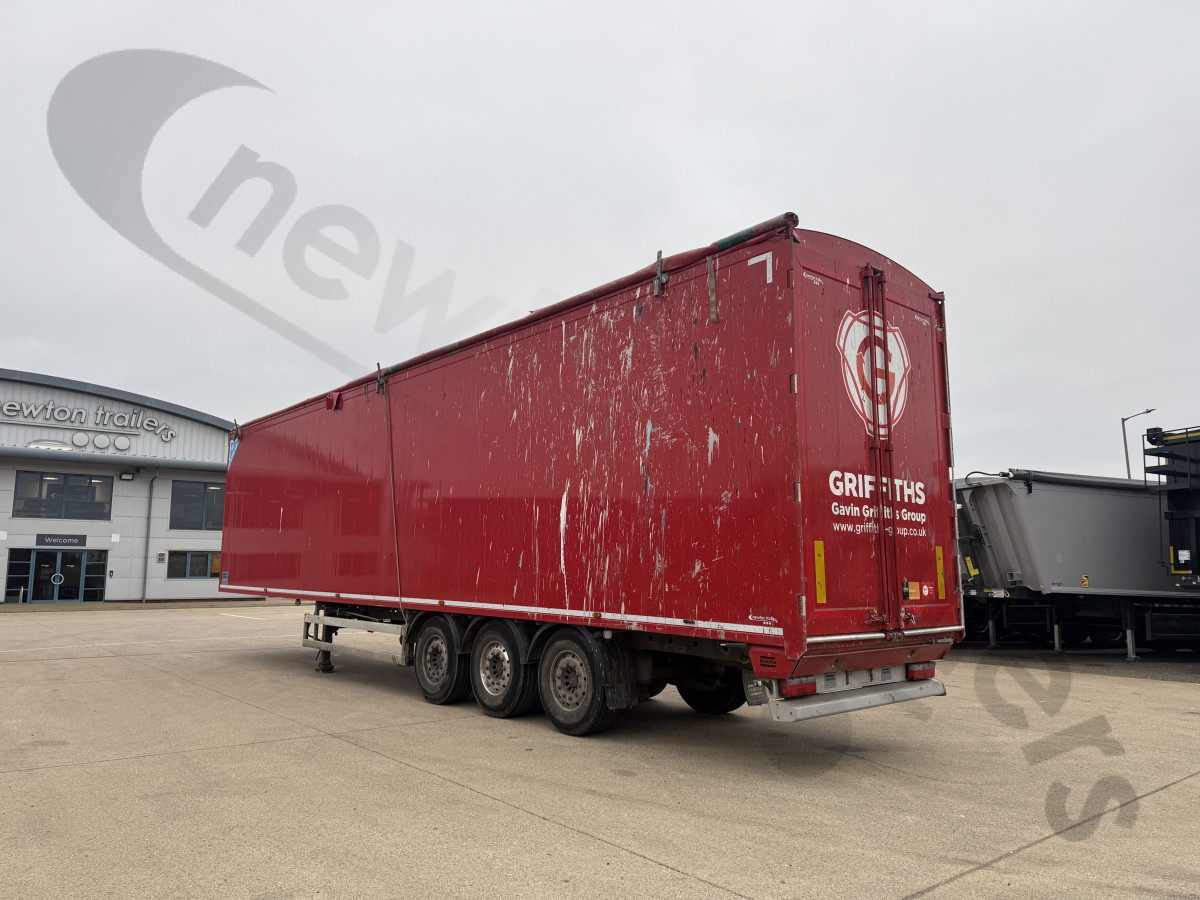

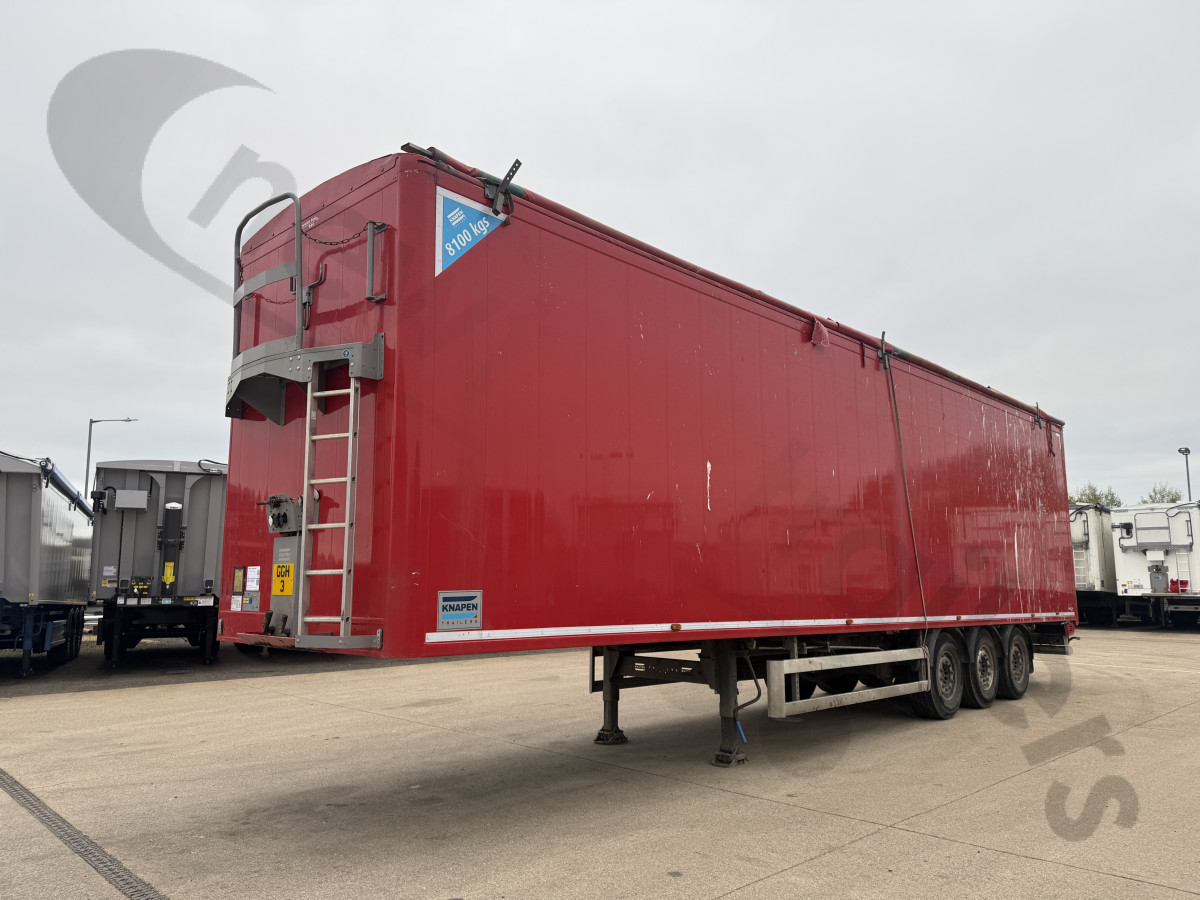

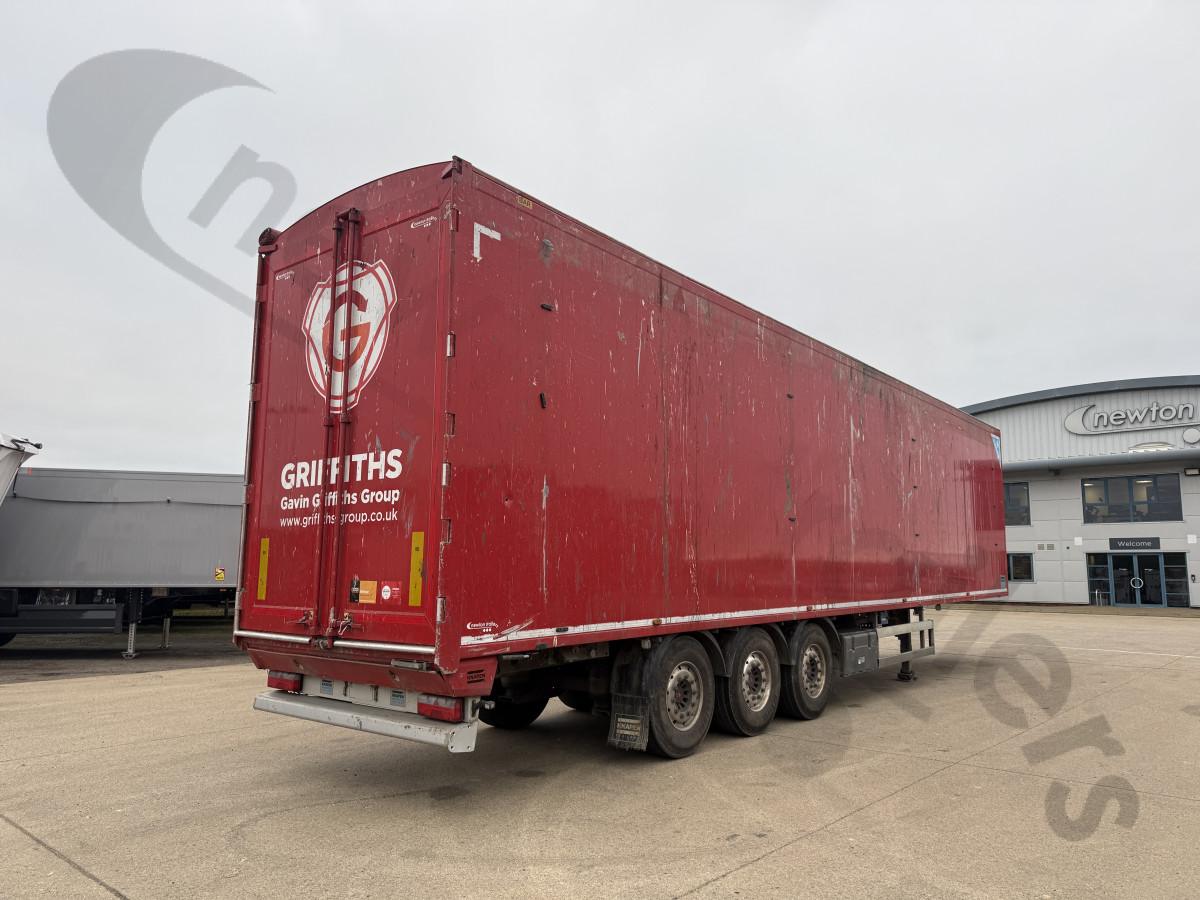

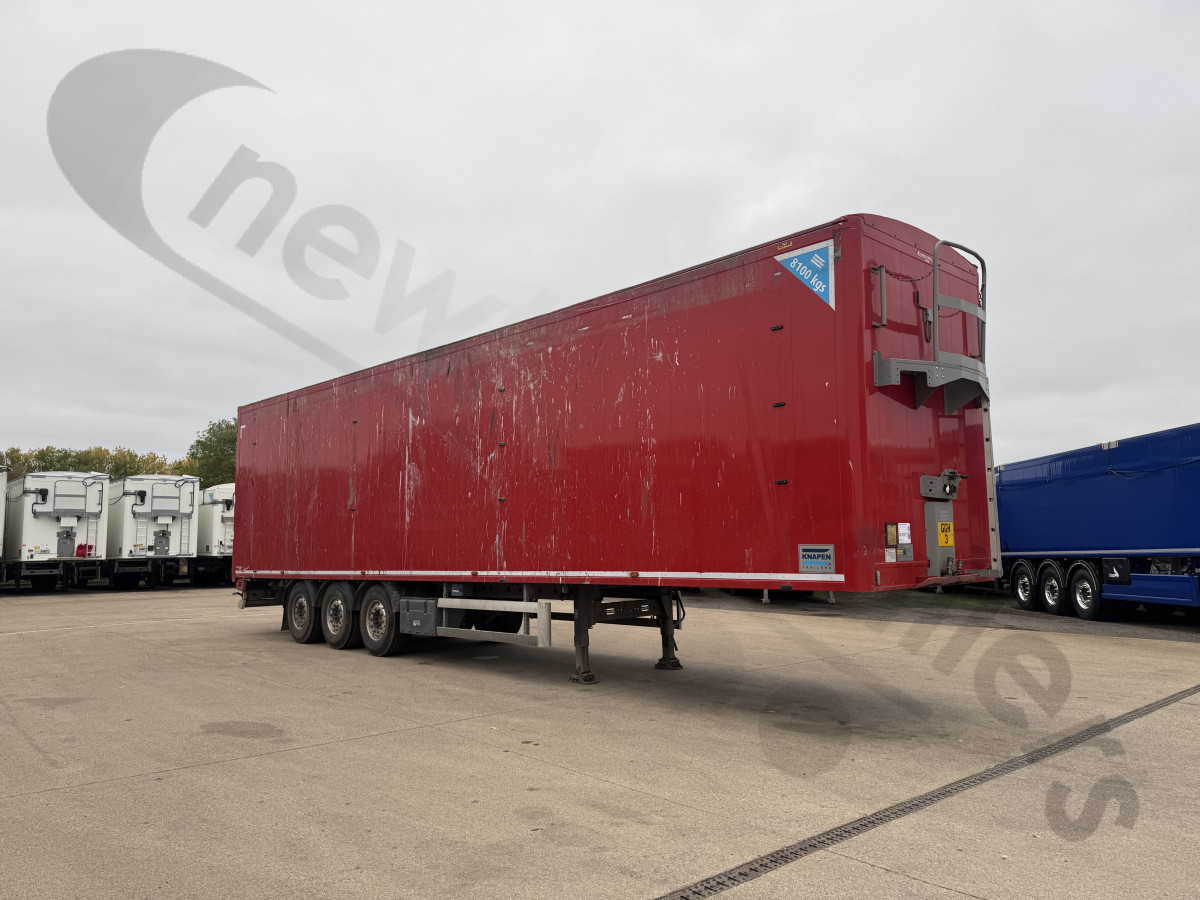

| Type | Biomass Moving Floor Trailer |
| Chassis | Knapen |
| Body | Knapen |
| Model | K100 |
| Year | 2022 |
| MOT | 11/2026 C566787 |
| Documents |  Parts Manual |
| eCO2 | 75000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 8100kgs |
|---|---|
| Type | Alloy Sub-Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SBS Disc |
| ABS/EBS | WABCO EBS-E |
| Wheels | Alloy |
| Axles | 3x SAF BI9 22S SBS |
| Volume | 140 CuYds (107.0m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Floor System | Cargo CF500SL-C |
| Floor Slats | 21x 10mm Smooth |
| Floor Parts | |
| Headboard | Moving |
| Chassis | Galvanised |
| Body | Red RAL 3002 |
| Cover | Red RAL 3002 Dawbarn Hydraulic Roll Over Sheet Hydroclear |
140 cuyd on a K100 steel galvanised chassis
Brand new automatic roll over sheet system fitted
Tri axle on air
SAF off-road axles and SAF disc brakes

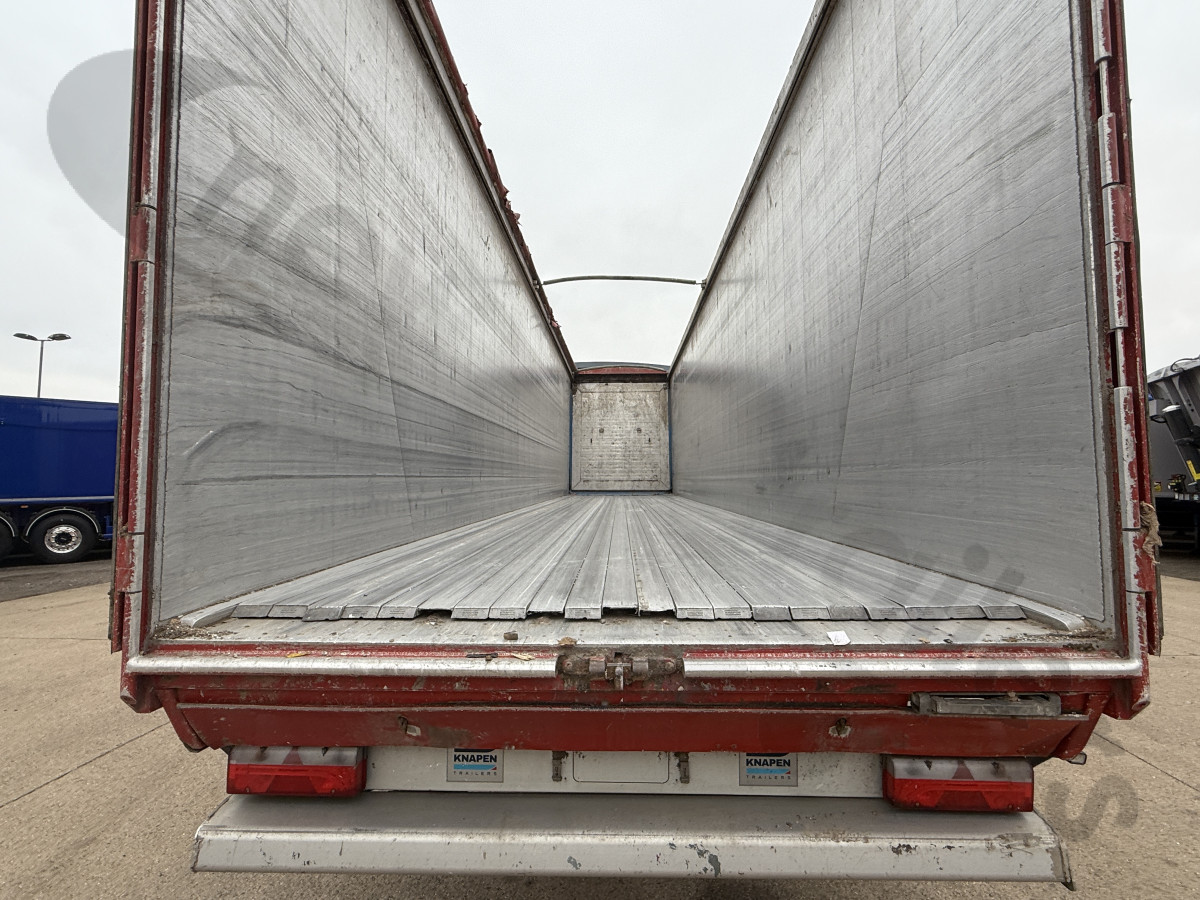

21 plank x 10mm Floor which is the stronger aluminium flat Cargo Floor system, compared to the 6mm version

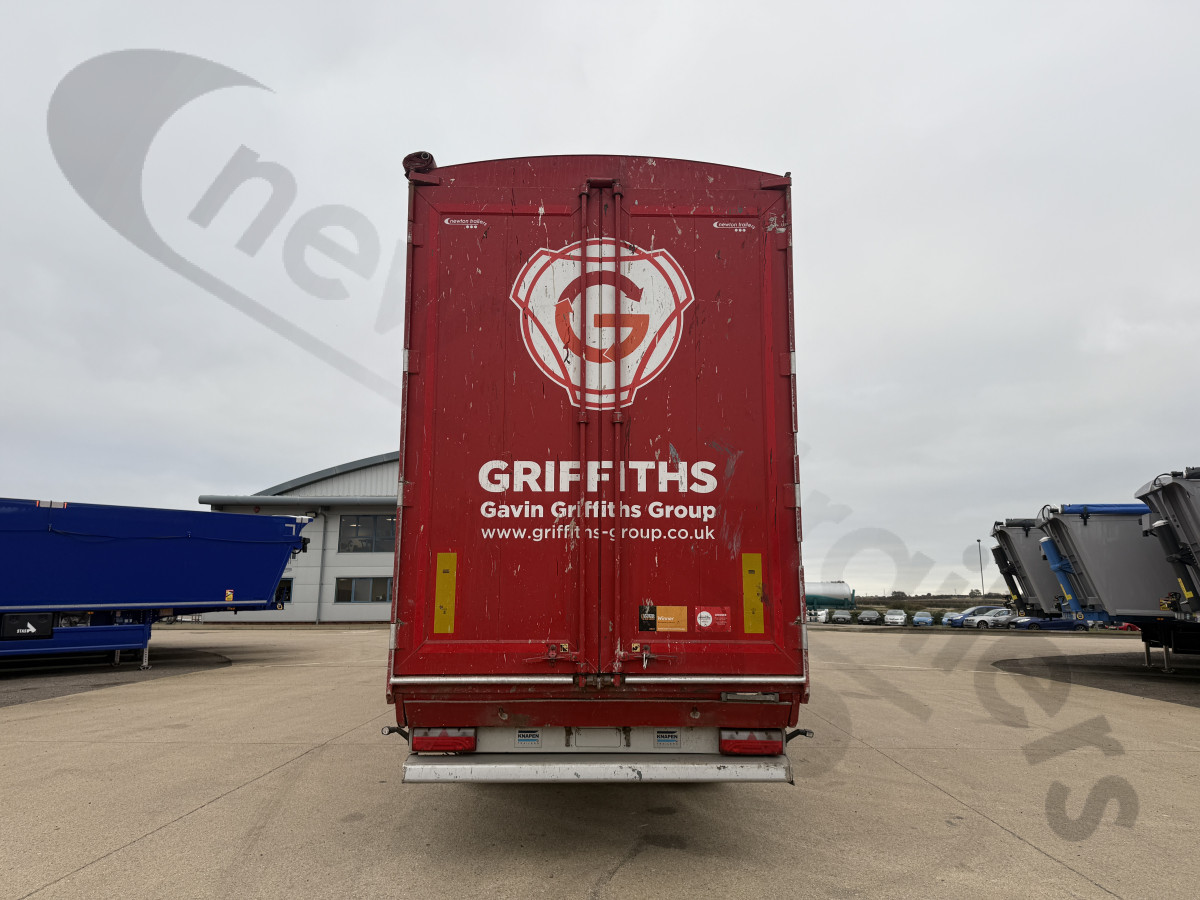

50:50 barn doors with air operated rear door safety lock
2000x1000 x 3mm internal wear plates for extra resistance
Full robot side welding, door welding and headboard welding for perfection every time
Conical body shape gives a better discharge
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
4 extra cross members at rear of trailer for forklift loading
Integrated side marker lights
Extra pair of working lights by the landing legs and behind the rear axle
Moving internal headboard
Side impact bars and rear underrun bar
Catwalk and toolbox
