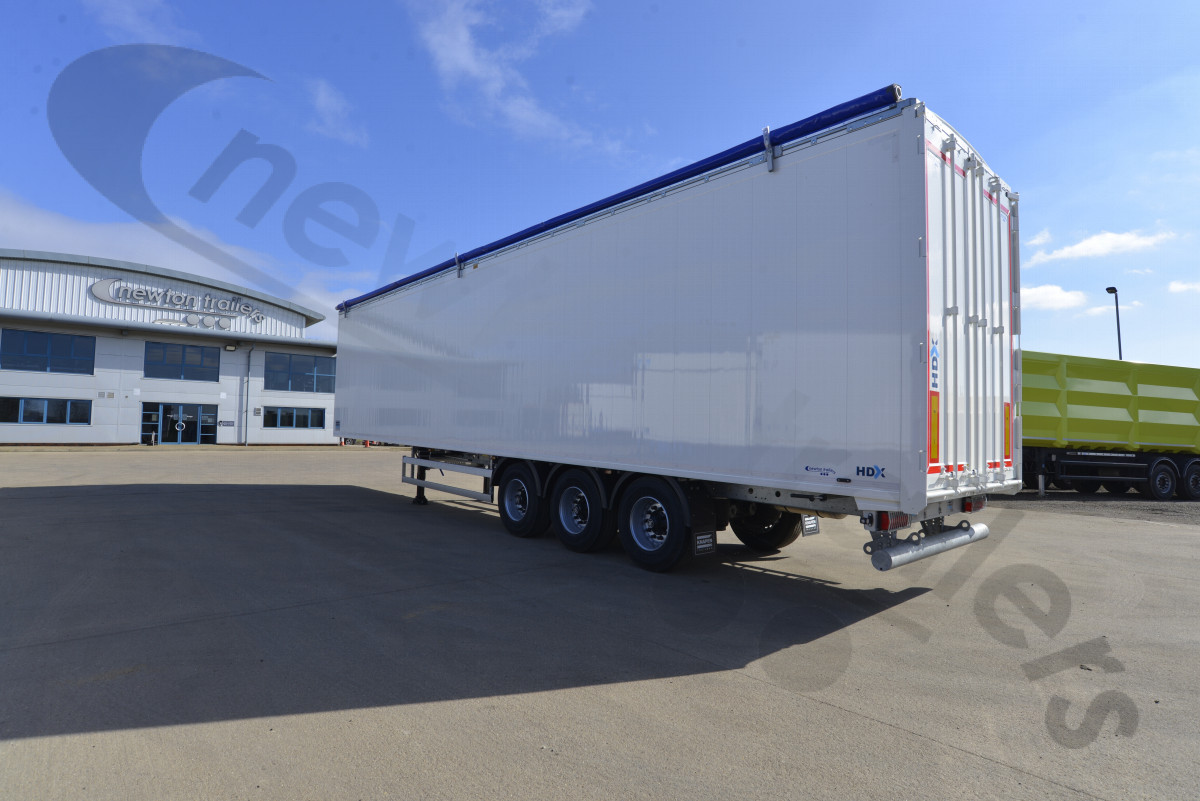

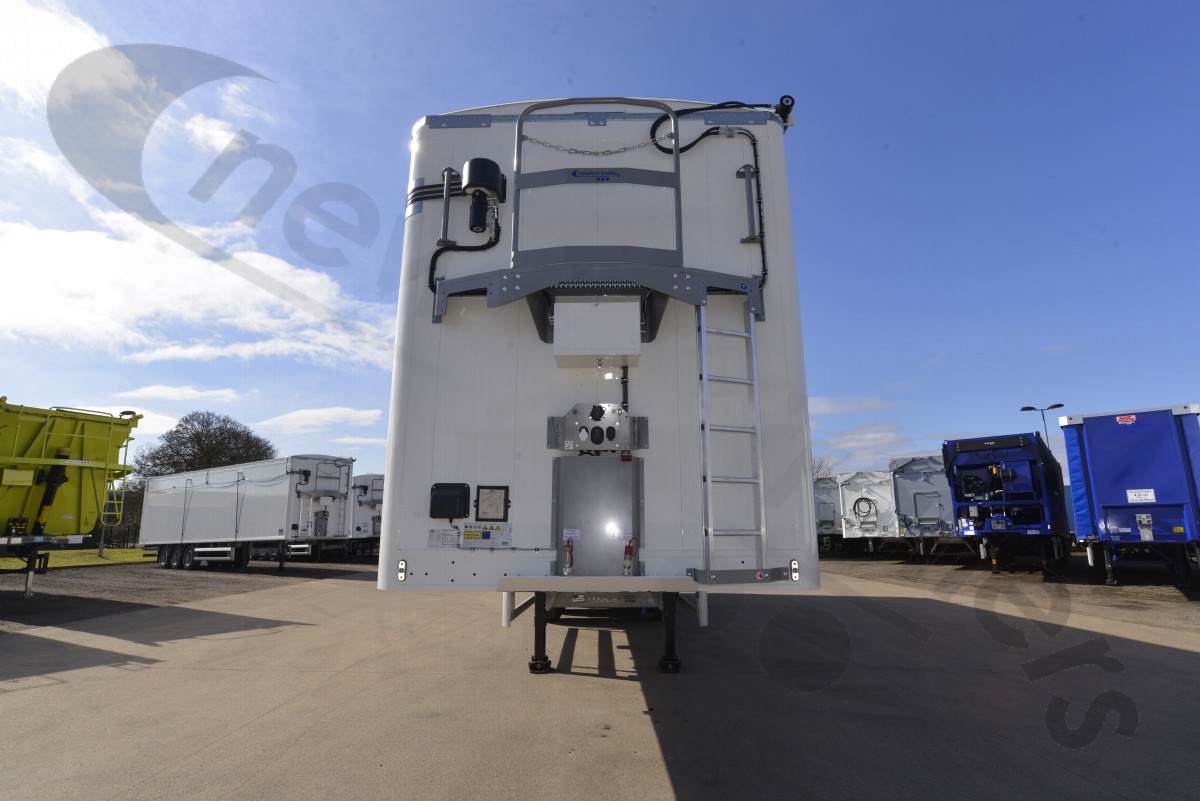

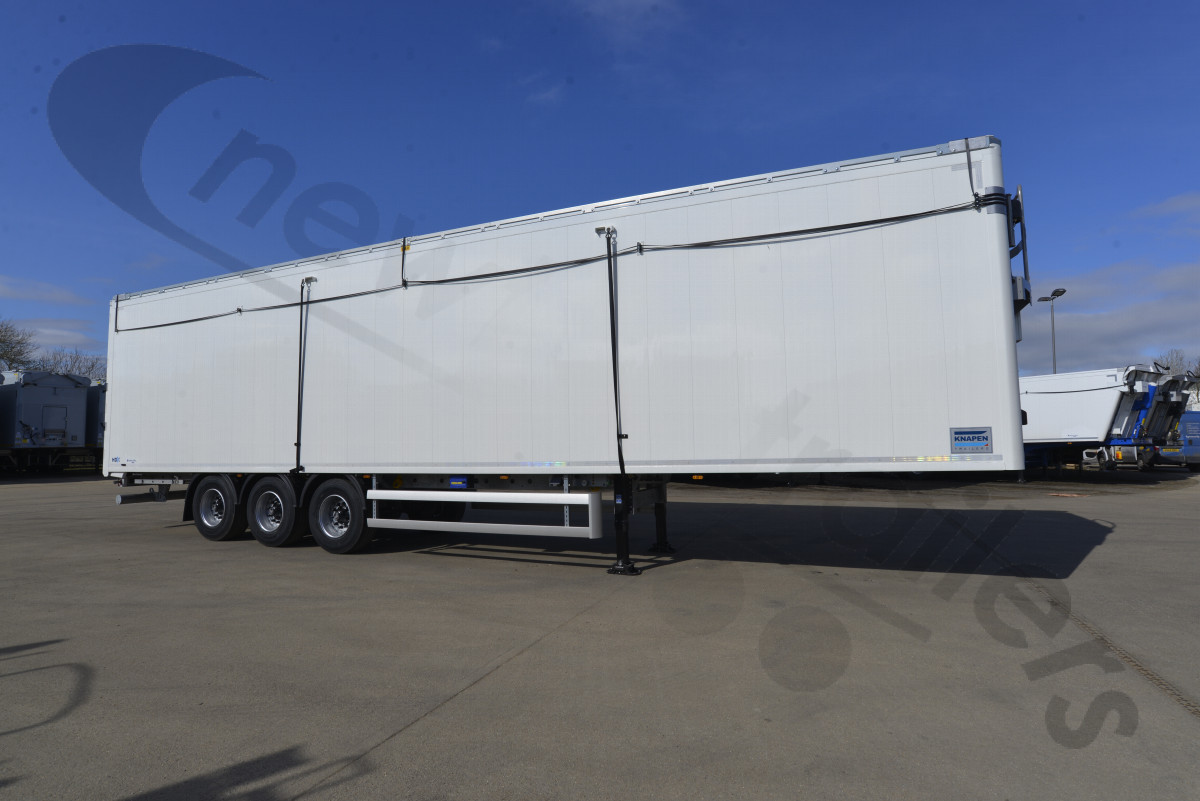

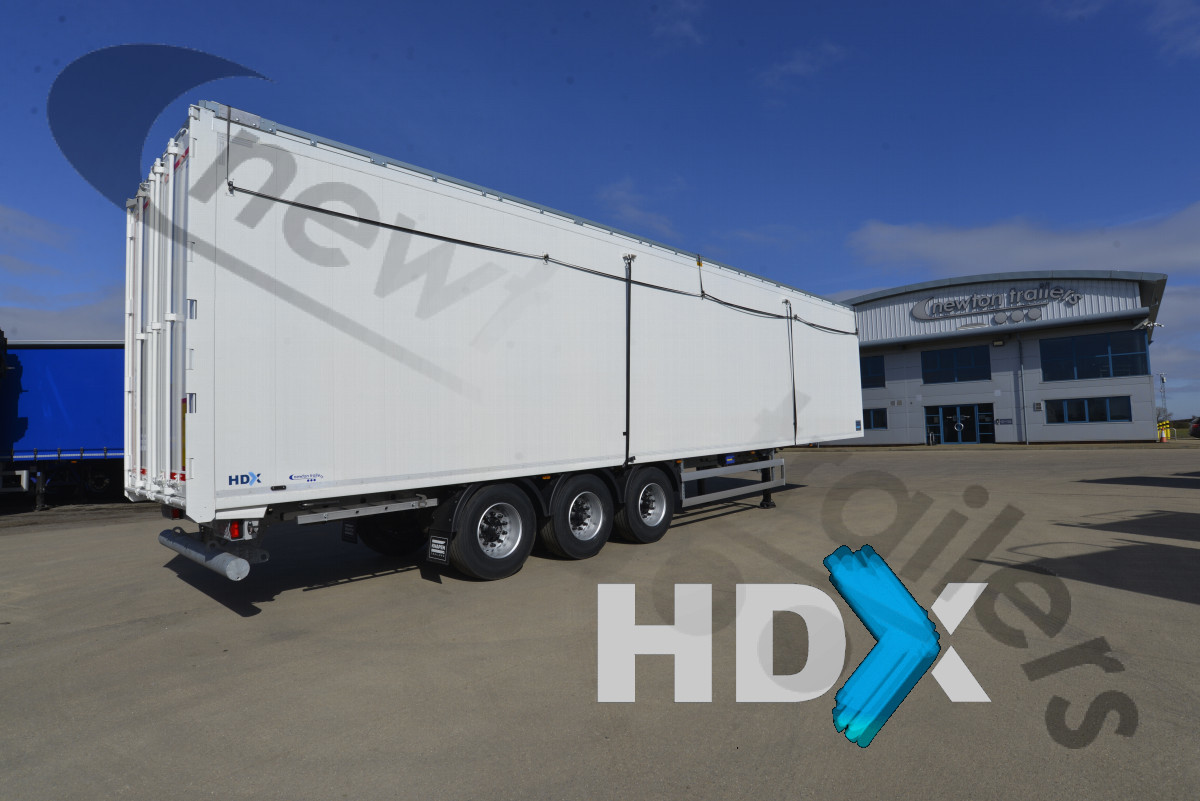

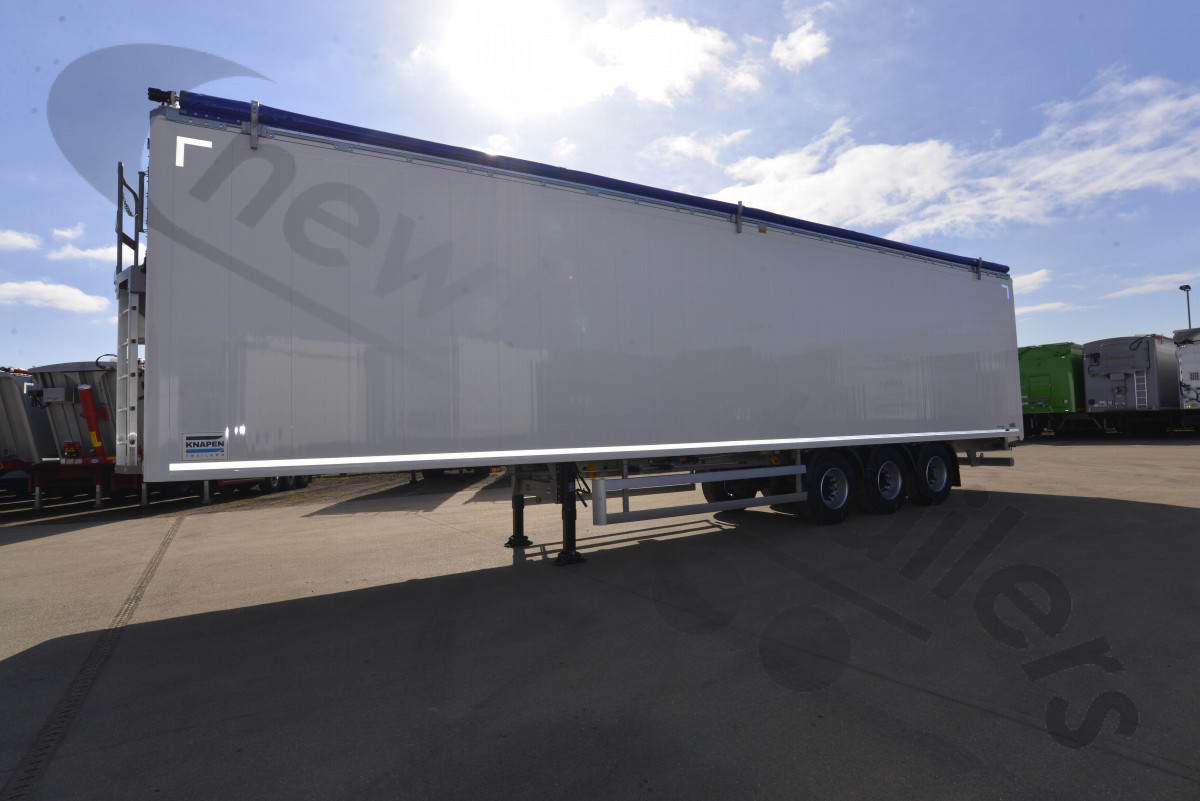

Knapen Heavy Duty Waste and Landfill XHDI Waste Moving Floor Trailer

You can choose a net, automatic sheet or manual sheet on this trailer. Which ever one you prefer!

This is our Heavy Duty Waste moving floor product. Floors are definitely a case of 'Horses for Courses'. Choose the right spec trailer for the work you do. We have optimised this Heavy Duty Waste and Landfill trailer to take abuse at the heavier end of the market. It has features that move it up from a RECYCLING SPECIFICATION  into the more difficult products you might carry. This trailer is built to withstand heavier use - the chassis and sidewall construction is proven in the Eastern European waste sector at 55 tonnes. Knapen - who make over 30 trailers per week are the largest constructor in Europe. You can learn things over 30 years in Latvia, Poland, Russia etc. Bad roads and bad use. The floor is the 15 plank XHDI - Extra heavy duty Impact system - will take larger lumps - more abrasive materials - larger wood items, black bag and household recycling products. One of the sections of the trailers that take abuse is the top rail. This trailer has a large steel box section sitting on top of all four sides of the box. This is bolted on and can take those knocks that inevitably come from loading shovels. It will dent up and mark but it can be easily cut out and replaced without breaking down the trailer itself. If 130 cuyd is not enough for you we can build 140 cuyd and 150 cuyd variants to this. Too heavy for you then choose the BIOMASS spec Knapen.

127 cuyd 4.2m over the side
K100 Baltic Chassis (18 tonne pin construction). This trailer was originally designed to cope with the heavy use and poor roads of the Baltic states. The kinpin has steel construction and extra bearers compared to the BIOMASS and Standard floors.

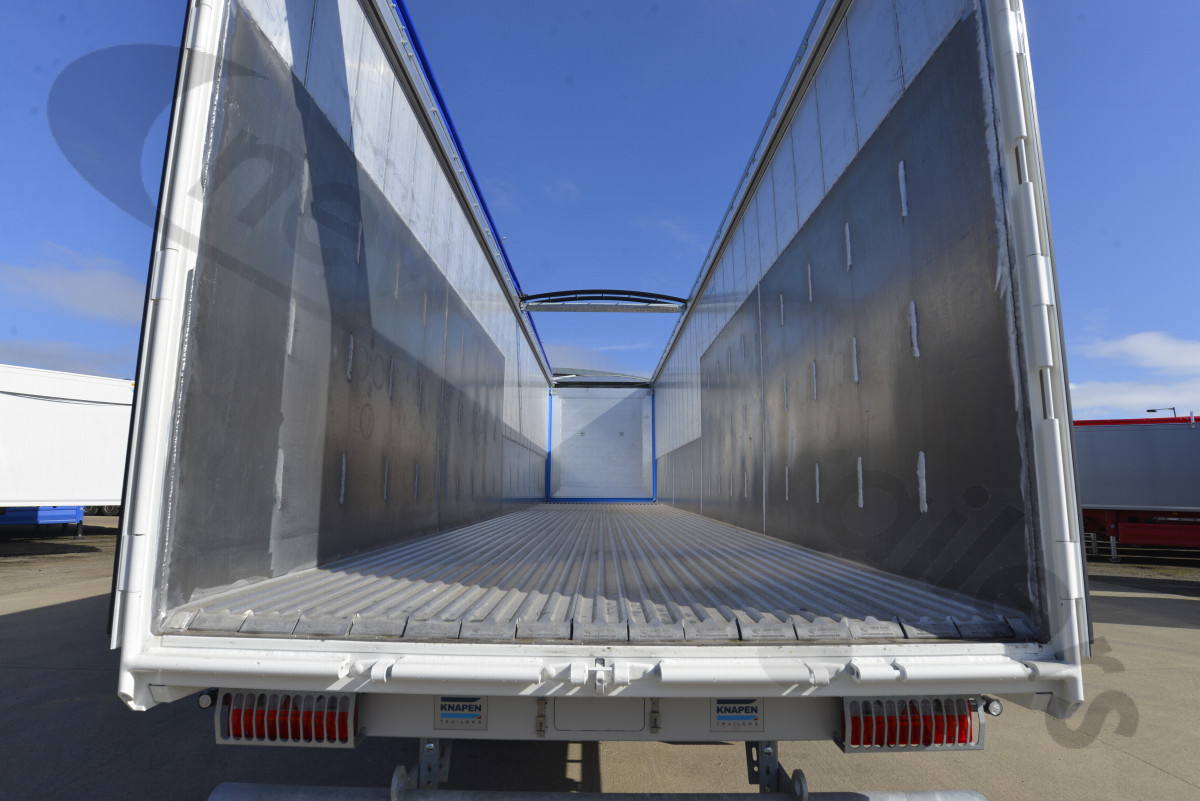

Cargo Floor 15 plank system
Extra Heavy Duty Impact plank system 10/22 mm impact floor
Full length twist bearers on each cross bearer to give maximum floor support for impact and wear.
Thicker than standard cross members full length
6 more cross members than standard
Heavy duty UK steel lead up plate
BPW Drum brake Airlight HD
Towing eye in rear end
Galvanised chassis with 10 year anti corrosion warranty
4mm internal wear plates 6m x 2m plus 9m x 1m covering full internal sidewall
Front catwalk
Steel capped top rails 600 mm x 600 mm x 6 mm steel box capping both sides, front and rear attached by tabs and bolts.
Extra heavy duty roof supports
Moving internal headboard
Towing eye in case you have been a bit cheeky
Choice of roof systems: Double manual or automatic net systems or manual or automatic sheet systems
Rear door 50 50 split with double locks per door (hydraulic door variant available to order)
Automatic safety door lock.

Knapen Waste Specification Moving Floor
