THE KING OF LANDFILL & HEAVY WASTE
Unique patented design and construction methods combine to give superior strength at very low weight with the lowest possible whole life cost
124 cuyd - Waste specification
EXTRA Heavy duty top rail with ZERO TIE BARS - One of the best reasons to buy a Titan Moving Floor, no other manufacturer can produce an aluminium upper-structure strong enough to do this!
Patented longitudinal panel design allowing for optimised sidewall construction
Super Heavy Duty side wall panels (x2) at the base with Extra Heavy Duty Panels above
Side wall fully seam welded on both the OUTSIDE and the INSIDE - Again unique to Titan giving incredible sidewall strength
Keith Running Floor II system - the original high speed floor - this can push waste out twice as fast as other floor manufacturers

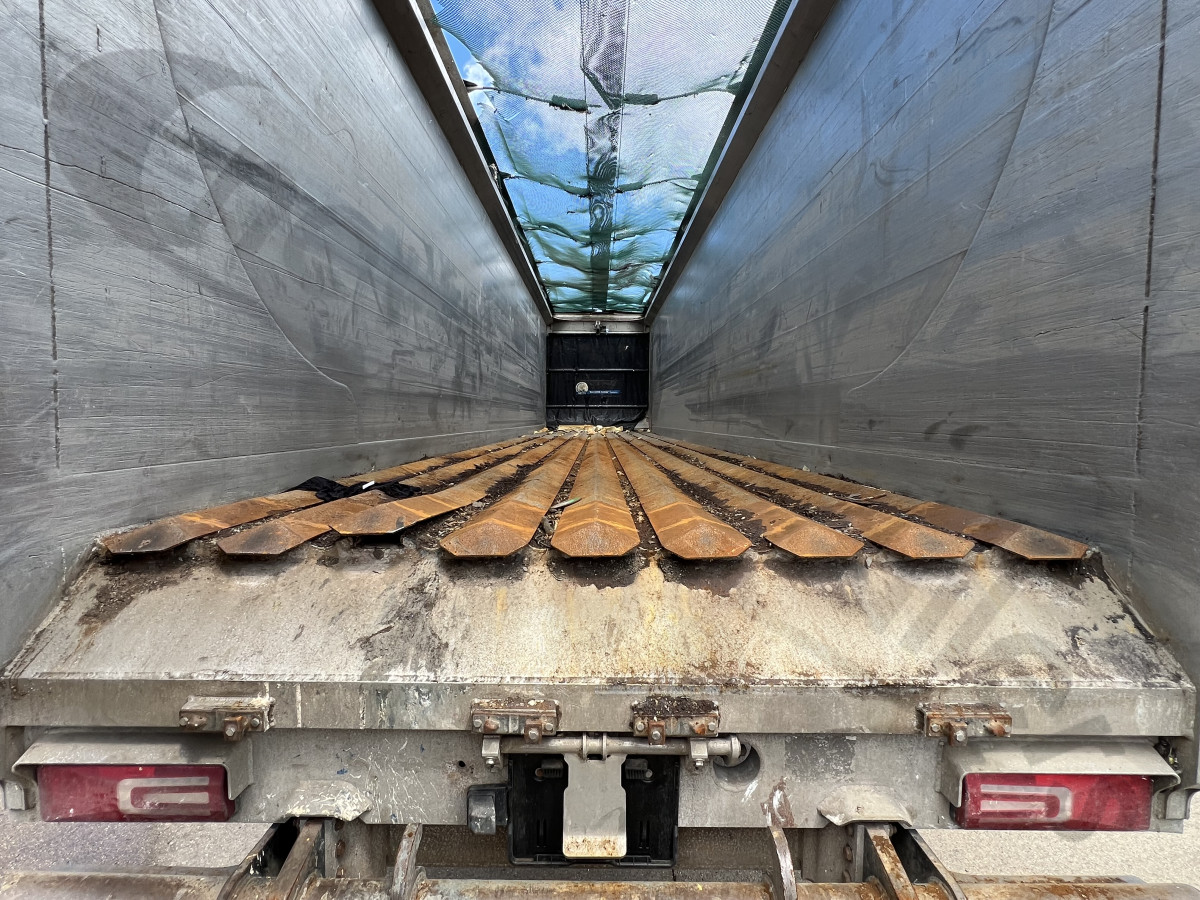

Keith V9 Steel Hardox plank system - The strongest floor in the market!
50:50 barn doors with automatic door safety lock at base
TITAN Automatic Net System - no one even gets close to the capability and reliability of this net system
Front mesh window
EXPLOSION WELDED STEEL TO ALUMINIUM for the rubbing plate and neck cross-members - generates massive strength and weight savings - Construction industry technology used by a trailer manufacturer - AMAZING!
Titan Trailer for Sale; Titan Heavy Waste Specification For Sale
*this estimator is not an offer to finance
| Stock No. | SN19508 |
|---|---|
| Type | Heavy Waste & Landfill Moving Floor Trailer |
| Chassis | Titan UK |
| Body | Titan UK |
| Model | CB V9 Steel Unpainted |
| Year | 2022 |
| MOT | 11/2026 C583791 |
| Documents |
| eCO2 | 90000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 9000kgs |
|---|---|
| Type | Alloy Sub-Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SK7 Disc |
| ABS/EBS | ZF CV Distribution UK Ltd EBS-E |
| Wheels | Alloy |
| Axles | 3x SAF B9 22K01 |
| Volume | 124 CuYds (94.8m3) |
|---|---|
| Door | Barn Door 50:50 |
| Floor System | Keith Running Floor 2 |
| Floor Slats | 9x 4mm V Steel |
| Floor Parts | 5661701 |
| Chassis | Natural |
| Body | CB Unpainted |
| Cover | Net Titan UK Hydraulic Net System 50:50 Split |
