| Year | 2016 |
|---|---|
| Chassis | Knapen Trailers BV. |
| Body | Knapen Trailers BV. |
| Volume | 127 CuYds (97.1m3) |
| Weight | 8750kgs |
| Stock No. | SN12355 |
|---|---|
| Type | Recycling Moving Floor Trailer |
| Chassis | Knapen |
| Body | Knapen |
| Year | 2016 |
| MOT | 10/2026 C441968 |
| Documents |  Parts Manual |
| eCO2 | 85000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 8750kgs |
|---|---|
| Type | Steel Sub-Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SBS Disc |
| ABS/EBS | WABCO EBS-E |
| Wheels | Steel |
| Axles | 3x SAF BI9 22S SBS |
| Volume | 127 CuYds (97.1m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Floor System | Cargo CF500SL-C |
| Floor Slats | 15x 21mm XHDI |
| Floor Parts | |
| Headboard | Moving |
| Chassis | Galvanised |
| Body | RAL 9006 Silver |
| Cover | Brunswick Green Dawbarn Hydraulic Roll Over Sheet Hydroclear |
127 cuyd on a K100 steel galvanised chassis
Tri axle on air
SAF off-road axles and Knorr Bremse disc brakes
Cargo Floor 15 plank XHDI (Extra Heavy Duty Impact) system. 10mm - 22mm of aluminium on the planks.
Dawbarn Hydroclear automatic sheet system - 900g sheet!
50:50 Over centre locking barn doors with air operated rear door safety lock
Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Full robot side welding, door welding and headboard welding for perfection every time
Conical body shape gives a better discharge
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
4 extra cross members at rear of trailer for forklift loading
UK reinforced lead up plate and a heavy duty king pin, 18 tonne capability (Knapen being Dutch are used to 55 tonne total weight)
Stainless steel wear plate in the rear of the trailer

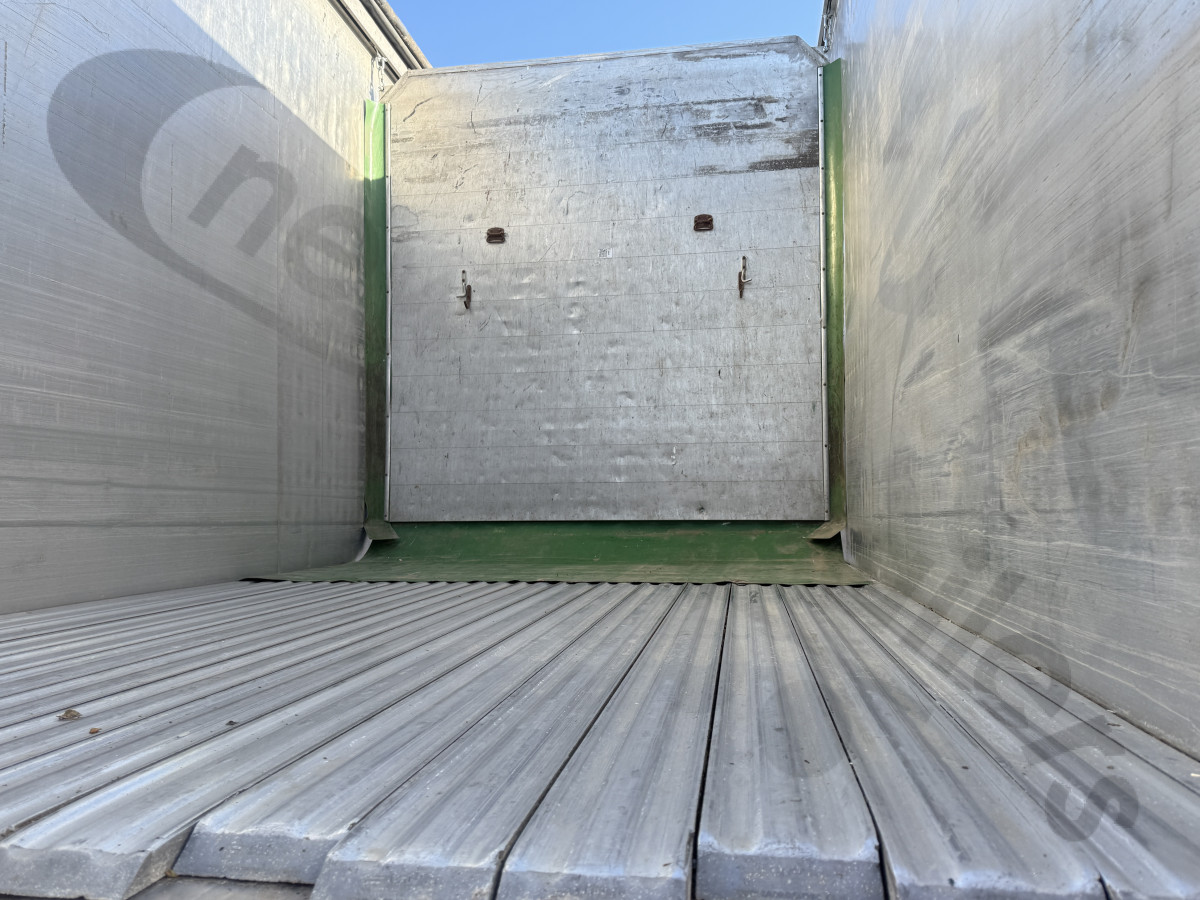

Moving internal headboard
Wander lead remote control
Side impact bars and rear underrun bar with two towing eyes
Catwalk and toolbox
*this estimator is not an offer to finance
127 cuyd on a K100 steel galvanised chassis
Tri axle on air
SAF off-road axles and Knorr Bremse disc brakes
Cargo Floor 15 plank XHDI (Extra Heavy Duty Impact) system. 10mm - 22mm of aluminium on the planks.
Dawbarn Hydroclear automatic sheet system - 900g sheet!
50:50 Over centre locking barn doors with air operated rear door safety lock
Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Full robot side welding, door welding and headboard welding for perfection every time
Conical body shape gives a better discharge
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
4 extra cross members at rear of trailer for forklift loading
UK reinforced lead up plate and a heavy duty king pin, 18 tonne capability (Knapen being Dutch are used to 55 tonne total weight)
Stainless steel wear plate in the rear of the trailer
Moving internal headboard
Wander lead remote control
Side impact bars and rear underrun bar with two towing eyes
Catwalk and toolbox
