| Year | 2025 (new) |
|---|---|
| Chassis | Knapen Trailers BV. |
| Body | Knapen Trailers BV. |
| Volume | 117 CuYds (89.5m3) |
| Weight | 9294kgs |
| Stock No. | SN18381 |
|---|---|
| Type | Side Door Moving Floor |
| Chassis | Knapen |
| Body | Knapen |
| Model | K604 Exside Pillarless |
| Year | 2025 (new) |
| MOT | C650431 |
| Documents |  Parts Manual |
| eCO2 | 85000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 9294kgs |
|---|---|
| Type | Steel Straight Frame |
| Suspension | Air |
| Brakes | 0.01" BPW Drum |
| ABS/EBS | WABCO EBS-E |
| Wheels | Steel |
| Axles | 3x BPW Eco Drum |
| Volume | 117 CuYds (89.5m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Floor System | Cargo CF500 |
| Floor Slats | 21x 10mm Smooth |
| Floor Parts | |
| Headboard | Moving |
| Chassis | Red RAL 3002 |
| Body | Blue RAL 5010 |
| Cover | Red RAL 3002 Dawbarn Manual Roll Over Sheet Domed |
117cuyd alloy body on a full length steel chassis.
BPW Axles and Drum brakes

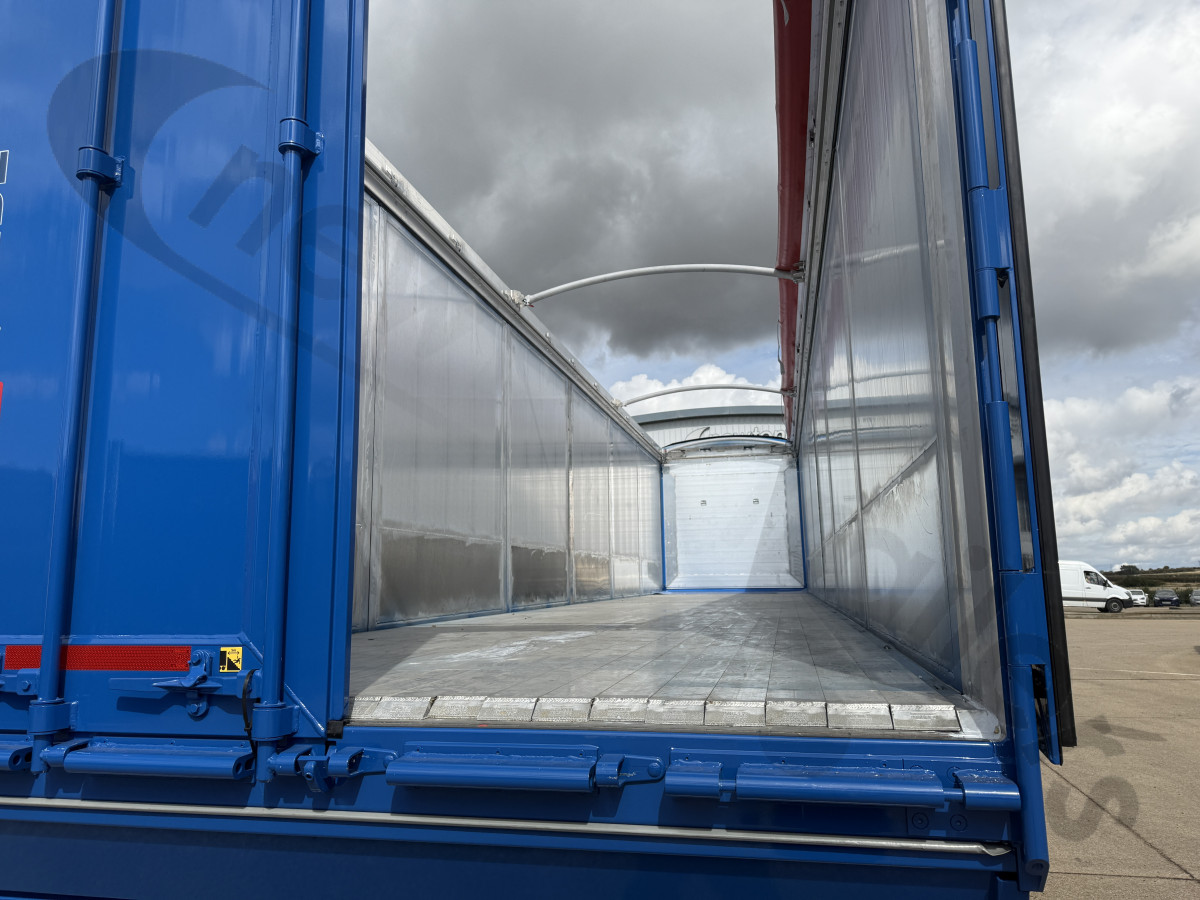

Body Opens both sides full length. There is a movable sliding post.
21 plank x 10 mm Floor
Internal lashing rings
Knapen flat automatic sheet system
50:50 barn doors with air operated rear door safety lock
Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Full robot side welding, door welding and headboard welding for perfection every time
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
Moving internal headboard
2 year paint warranty!
Wander lead remote control
Side impact bars and rear underrun bar
Toolbox
*this estimator is not an offer to finance
117cuyd alloy body on a full length steel chassis.
BPW Axles and Drum brakes
Body Opens both sides full length. There is a movable sliding post.
21 plank x 10 mm Floor
Internal lashing rings
Knapen flat automatic sheet system
50:50 barn doors with air operated rear door safety lock
Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Full robot side welding, door welding and headboard welding for perfection every time
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
Moving internal headboard
2 year paint warranty!
Wander lead remote control
Side impact bars and rear underrun bar
Toolbox
*this estimator is not an offer to finance
| Stock No. | SN18381 |
|---|---|
| Type | Side Door Moving Floor |
| Chassis | Knapen |
| Body | Knapen |
| Model | K604 Exside Pillarless |
| Year | 2025 (new) |
| MOT | C650431 |
| Documents | Parts Manual |
| eCO2 | 85000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 9294kgs |
|---|---|
| Type | Steel Straight Frame |
| Suspension | Air |
| Brakes | 0.01" BPW Drum |
| ABS/EBS | WABCO EBS-E |
| Wheels | Steel |
| Axles | 3x BPW Eco Drum |
| Volume | 117 CuYds (89.5m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk | |
| Floor System | Cargo CF500 |
| Floor Slats | 21x 10mm Smooth |
| Floor Parts | |
| Headboard | Moving |
| Chassis | Red RAL 3002 |
| Body | Blue RAL 5010 |
| Cover | Red RAL 3002 Dawbarn Manual Roll Over Sheet Domed |
