| Year | 2018 |
|---|---|
| Chassis | Luck Fahrzeugbau |
| Body | Luck Fahrzeugbau |
| Volume | 76 CuYds (58.1m3) |
| Weight | 8200kgs |
| Stock No. | SN13565 |
|---|---|
| Type | Steel Body Tipping Trailer |
| Chassis | Lück |
| Body | Lück |
| Year | 2018 |
| MOT | 11/2026 C491592 |
| Documents |  Parts Manual |
| eCO2 | 55000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 8200kgs |
|---|---|
| Type | Steel Step Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SBS Disc |
| ABS/EBS | WABCO EBS-E |
| Wheels | Steel |
| Weigher | PM OnBoard |
| Axles | 3x SAF BI9 22S SBS |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 76 CuYds (58.1m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Chassis | Red RAL 3002 |
| Body | Blue RAL5005 |
| Cover | Net Dawbarn Manual Net System 50:50 Split |

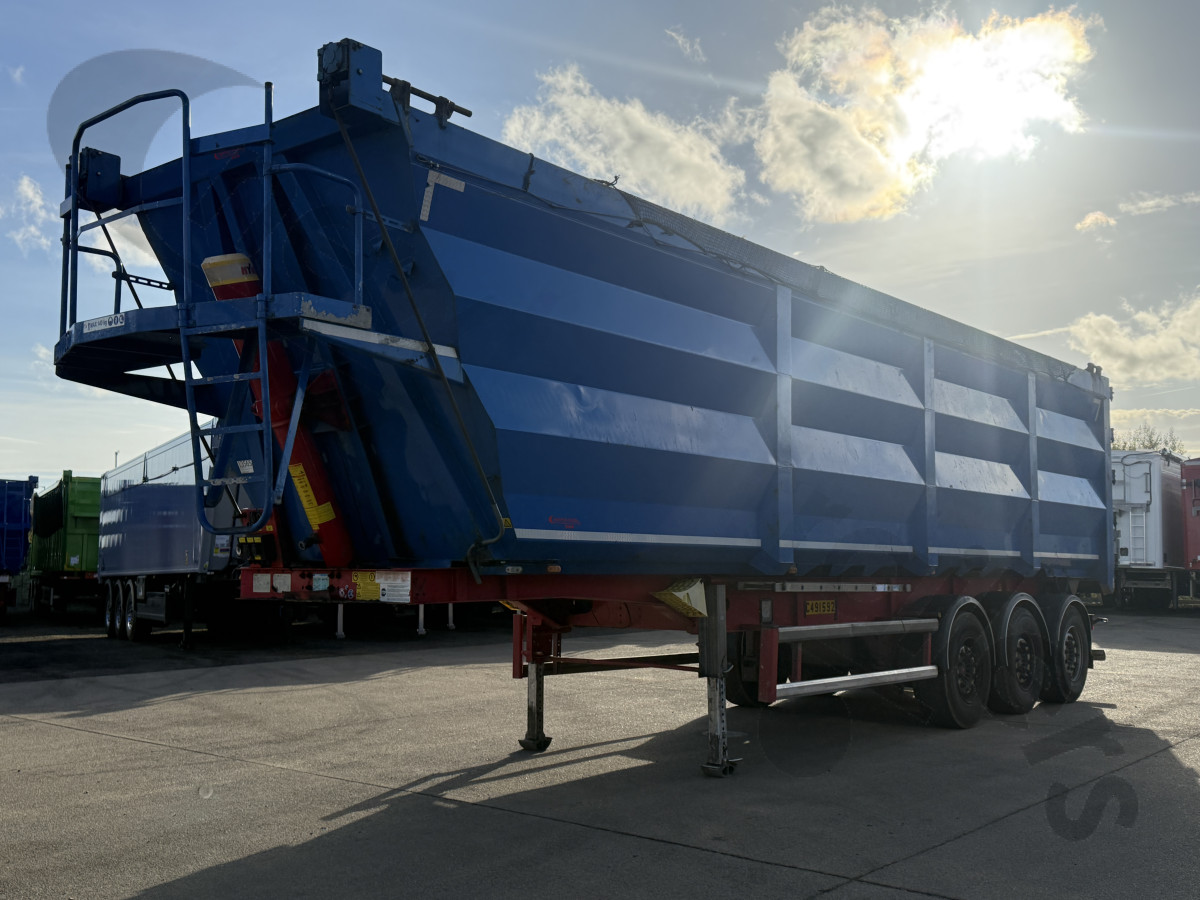

Newton Steel Tipping Trailer - The Lightest Steel Body Tipping Trailer in the UK Market. 76 cuyd. 5 mm Hardox Floor - single piece full length - no joins for strength.
Newton Steel Tipping Trailer - The Lightest Steel Body Tipping Trailer in the UK Market
76 cuyd

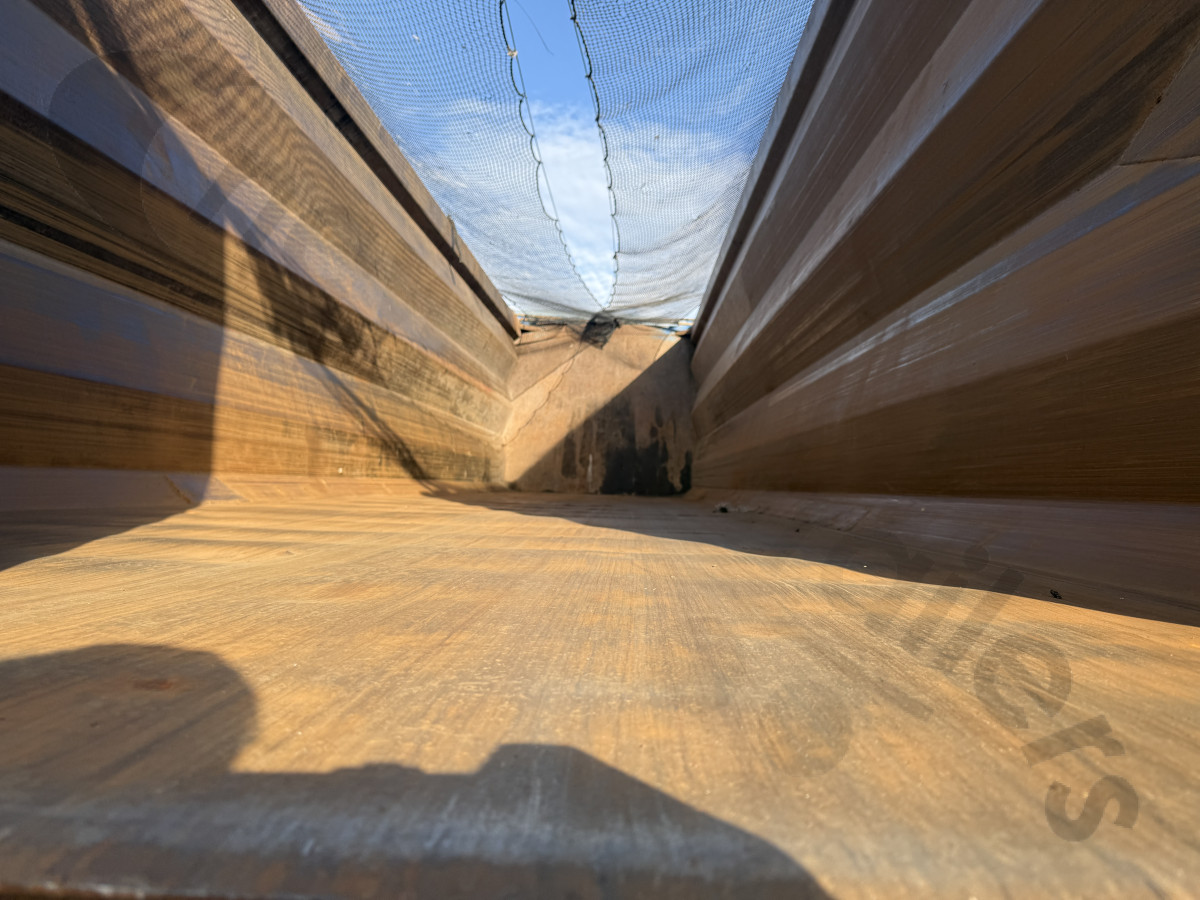

5 mm Hardox Floor - single piece full length - no joins for strength
4 mm Hardox Side - laser cut and laser welded - single sheets full length with no joins for strength
Hardox rear door

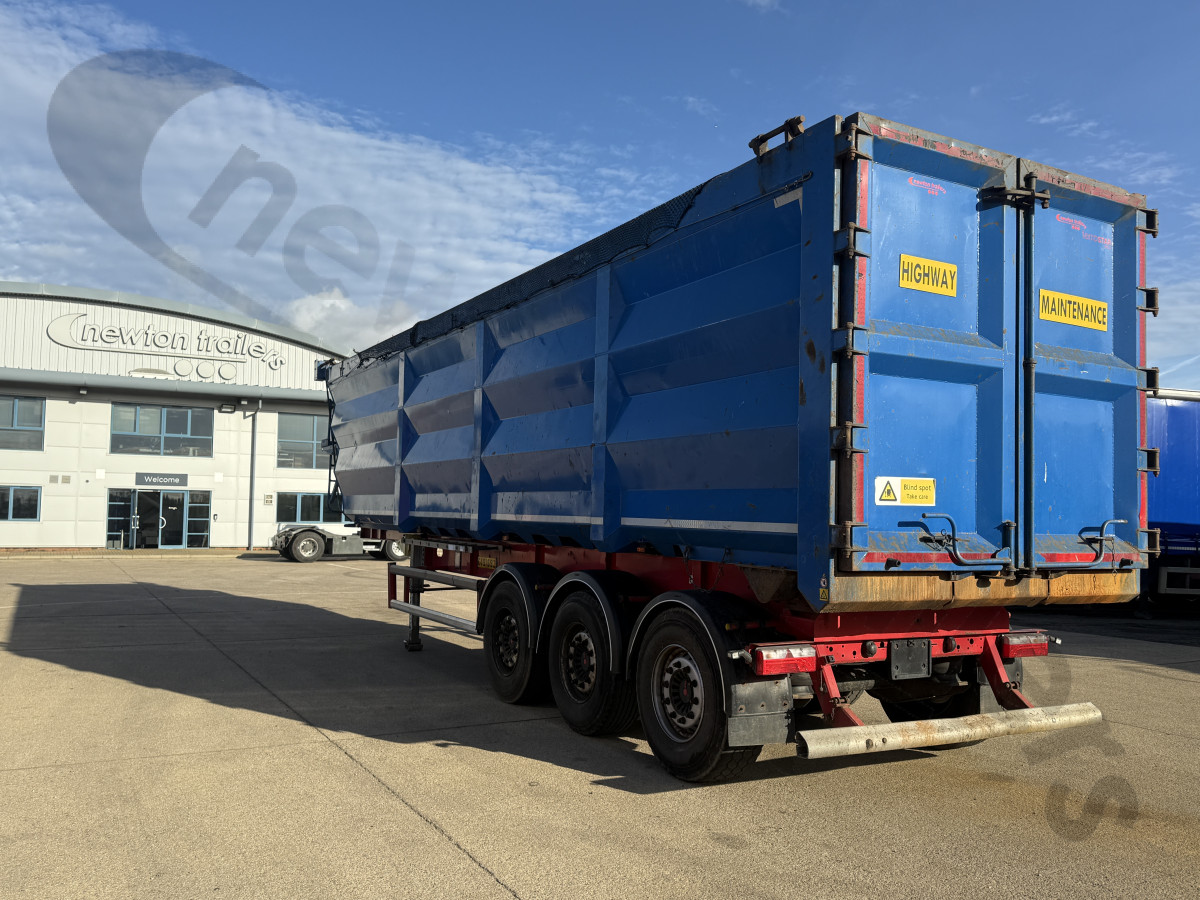

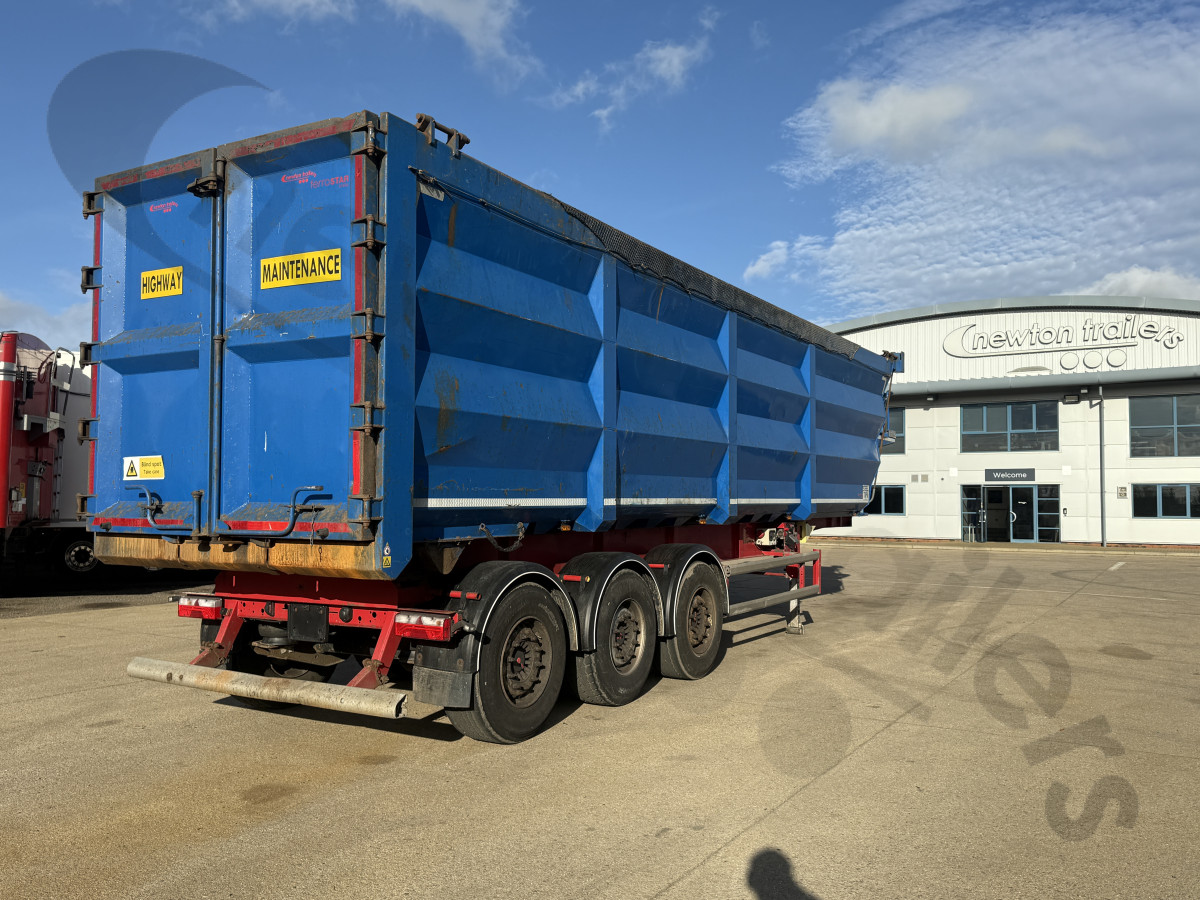

50:50 barn door with pneumatic door locking mechanism with 5 hinges
triaxle
air
lift axle
PM on Board weigher
Front Catwalk (UK NS drop)
Landing legs aluminium LG
Dawbarn manual net system Split 50:50 front wound from the ground
Luck are considered Germany's best steel body and produce about 700 per annum. Yes they are expensive - but the cheaper ones have been tried and just do not seem to work like the Lucks.
Newton are sole agent for UK and Eire of this Luck product.
*this estimator is not an offer to finance
Newton Steel Tipping Trailer - The Lightest Steel Body Tipping Trailer in the UK Market
76 cuyd
5 mm Hardox Floor - single piece full length - no joins for strength
4 mm Hardox Side - laser cut and laser welded - single sheets full length with no joins for strength
Hardox rear door
50:50 barn door with pneumatic door locking mechanism with 5 hinges
triaxle
air
lift axle
PM on Board weigher
Front Catwalk (UK NS drop)
Landing legs aluminium LG
Dawbarn manual net system Split 50:50 front wound from the ground
Luck are considered Germany's best steel body and produce about 700 per annum. Yes they are expensive - but the cheaper ones have been tried and just do not seem to work like the Lucks.
Newton are sole agent for UK and Eire of this Luck product.
