Share
| Year | 2022 (new) |
|---|---|
| Chassis | Weightlifter Bodies Limited |
| Body | KBF Trailers Limited |
| Volume | 90 CuYds (68.8m3) |
| Weight | 10300kgs |
| Stock No. | SN17504 |
|---|---|
| Type | Steel Body Tipping Trailer |
| Chassis | Weightlifter |
| Body | KBF Trailers |
| Model | 90 Stepframe Steel Body |
| Year | 2022 (new) |
| MOT | C591829 |
| Documents |  Parts Manual |
| eCO2 | 55000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 10300kgs |
|---|---|
| Type | Steel Step Frame |
| Suspension | Air |
| Brakes | 22.50" Knorr Bremse SN7 Disc |
| ABS/EBS | WABCO |
| Wheels | Steel |
| Weigher | PM OnBoard |
| Axles | 3x DCA TE5/8N |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 90 CuYds (68.8m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Chassis | Red |
| Body | Black |
| Cover | Net Dawbarn Manual Net System 50:50 Split |

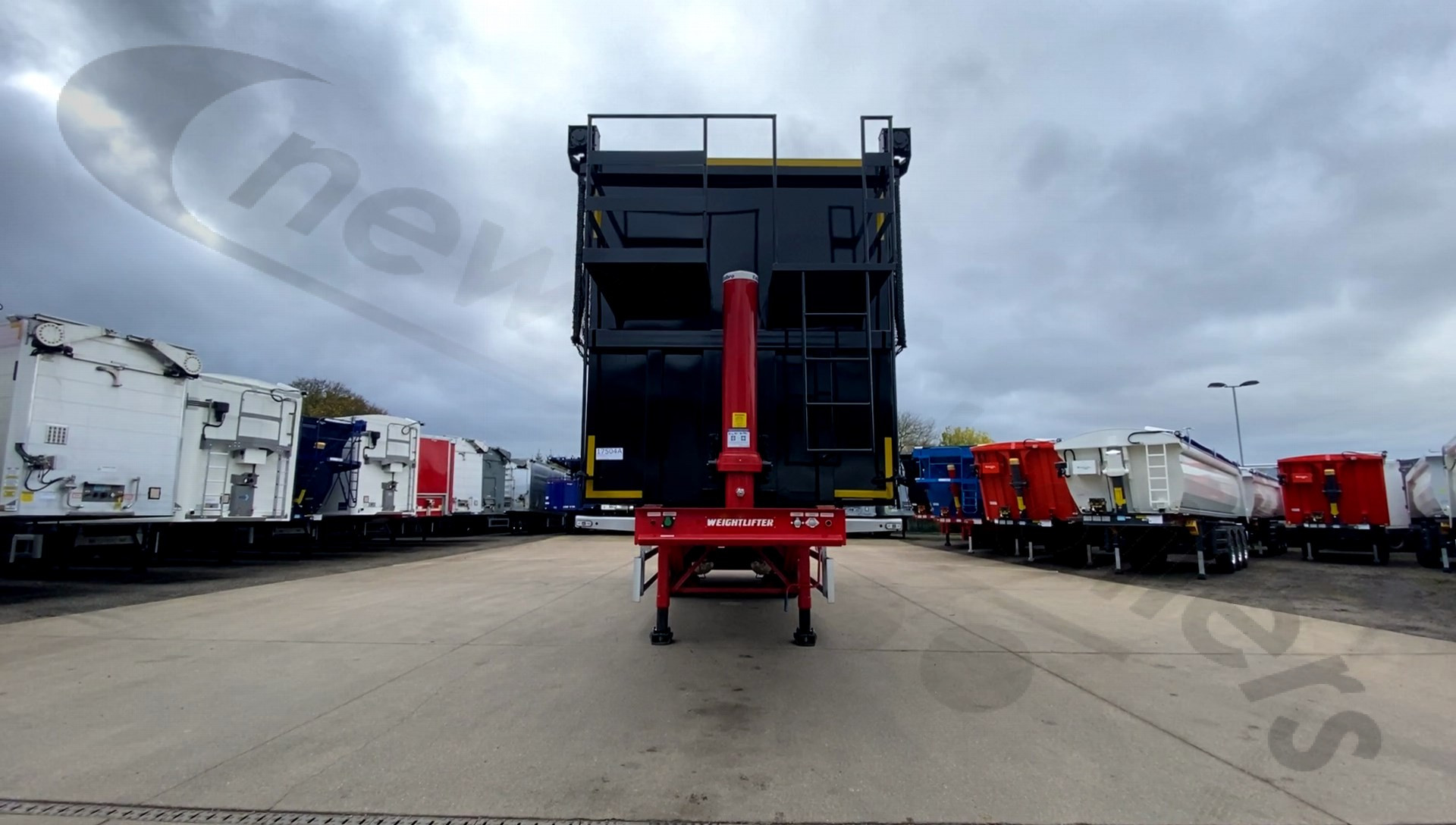

KBF 90 cuyd Steel Body
Weightlifter Steel Stepframe Steel Chassis
Tri axle on full air suspension with a front lift axle
DCA Axles and disc brakes
Full HARDOX steel body:
Floor: 6mm HARDOX floor (Beast)
Sides: 3.2mm Hardox sides
Floor angles 5 x to deflect damage to floor
Full body length floor support intermediates (so this floor is massively structural and strong)
50:50 Barn doors
PM OnBoard weighing system with a chassis mounted readout
Manual 50:50 net system wound from the ground
Catwalk
*this estimator is not an offer to finance
KBF 90 cuyd Steel Body
Weightlifter Steel Stepframe Steel Chassis
Tri axle on full air suspension with a front lift axle
DCA Axles and disc brakes
Full HARDOX steel body:
Floor: 6mm HARDOX floor (Beast)
Sides: 3.2mm Hardox sides
Floor angles 5 x to deflect damage to floor
Full body length floor support intermediates (so this floor is massively structural and strong)
50:50 Barn doors
PM OnBoard weighing system with a chassis mounted readout
Manual 50:50 net system wound from the ground
Catwalk
*this estimator is not an offer to finance
| Stock No. | SN17504 |
|---|---|
| Type | Steel Body Tipping Trailer |
| Chassis | Weightlifter |
| Body | KBF Trailers |
| Model | 90 Stepframe Steel Body |
| Year | 2022 (new) |
| MOT | C591829 |
| Documents | Parts Manual |
| eCO2 | 55000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 10300kgs |
|---|---|
| Type | Steel Step Frame |
| Suspension | Air |
| Brakes | 22.50" Knorr Bremse SN7 Disc |
| ABS/EBS | WABCO |
| Wheels | Steel |
| Weigher | PM OnBoard |
| Axles | 3x DCA TE5/8N |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 90 CuYds (68.8m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk | |
| Chassis | Red |
| Body | Black |
| Cover | Net Dawbarn Manual Net System 50:50 Split |
