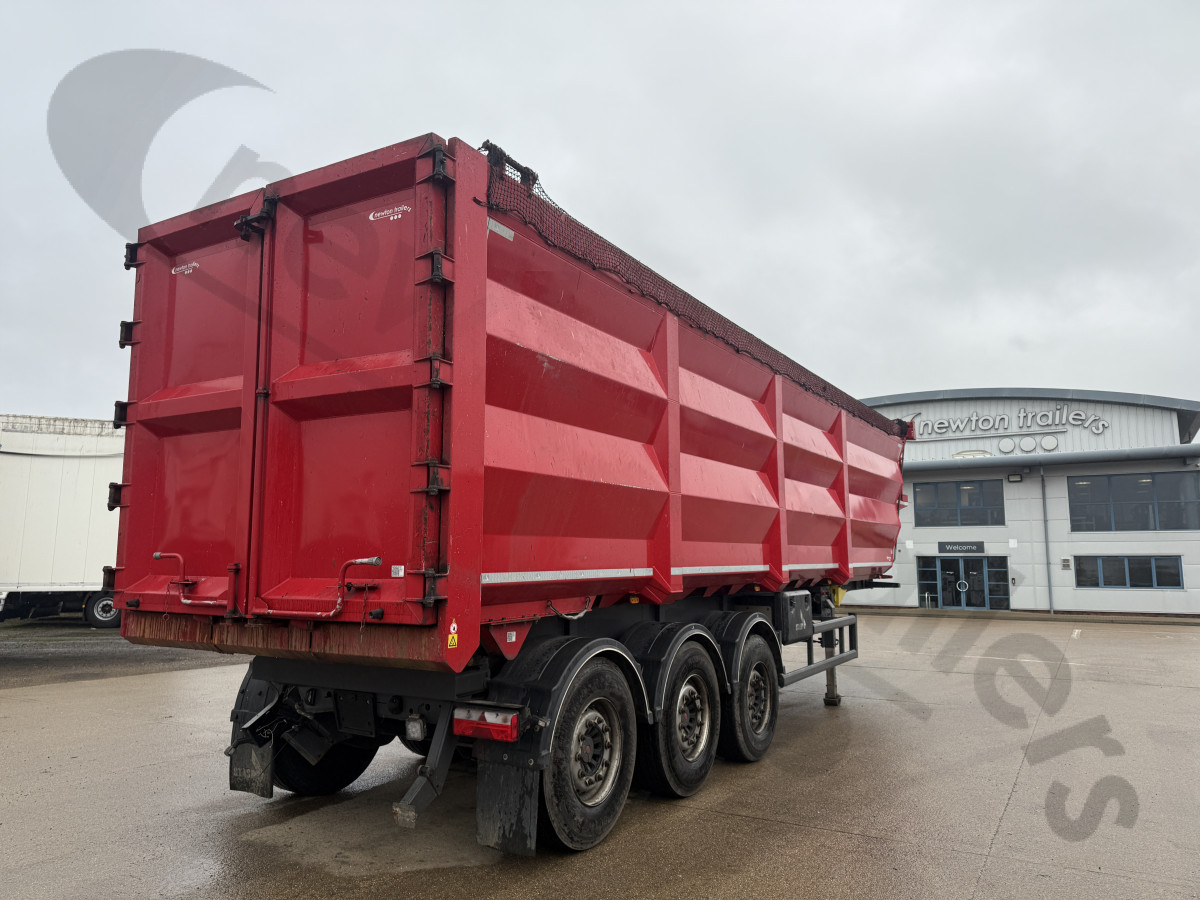

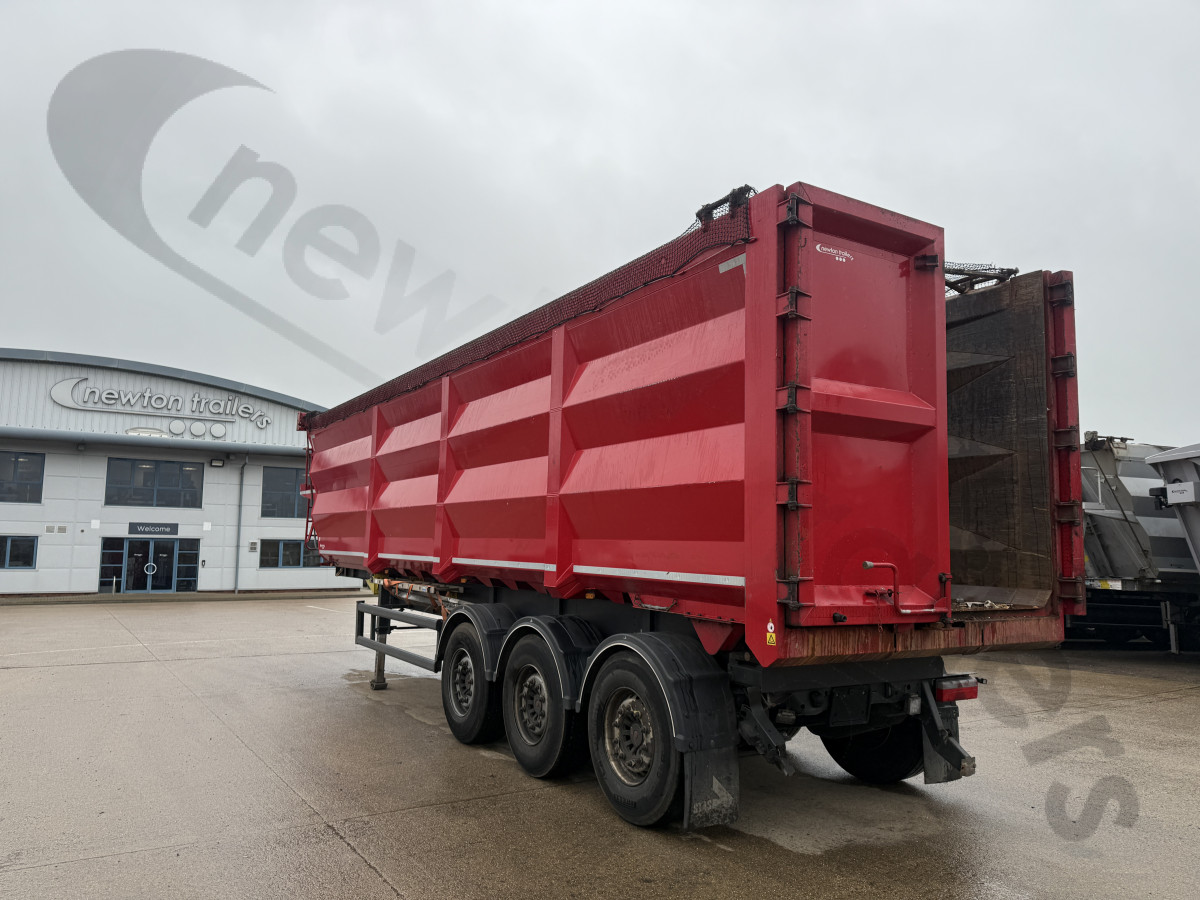

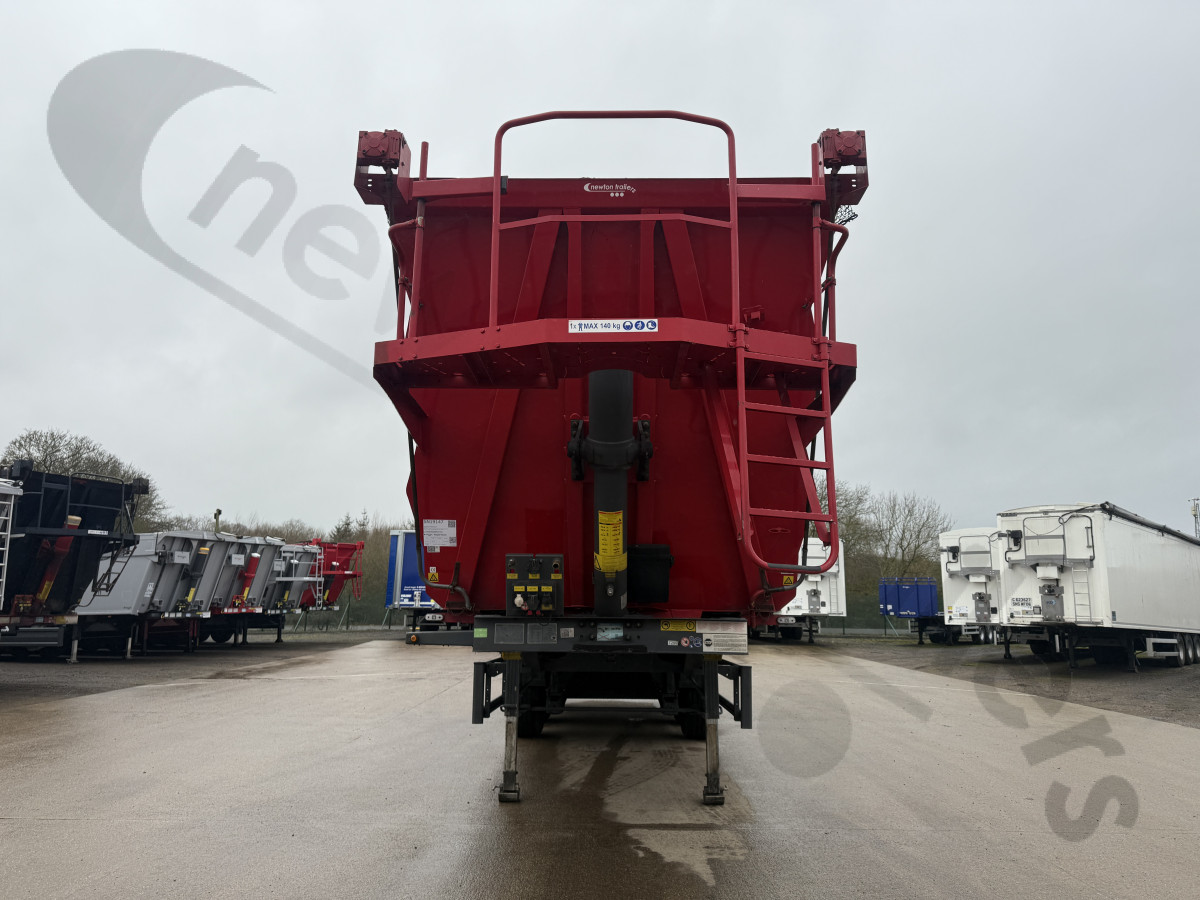

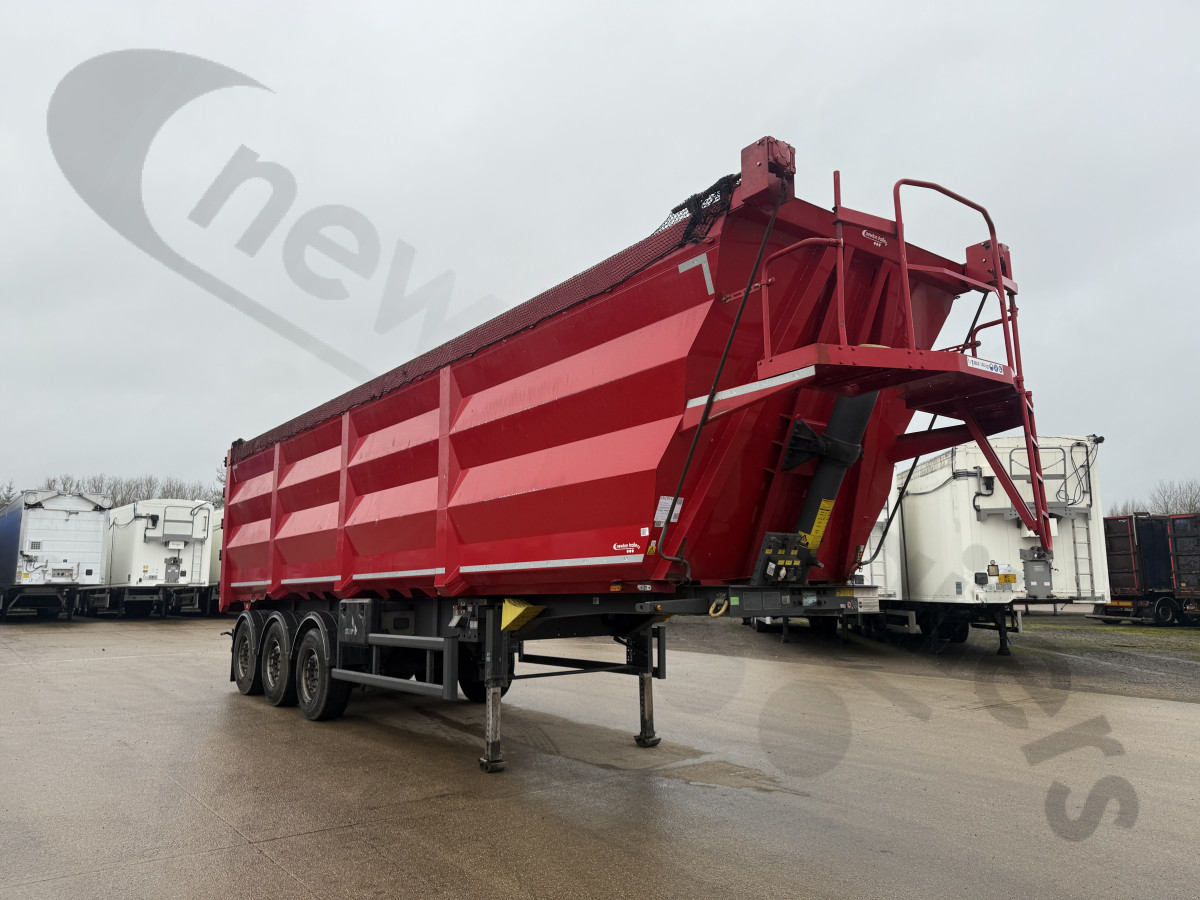

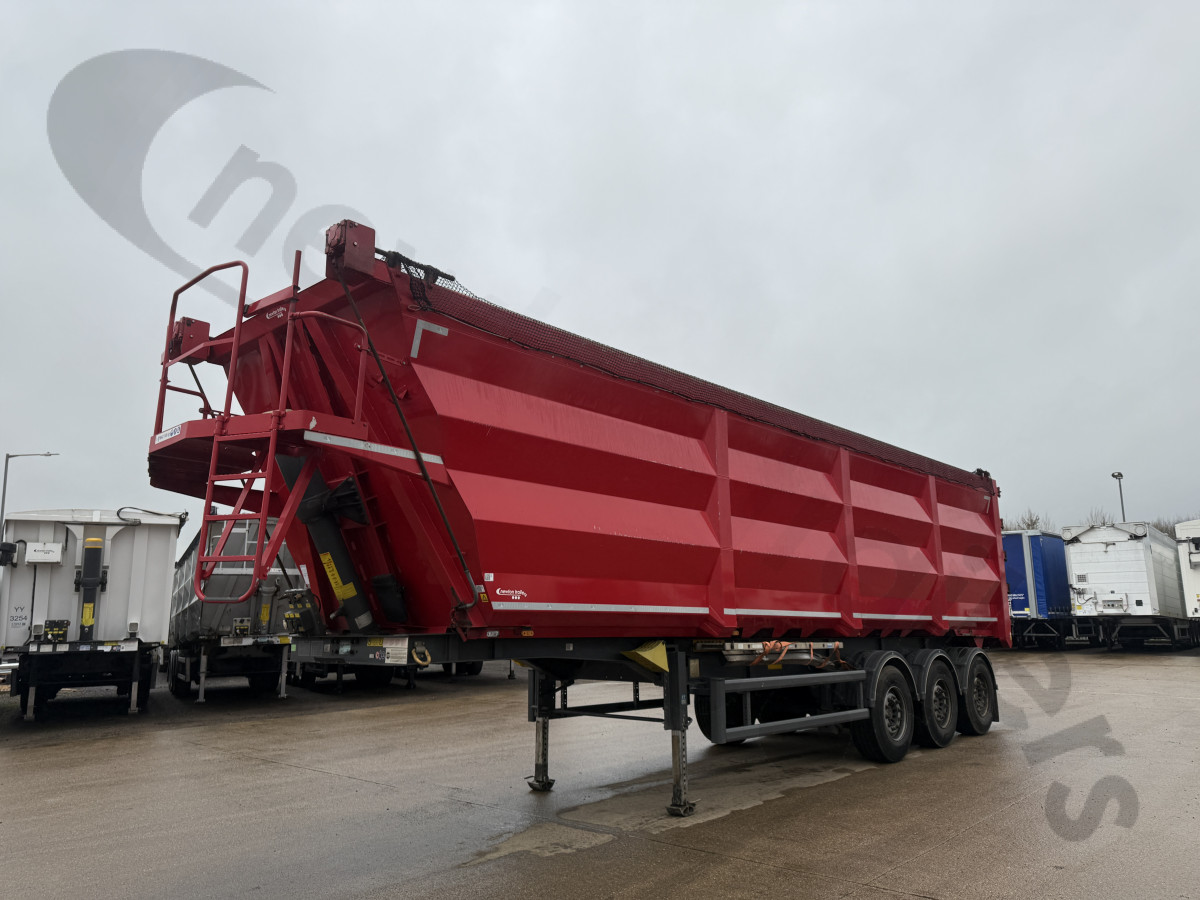

Steel Body Tipping Trailer

Year 2021
Chassis Luck Fahrzeugbau
Body Luck Fahrzeugbau
Volume 76 CuYds (58.1m3)
Weight 8200kgs

Full Specifications

Specifications

Details:

Stock No. SN19147
Type Steel Body Tipping Trailer
Chassis Lück
Body Lück
Model Ferrostar FSS57
Year 2021
MOT C557048
Documents Parts Manual

Planet:

eCO2 55000kg
Confidence 1 (low)
Checked 16/11/2022

Chassis:

Weight 8200kgs
Type Steel Step Frame
Suspension Air
Brakes 22.50" SAF SBS Disc
ABS/EBS WABCO EBS-E
Wheels Steel
Weigher VWS
Axles 3x SAF BI9 22S SBS
Axle 1 Lift
Axle 2 Fixed
Axle 3 Fixed

Body:

Volume 76 CuYds (58.1m3)
Door Barn Door 50:50
Catwalk ./
Chassis Daf Grey C4P500
Body BS 0438 Post Office Red
Cover Net Dawbarn Manual Net System 50:50 Split
Specifications

Parts Manual


For a printable parts manual for this trailer click below


Parts Manual

Parts Manual

Description

Newton Steel Tipping Trailer - The Lightest Steel Body Tipping Trailer in the UK Market

Full Description

Description

Newton Steel Tipping Trailer - The Lightest Steel Body Tipping Trailer in the UK Market
76 cuyd - 8 Tonne - Hardox steel body on Hardox steel step frame chassis

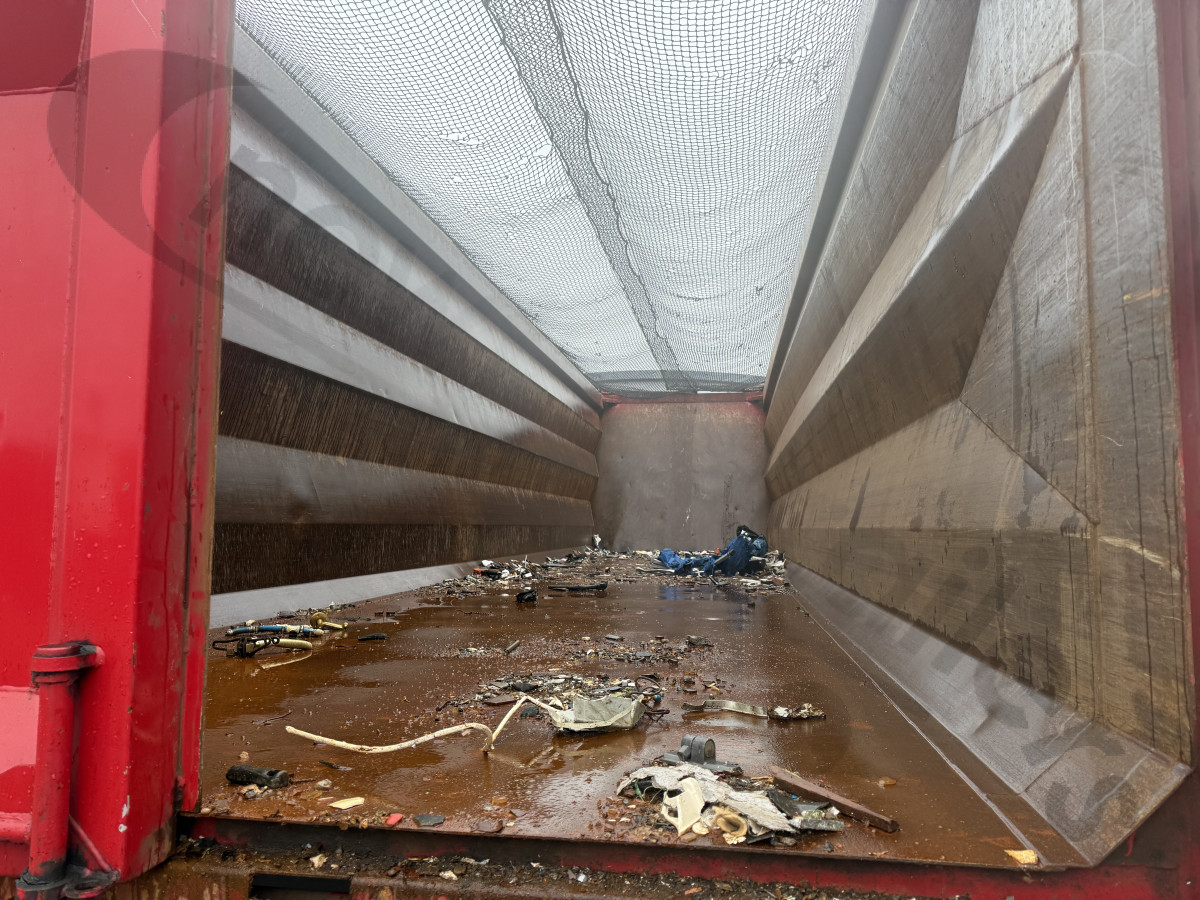

5 mm Hardox Floor - single piece full length - no joins for strength
4 mm Hardox Side - laser cut and laser welded - single sheets full length with no joins for strength
Hardox rear door
50:50 barn door with pneumatic door locking mechanism with 5 hinges
Tri axle on air with a front lift axle
VWS weighing system – Wifi enabled head
Front Catwalk (UK NS drop)
Landing legs aluminium LG
Dawbarn manual net system Split 50:50 front wound from the ground
Luck are considered Germany's best steel body and produce about 700 per annum. Yes they are expensive - but the cheaper ones have been tried and just do not seem to work like the Lucks.
Newton are sole agent for UK and Eire of this Luck product.

Description

Finance Estimator


Own this Steel Body Tipping Trailer from £145.65 per week


Get An Estimate

Own from £145.65 per week*

Initial Payment


Finance Duration


Final Payment

Residual Value

£
Final Payment

Payments

per month
( per week)

Interest Rate

comparison rate
Flat Rate

Total Paid

(excluding initial)
interest

*this estimator is not an offer to finance

Finance

Quote


For a printable quote for this trailer click below


Get a Quote


Description

Newton Steel Tipping Trailer - The Lightest Steel Body Tipping Trailer in the UK Market
76 cuyd - 8 Tonne - Hardox steel body on Hardox steel step frame chassis
5 mm Hardox Floor - single piece full length - no joins for strength
4 mm Hardox Side - laser cut and laser welded - single sheets full length with no joins for strength
Hardox rear door
50:50 barn door with pneumatic door locking mechanism with 5 hinges
Tri axle on air with a front lift axle
VWS weighing system – Wifi enabled head
Front Catwalk (UK NS drop)
Landing legs aluminium LG
Dawbarn manual net system Split 50:50 front wound from the ground
Luck are considered Germany's best steel body and produce about 700 per annum. Yes they are expensive - but the cheaper ones have been tried and just do not seem to work like the Lucks.
Newton are sole agent for UK and Eire of this Luck product.
