9111007 Cargo Floor CF500 Plank Hole Template For Drilling - CF500 x 4 Holes LG:200mm

9111007 Cargo Floor CF500 Plank Hole Template For Drilling - CF500 x 4 Holes LG:200mm 9111007 Cargo Floor CF500 Plank Hole Template For Drilling - CF500 x 4 Holes LG:200mm 9111007 Cargo Floor CF500 Plank Hole Template For Drilling - CF500 x 4 Holes LG:200mm
Stock 0
Postage 4kg
Price £118.22 +VAT
Quantity
Type New, Branded
Newton Part No. N1001832
Manufacturer Part No. 9111007
eCO2 Content 7.6kg
Confidence 1 (low)
Checked 09/11/2022

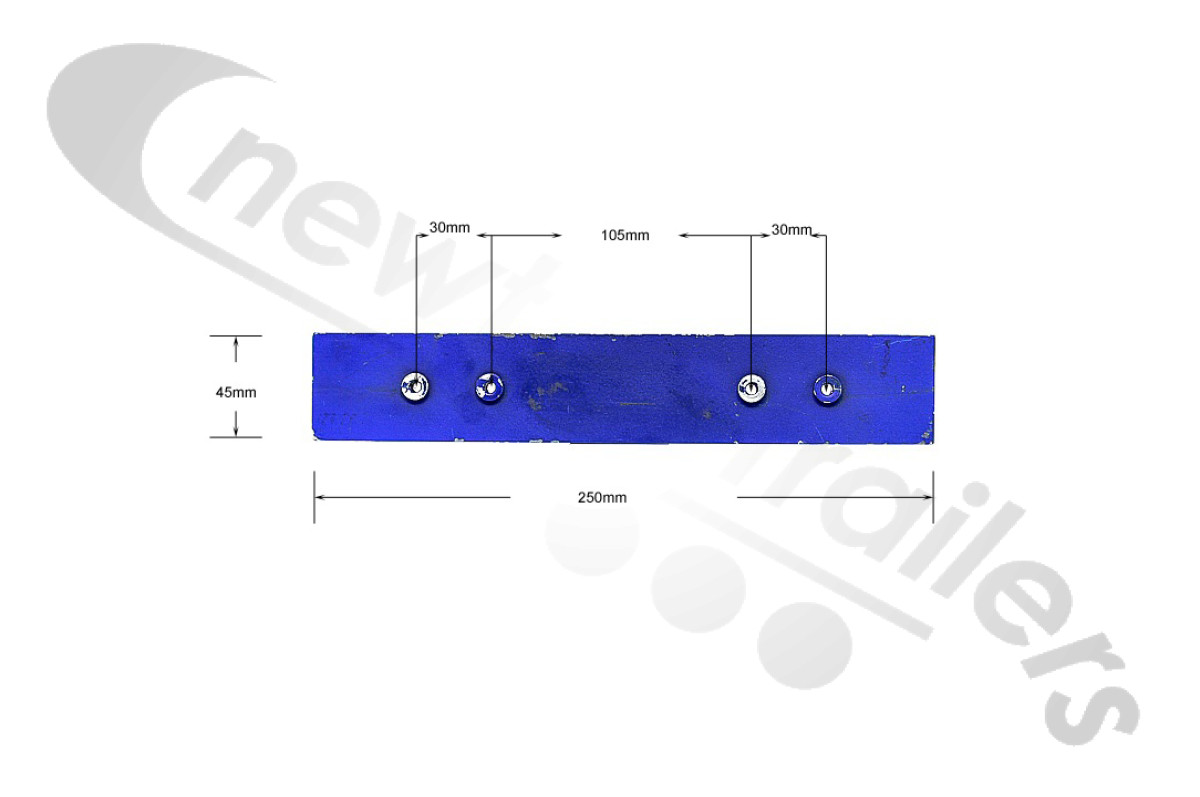

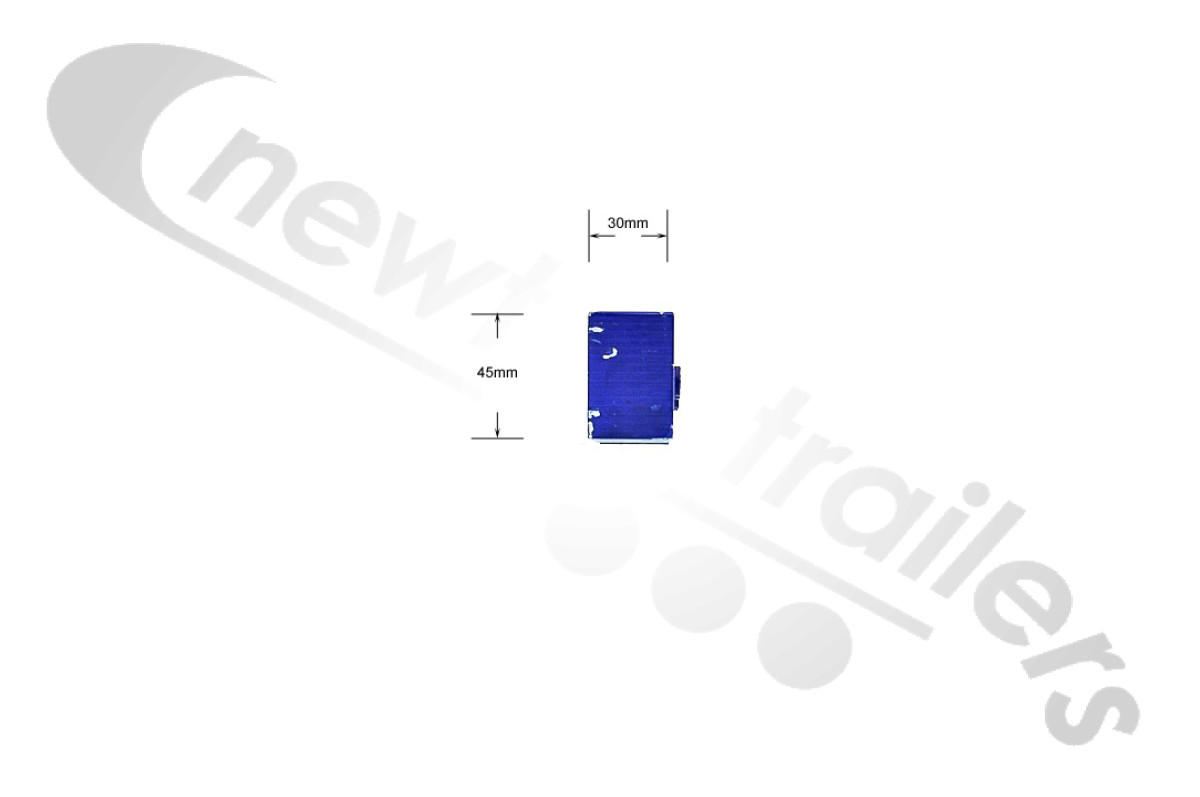

Cargo Floor CF500 Plank Hole Template For Drilling - CF500 x 4 Holes LG:200mm

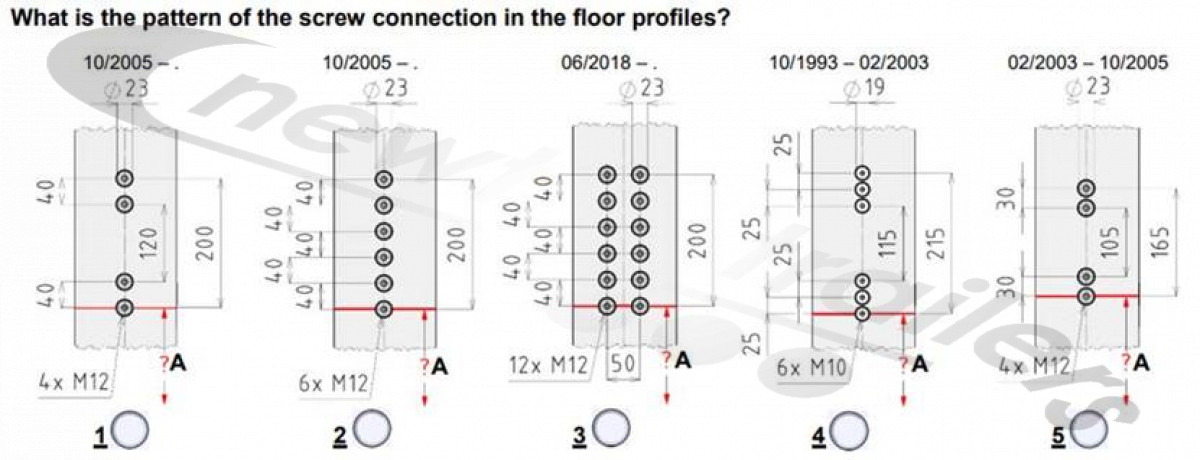

Template for drilling the floor holes in the planks of 21 plank CF500 with the four hole system. Beware there is a 6 hole system out there with lenghts 200mm & 240mm.

This Template Is For Cargo Floor CF500 Plank Assembly Strip L.200x4x12mm
Newton Part Number For Assembly Strip N1001833



This is typical found on floors sets fitted between 2003 - 2005
