03709401 Keith Walking Floor® RFII Check Valve

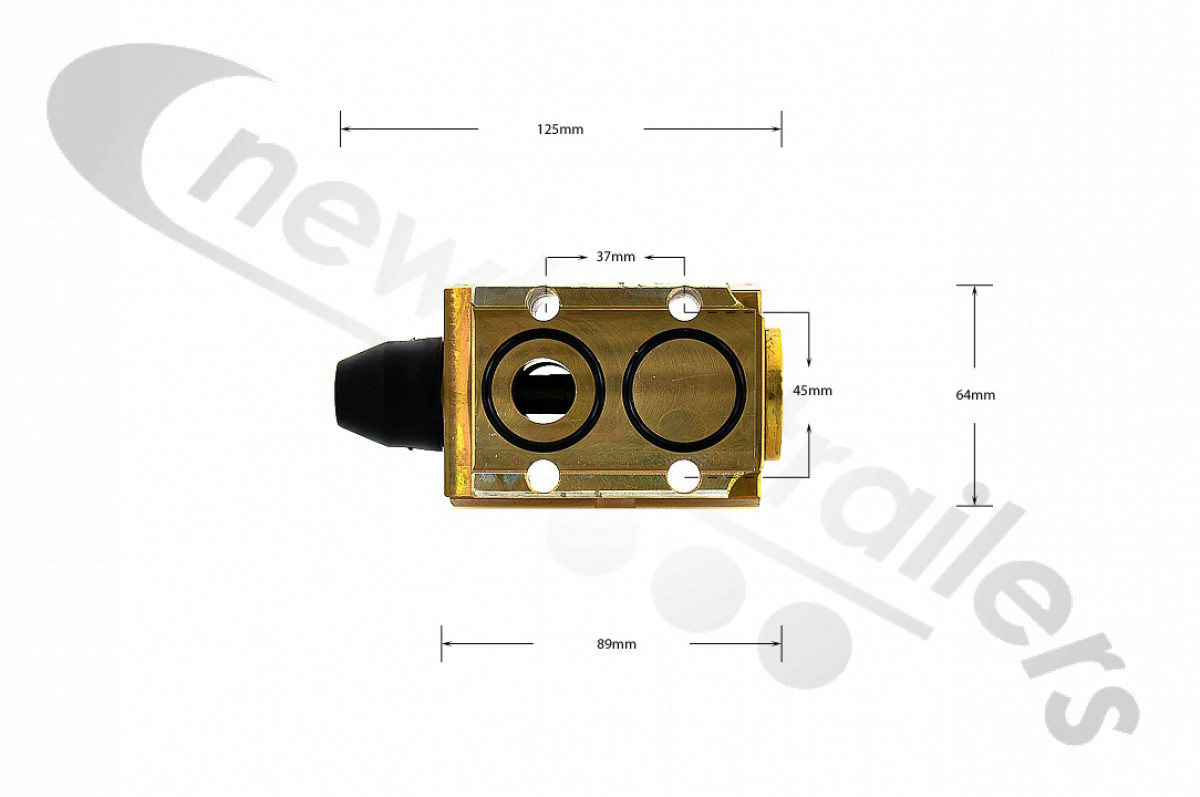

Keith Walking Floor® RFII Check Valve

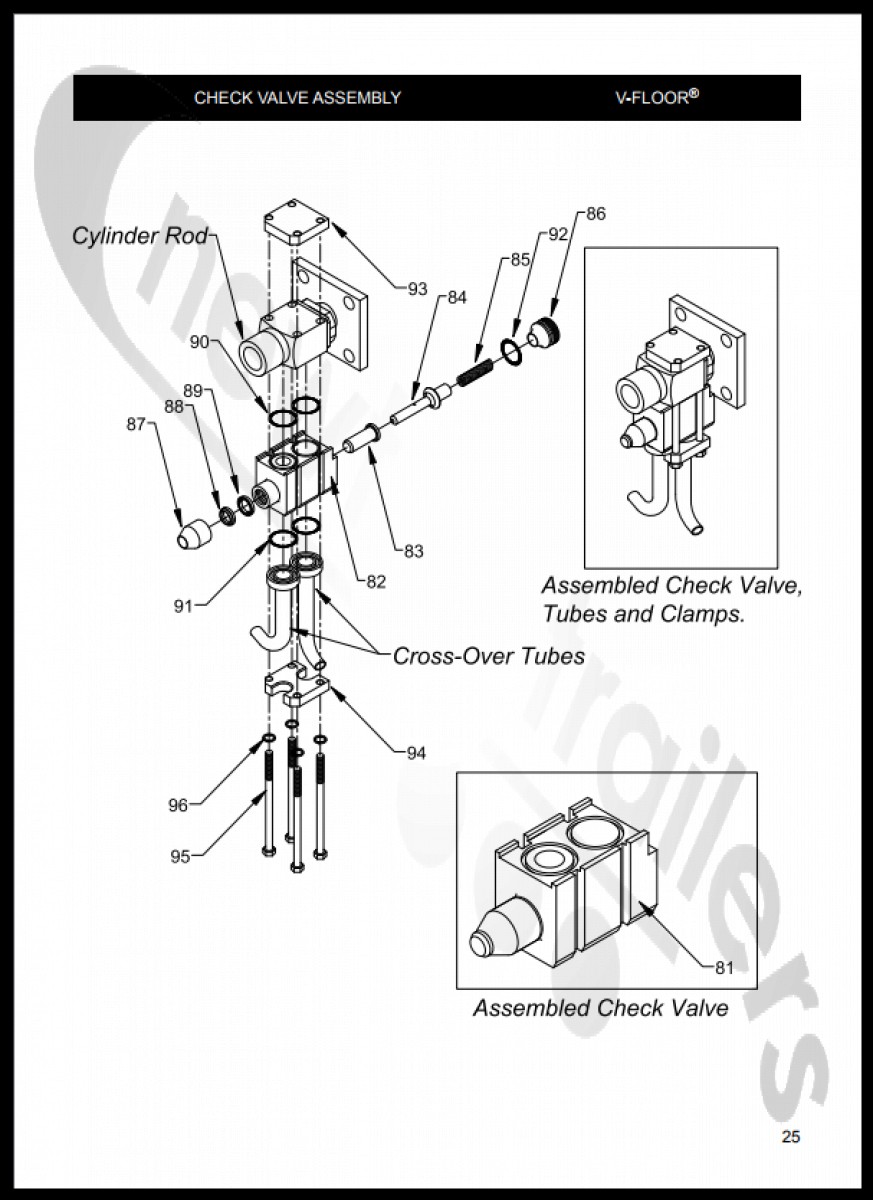

Check valve mounted on the ends of the KEITH RUNNING FLOOR II (KRFII) cylinders.

The plunger will be pushed and opens the port for the next cylinder

The KRFII drive has four equal check valves (CKV) and can be interchanged.
Two CKV on the load end of cyl #1 and #2 and two on the unload side on cyl #2 and #3.
The non-DX CKV have the tubes connected by clamping and used until 01/2009.

Keith Walking Floor Replacement Part Running Floor II Spare Part
