BALPR00302 Knapen Door Hinge Alloy Profile For Standard Doors Alu Hinge L=95 Up To 2016 - 17

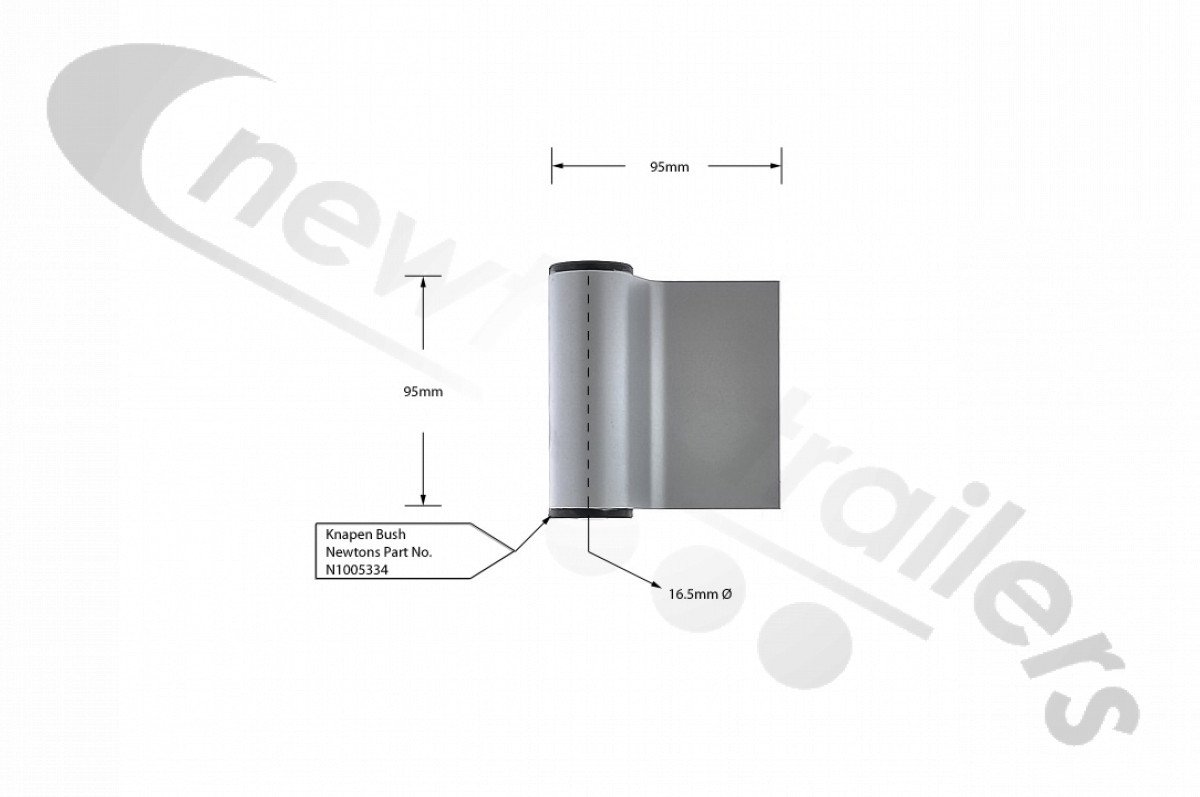

Knapen Door Hinge Alloy Profile For Standard Doors Alu Hinge L=95 Up To 2016 - 17

Fitted since 2011 on Knapen Standard doors inner hole diameter to take black bearing bush and then to take 16 mm stainless steel bar

(Before 2011 the hinge had a wider diameter and did not have the black insert bearing bush. The diagnostic for this hinge is the white washer on the top of the hinge. This hinge is delisted and you replace with this part)
