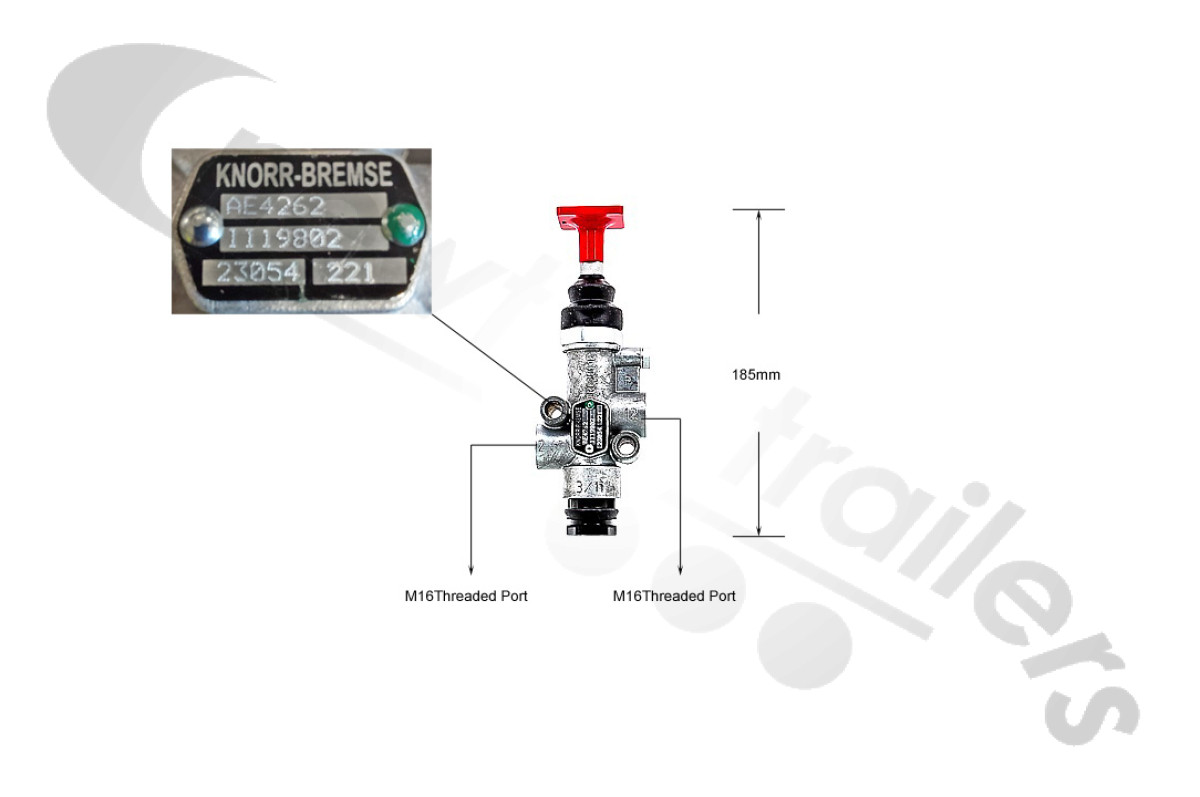

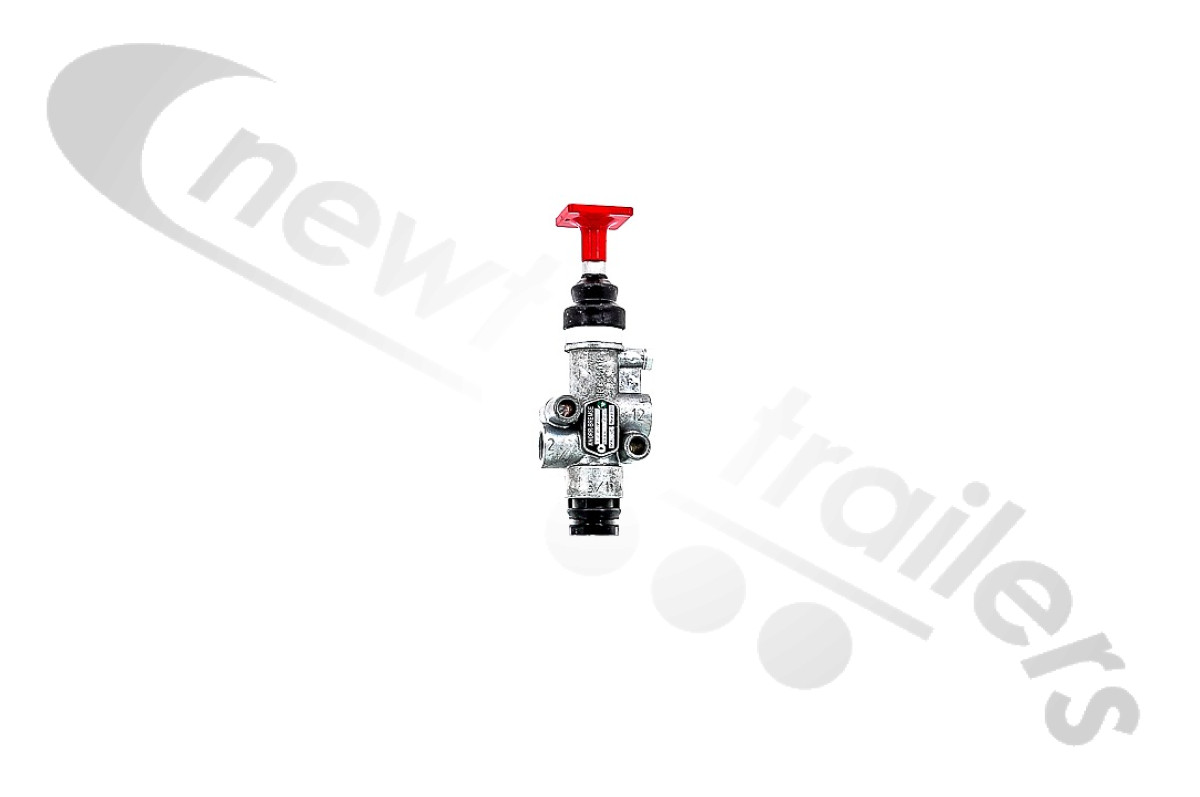

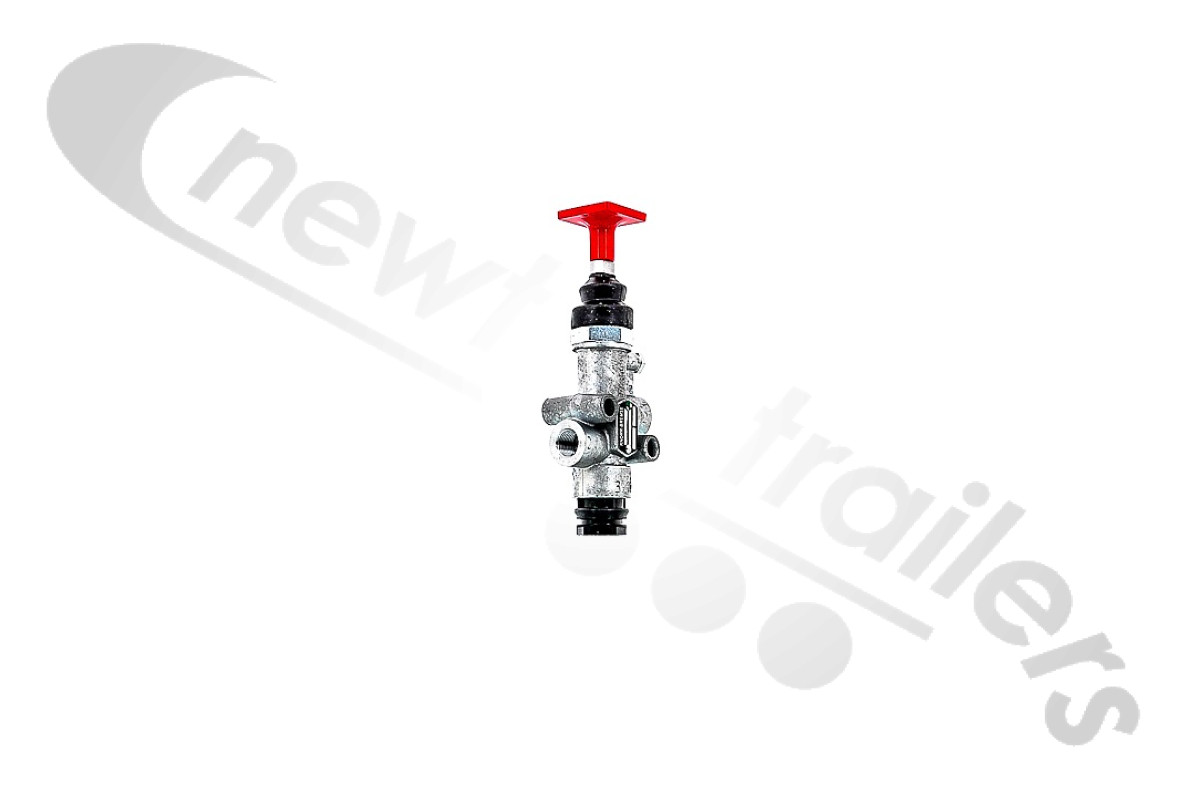

AE4262 Knorr Bremse Park Valve or Air Suspension Dump Valve - Air Lock Valve

Knorr Bremse Park Valve or Air Suspension Dump Valve

The Trailer Park Valve operates the parking brake function of trailers equipped with spring brake actuators. Whether coupled or uncoupled, the red control button must always be pulled out to correctly park the trailer. By pushing in the control button, the spring portions of the spring brake actuators are supplied with air so that the parking brake is released.

Also used on a Fruehauf for the air suspension dump.

Technical Features

Maximum operating pressure: 8.0 bar

Operating temperature range: -40 °C to +80 °C

Way through 4.5 mm (for AE4262)

Weight: 0.5 kg approx.
