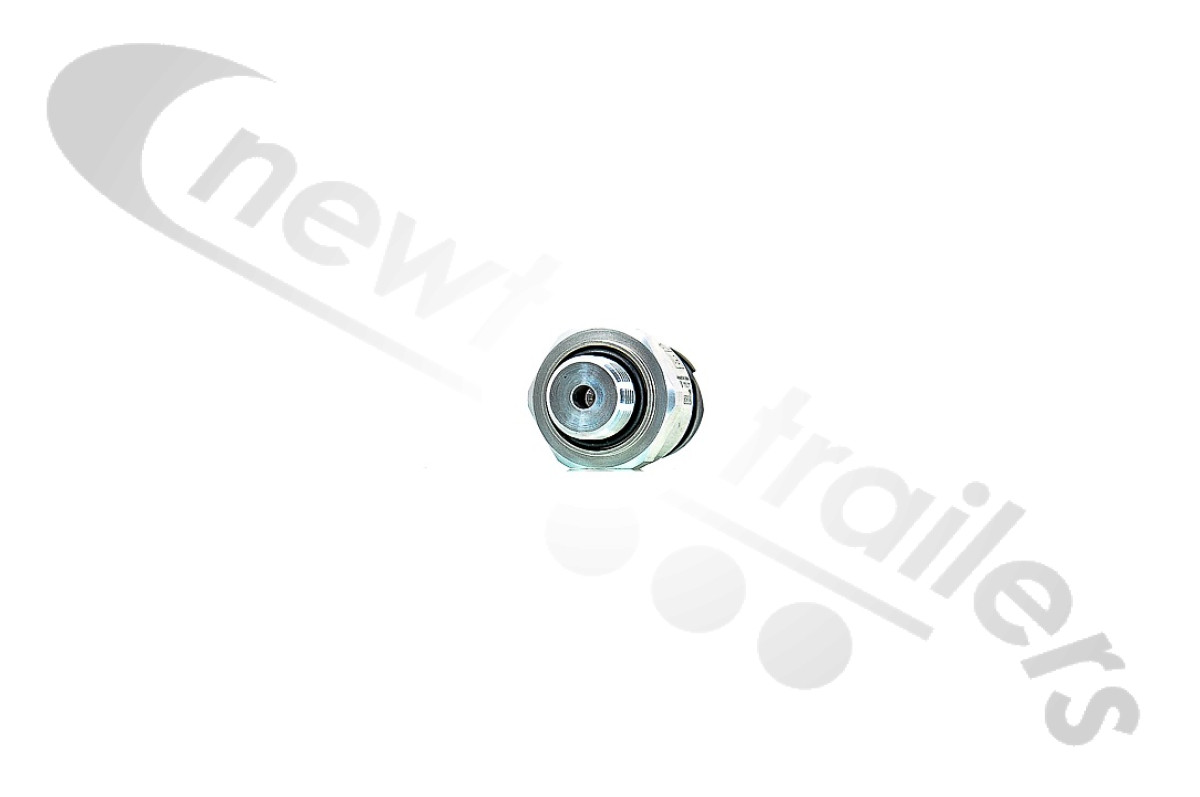

4410441020 Wabco EBS - Pressure Sensor

4410441020 Wabco EBS - Pressure Sensor



Wabco EBS - Pressure Sensor

Pressure Sensor 441 044 102 0 Technical Sheet

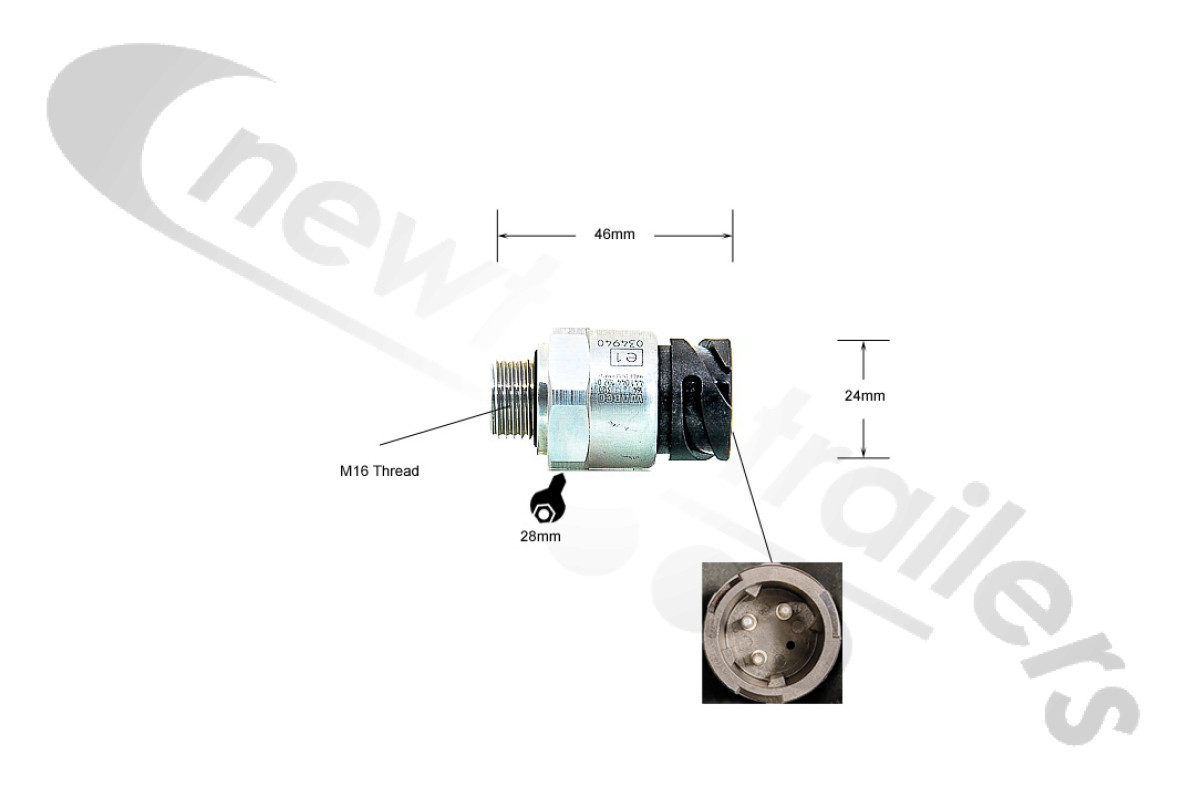

1. Port threads: M 16x1.5
2. Electrical connection: Bayonet (DIN), DIN 72-585-A1-3.1
3. Measurement range: 0 .. 10 bar
4. Voltage: 8 - 32 V DC
5. Resolution: 400 mV/bar; 16 counts/bar
6. Max. operating pressure: 16 bar
