Print Quotation For 1x New 2024 Titan Aggregate Walking Floor® Trailer Print

Quotation For 1x New 2024 Titan Aggregate Walking Floor® Trailer

Newton Trailers Limited




Thursday, 28th March 2024

Dear Customer,

Ref: SN1112

Thank you for the opportunity to quote for 1 x new Titan Aggregate Walking Floor® Trailer.

Titan are a family company and the world's largest manufacturer of Walking Floor Trailers. Newton Trailers are a family company operating since 1964 and the UK's largest supplier of new and used Walking Floor trailers and tipping trailers.

Titan's simple goal is to manufacture the strongest and lightest Walking Floor Trailer, giving reliablility and extremely low cost of ownership. Now this is a common claim to make but in the case of the Titan it is actually true. Just ask anyone running a mixed fleet how they rate the Titans they have.

Designing a walking floor for asphalt and aggregate is a technically difficult task. Titan are the UK market leader in this product with many hundreds now in service.

Newton are the UK & Eire's sole distributor for the floors which are now manufactured at a brand new plant in Middlesbrough.

Yours sincerely,



Newton Trailers Limited

Quotation For 1x New 2024 Titan Aggregate Walking Floor® Trailer

Prepared for SN1112

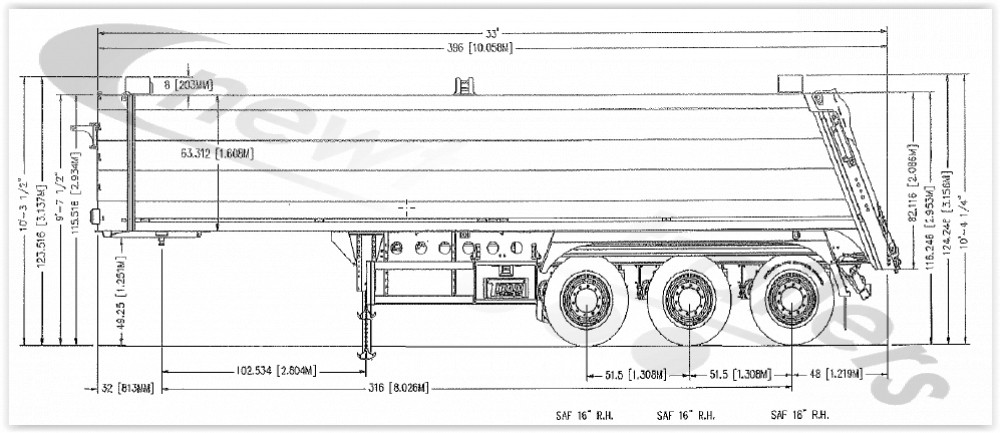

DIMENSIONS

Trailer Volume: ± 40 CuYds (30.6m3)

Length inside: ± 9850 mm

Width inside:  ± 2.480 mm

Width outside: ± 2.550 mm

Height inside front: ± 1600 mm

Height inside rear:  ± 1600 mm

Total height front:  ± 3.134 mm (including Dawbarn Automatic Sheet at 1.251mm coupling height)

Trailer Unladen Weight: ± 7720 kg

USES

Suitable for bulk free flowing wastes: ashphalt and aggregate; suitable for 6 axle 44T operation on road.

CHASSIS

Sub-Frame constructed in Alloy.

  • Aluminium, self-supporting auxiliary sub-frame at 1271 mm centres.
  • Floor cross - members at 304 mm centres.
  • Aluminium design rear chassis end coupling to Pneumatic retractabel rear under run bar to suit aggregate application controlled off the EBS – retracts when reverse engaged; descends when forward speed > 20 kph.
  • Aluminium side protection, fixed in accordance with EU regulations.
  • Steel Coupling Plate 8 mm thick set at 1.251 mm coupling height.
  • Plastic tool box fitted UK nearside.
  • Side impact guards fitted.

KINGPIN

  • 2” connecting pin, assembled in a 8 mm thick steel sledge plate of St 52-3.
  • Sledge plate is explosion weld - 'welding' steel rubbing plate DIRECTLY into the aluminium horizontal side wall for enormous strength benefits.
  • Steel cross-members incorporated into the sledge plate.
  • Sledge plate area designed for 18 tonne operation.

LANDING LEGS

  • Aluminium pinned drop leg style (MV Plastecnic) - weight saving 80kg

AXLE AND SUSPENSIONS

  • 3 x SAF - 9-tonne, SAF intradisc+ integral CD (OFF ROAD) version ET-120.
  • Wheelbase 6.716 mm, axle spacing 1,310 - 1,310 mm, Axle track 2040 mm.

WHEELS AND TYRES

  • 6 x Continental Tyres or Premium Brand 385/65 R22.5".
  • 6 x 120 offset Alloy rims for disc, size: 22.5 x 385 ET 120 10-holes.

BRAKES

  • 2 line air brakes to current EU regulations.
  • Load sensed system.
  • Electronic braking system ZF CV Distribution UK Ltd– with ON BOARD WEIGHING CAPABILITY with compatible tractor units – ask truck manufacturer for compatibility.
  • Parking brake through spring brakes.
  • Roll stability activitated.
  • Alloy air tanks.

ELECTRICS

  • Rubbolite Trucklite 10/30v system. Trucklite resistor box.
  • Trucklite – 2 front headboard marker lights as high as possible, 2 at bottom
  • Trucklite – 5 side lights per side including mid-turn counter sunk with alloy over protection
  • Trucklite – 2 marker lights at top of rear door incorporated into door
  • Trucklite Model 758 24 Volt LED c/w back up lights and triangular reflectors
  • 2 x Strobe Lights to rear, all side lights flash when turning
  • Reversing beeper fitted
  • Working lights at rear controlled by manual switch

SPRAY SUPPRESSION

  • Titan Black Rubber; mounted rear of tridem group and in front of 1st axle with anti-sail brackets.
  • Rear mud flap rises with pneumatic operation fro paver clearance.
  • 6 x individual mudwings

BODY

Sidewalls

  • Sidewall planks are laid horizontally and completely seam welded full length internally AND unique to TITAN completely seam welded externally for extra strength.
  • Internal wear plates 4mm alloy boomerang shaped to distribute forces.
  • Side wall aluminium wear strips at rear
  • Side wall bottom 3 planks TITAN THINWALL™ plank to suit aggregate work.
  • Side wall incorporate HIGH TEMPERATURE ULTRA HIGH MOLECULAR WEIGHT liner extending 400 mm up side
  • SPECIAL Top rail extrusion integrated into top 7 inch of side wall panel

Front Headboard

  • Horizontal planks completely seam welded inside and uniquely outside too.
  • Half round Eclipse Front
  • Multiple gussets and connectors to side wall. This strengthening gives the UNIQUE integrity.
  • High Level swivel Boom for hydraulic hoses 550mm down from top of headboard.
  • Air - (ISO 1728) and electrical connections fitted centrally approx 750 mm up.
  • Front access door fitted (essential to access hydraulics and plough maintenance)

Floor Construction

  • Floor cross - members at 304 mm (12 inch) centers.
  • Uniquely the floor cross-members are welded directly onto horizontal sidewall of the trailer. This generates 200% greater strength than competition.
  • Uniquely the steel rubbing plate and kingpin are explosion welded into the horizontal sidewall of the trailer.

Moving Floor System

  • Keith Running Floor 2 manual control
  • 9 plank system with V Steel 4 mm thick aluminium floor planks.
  • Keith Walking Floor II Unit DXE-3” diameter cylinders European Style
  • Keith 2692 18-slat VF Triple Ridge Aluminium,
  • 2650 trough, Trough: (Heavy Duty) Model Number: 822527SPLC with steel inserts
  • 2652 J bearing Bearing: High temperature bearings with Titan designed side wall slats incorporated into the two side planks
  • Start/Stop button on rear chassis OFFSIDE to operate floor system
  • E-stops: Emergency kill switch for floor system (HANSON SPEC) fitted both sides – located at the rear and middle both sides of trailer

Hydraulics

  • Swivel Boom for hydraulic hoses 550mm down from top of headboard.
  • 1 ¼ inch ISO A coupling on the return
  • 1 inch ISO A coupling on the flow

Moving Internal Headboard Construction

  • Plough system to suit V Floor retractable from external controls
  • Manual control of plough at rear placed in box
  • Light indicator at front head to indicate correct retraction of Plough

Back Door

  • Top hinged 3 split hydraulically powered door with 22 degree inclined, bottom section passive swinging.
  • Rear lights integrated into rear door base so lifted clear of load when operating
  • Secondary air lock at the base of the doors.

WEIGHER EQUIPMENT

  • NONE SUPPLIED BUT: Electronic braking system ZF CV Distribution UK Ltd – with ON BOARD WEIGHING CAPABILITY with compatible tractor units – ask truck manufacturer for compatibility

SHEET OR COVER SYSTEM

Dawbarn sheet system (2 x 2 weave), with standard 150mm hood rise (*unless sales option over rides).

Titan 8” rise rolled flat aluminium panel to support sheet front and rear

FINISHING

Axles and suspension with manufacturer’s black anti corrosive coating. Hanger brackets, ram painted with chassis.  Primer and top coats both 2 pack paint for both chassis and body. Temperature baked in oven for correct hardness.

Chassis paint colour: Natural Alloy

Body paint colour: White

Sheet colour: Blue

DELIVERY

Ex Ridgmont, Bedfordshire or by negotiation.

SALES OPTIONS

TRAILER PRICE INCLUDING OPTIONS



Call 01525 872466 and ask for sales and quote: SN1112 or email sales@newtontrailers.com

WEIGHT AND DIMENSIONS AND OFFER

This sale offer is made under our Standard Sales Terms and Conditions enclosed or viewable on our website www.newtontrailers.com . All measurements quoted to manufacturers’ tolerances of ± 4%. Titan Trailers reserve the right to amend construction detail as necessary.

WARRANTY

1 Year guarantee on construction faults and finish faults. Individual components such as the floor mechanism, axles, and ebs carry the individual specific manufacturer's warranty.

Titan reserve the right to amend construction detail as necessary.

PAYMENT

Nett cash at the finishing of the construction and before collection

TRAILER PARTS AND SERVICE CALL 01525 872466, EMAIL parts@newtontrailers.com OR VISIT www.newtontrailers.com



We have read and agree with this order SN1112:

                                                                                  Name:



................................................

Signed on behalf of:                                                     Position in company:




 Customer Purchase Order:.................................         Date:
