Print Quotation For 1x Used 2014 SDC Biomass Moving Floor Trailer Print

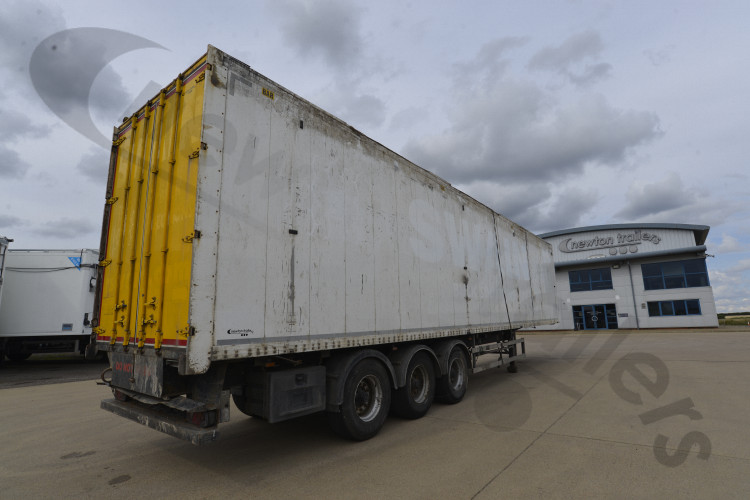

Quotation For 1x Used 2014 SDC Biomass Moving Floor Trailer

Newton Trailers Limited




Thursday, 28th March 2024

Dear Customer,

Ref: SN16311

Please find as follows your quotation for SDC SN16311 2014 SDCBA45B300125507 09 2022 C363283

Why buy a trailer from Newton? We are a family owned and run business – trading since 1964. We have been trading in moving floor trailers since 1987 and are now the largest dealer in moving floors in Europe. We get to design and also when needed to modify our supplier’s products to suit the needs of our customers in the UK market.

We maintain the largest stock of parts and spares for all the moving floor manufacturers - nearly 29 manufacturers in Europe and North America! We are agents for Keith Walking Floor and for Cargo Moving Floor.

I look forward to hearing from you.

Yours sincerely,



Newton Trailers Limited

Quotation For 1x Used 2014 SDC Biomass Moving Floor Trailer

Prepared for SN16311 SDC SN16311 2014 SDCBA45B300125507 09 2022 C363283

DIMENSIONS

Trailer Volume: ± 130 CuYds (99.4m3)

Length inside: ±

Width inside:  ± 2.470 mm

Width outside: ± 2.550 mm

Height inside front: ±

Height inside rear:  ±

Trailer Unladen Weight: ± 8750 kg

plus options

USES

Suitable for dry bulk loads: paper, sawdust, woodchip, peat & palletised loads; 6 axle UK 44T operation on road.

CHASSIS

Full Length constructed in Steel.

  • Self-supporting auxillary frame. Zinc galvanised
  • Under-run bar
  • Aluminium side protection, folding in accordance with EU regulations.

KINGPIN

  • 2” connecting pin, fitted in a 8 mm thick steel sledge plate.

LANDING LEGS

  • Landing legs

AXLE AND SUSPENSIONS

  • 3 x BPW - 9-tonne, BPW
  • Wheelbase 7.750 mm, axle spacing 1,310 - 1,310 mm

WHEELS AND TYRES

  • 6 x Part worn tyres 385/65 R22.5".
  • 6 x offset steel rims, size: 22.5 x 385 ET 120 10-holes.

BRAKES

  • 2 line air brakes to current EU regulations.
  • Load sensed system.
  • Electronic braking system Haldex Europe SAS, –
  • Parking brake through spring brakes.
  • Air tanks.

ELECTRICS

BODY

SIDEWALLS

  • Sidewall planks.

Front Headboard

  • Air - (ISO 1728) and electrical connections fitted centrally approx 750 mm up.
  • catwalk

Moving Floor System

  • Cargo CF500SL2, electrical operation (E-Control).
  • 21 plank system with Smooth 6 mm thick aluminium floor planks.

Hydraulics

  • 20 mm Ø pressure pipe on the left, 25mm Ø return pipe on the right.

Moving Internal Headboard Construction

fitted.

Back Door

  • 50:50 split barn doors with double rubber seals. Steel header bar fixed.

WEIGHER EQUIPMENT

  • NONE SUPPLIED BUT: Electronic braking system WABCO EBS – with ON BOARD WEIGHING CAPABILITY with compatible tractor units – ask truck manufacturer for compatibility

SHEET OR COVER SYSTEM

Sheets are variable items on trailers specification may differ between trailers

OTHERWISE:

Dawbarn, Manual, Roll Over Sheet Flat sheet system (2 x 2 weave), with standard 150mm hood rise (*unless sales option over rides).

Sheet attached with TIR sheet fittings (manual sheet only) / Aluminium batten strip sheet fittings (automatic sheet only)

3 straight sheet stops (depressable).

1 centre crossbar in the middle of the trailer.

FINISHING

Axles and suspension with manufacturer’s black anti corrosive coating. Hanger brackets, ram painted with chassis.  Primer and top coats both 2 pack paint for both chassis and body. Temperature baked in oven for correct hardness.

Chassis paint colour: Black

Body paint colour: White

Sheet colour: Yellow

DELIVERY

Ex Ridgmont, Bedfordshire or by negotiation.

SALES OPTIONS

TRAILER PRICE INCLUDING OPTIONS



Call 01525 872466 and ask for sales and quote: SN16311 or email sales@newtontrailers.com

WEIGHT AND DIMENSIONS AND OFFER

This sale offer is made under our Standard Sales Terms and Conditions enclosed or viewable on our website www.newtontrailers.com . All measurements quoted to manufacturers’ tolerances of ± 4%.

WARRANTY

Original manufacturers’ guarantees on body, chassis, axles, brakes, wheels, tyres, ebs, electrics, cylinder, sheet, weigher. If the trailer is outside of the original manufacturer's warranty dates then Newton Trailers Limited offers no warranty on the trailer or products other than which is discussed and negotiated at the time of purchase.

PAYMENT

Nett cash at the finishing of the construction and before collection

TRAILER PARTS AND SERVICE CALL 01525 872466, EMAIL parts@newtontrailers.com OR VISIT www.newtontrailers.com
