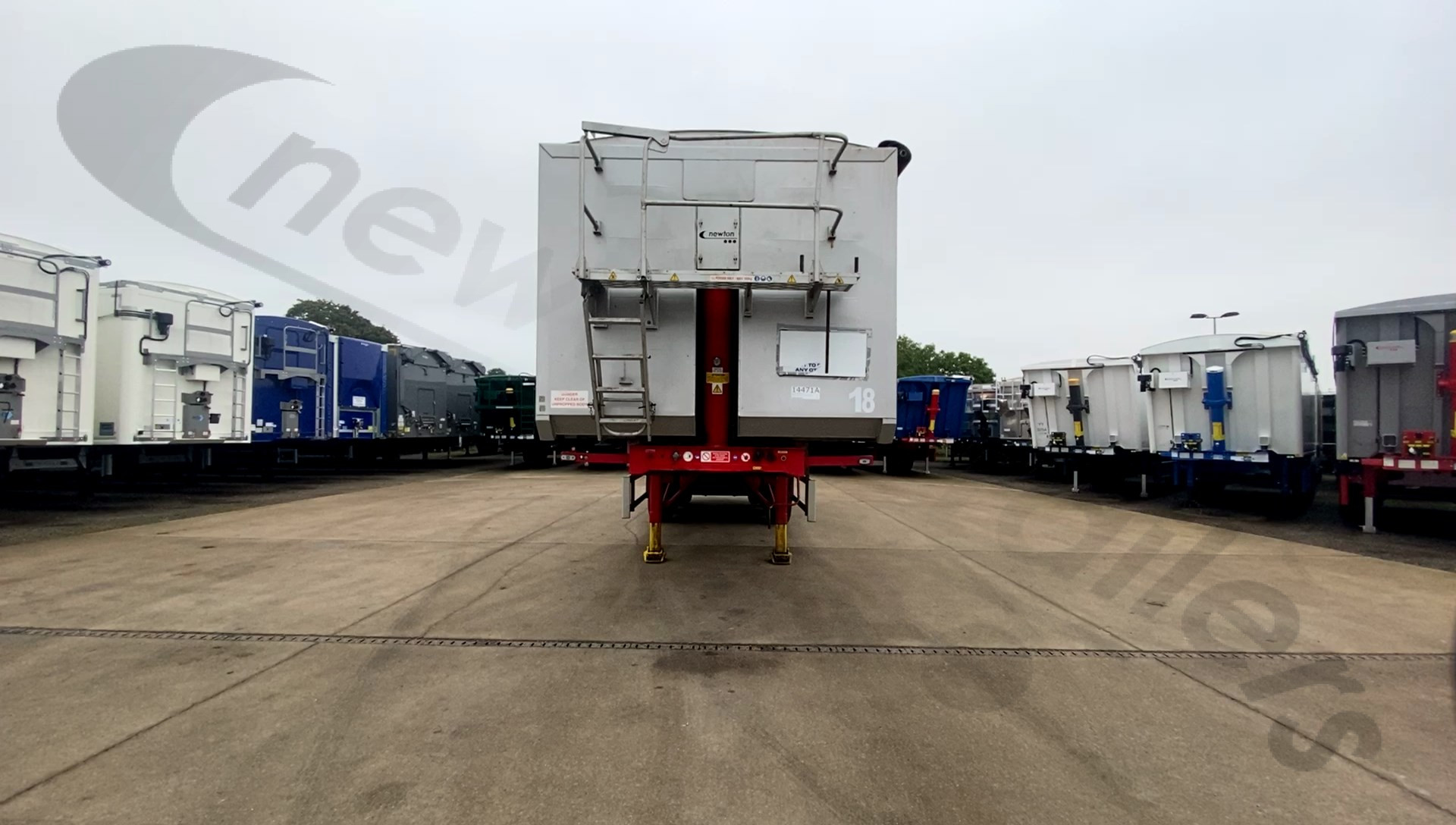

Hire Used 2019 Fruehauf Watertight Tipping Trailer
360 view Click for 360 view
360 View
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Hire Used 2019 Fruehauf Watertight Tipping Trailer
YouTube Video
Video
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Photo 1
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Photo 2
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Photo 3
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Photo 4
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Hire Used 2019 Fruehauf Watertight Tipping Trailer
Photo 5

Watertight Tipping Trailer

Year 2019
Chassis Fruehauf Limited
Body Fruehauf Limited
Volume 65 CuYds (49.7m3)
Weight 6600kgs

Full Specifications

Specifications

Chassis:

Weight 6600kgs
Type Steel Straight Frame
Suspension Air
Brakes 22.50" SAF Drum
ABS/EBS Knorr Bremse TEBS
Wheels Steel
Weigher Newton Trailers
Axles 3x SAF S9 - 4218
Axle 1 Lift
Axle 2 Fixed
Axle 3 Fixed

Body:

Volume 65 CuYds (49.7m3)
Door Top Hung
Catwalk ./
Chassis Post Office Red
Body Roadway Silver
Cover Truck Red Dawbarn Manual Roll Over Sheet Domed
Specifications

Parts Manual


For a printable parts manual for this trailer click below


Parts Manual

Description

Fruehauf Food Waste Watertight Tipping Trailer For Sale

Full Description

Description

Fruehauf Food Waste Watertight Tipping Trailer For Sale

65 Cuyd Planker body

Side Wall: 50 mm thick aluminium plank-sided wall. 4.2 mm inside skin, 2.8 mm outside skin. Planks are clipped together, then fully seam-welded on the inside. 45 degree side profile at base.Floor: 6 mm aluminium sheet, rear 1200m in 8mm.
Backdoor: 4 sided rubber seal, special hinges, 4.76mm thick with 4 off top hinges, from rear header bar.
6 off twist locks style cattle clamps, 1 on each side; 4 x twist locks at base of door; tailgate locking bar with 5 tabs.
Turner Active Pressure Autogate fitted. This door type means that if pressure from the load has built up there is a clamp rear door mechanism that should not jump or be defeated. This is a safety feature and costly.
Rubber sealed
Manual Sheet System with surge plates front and rear to prevent load sloshing and lifting the sheet under acceleration and braking.
Sheet attached with TIR sheet fittings. Pull cord for easy closing of the sheet.
3 straight sheet stops (depressable).
1 centre crossbar in the middle of the trailer.

Front Catwalk with hinged ladder

Fruehauf on Board Weigher with Chassis mounted readout

Fruehauf Watertight Trailer for Sale; Fruehauf Offal Specification Trailer for Sale; Fruehauf Food Waste Bulker for Sale



Description

Description

Fruehauf Food Waste Watertight Tipping Trailer For Sale

65 Cuyd Planker body

Side Wall: 50 mm thick aluminium plank-sided wall. 4.2 mm inside skin, 2.8 mm outside skin. Planks are clipped together, then fully seam-welded on the inside. 45 degree side profile at base.Floor: 6 mm aluminium sheet, rear 1200m in 8mm.
Backdoor: 4 sided rubber seal, special hinges, 4.76mm thick with 4 off top hinges, from rear header bar.
6 off twist locks style cattle clamps, 1 on each side; 4 x twist locks at base of door; tailgate locking bar with 5 tabs.
Turner Active Pressure Autogate fitted. This door type means that if pressure from the load has built up there is a clamp rear door mechanism that should not jump or be defeated. This is a safety feature and costly.
Rubber sealed
Manual Sheet System with surge plates front and rear to prevent load sloshing and lifting the sheet under acceleration and braking.
Sheet attached with TIR sheet fittings. Pull cord for easy closing of the sheet.
3 straight sheet stops (depressable).
1 centre crossbar in the middle of the trailer.

Front Catwalk with hinged ladder

Fruehauf on Board Weigher with Chassis mounted readout

Fruehauf Watertight Trailer for Sale; Fruehauf Offal Specification Trailer for Sale; Fruehauf Food Waste Bulker for Sale
