| Year | 2019 |
|---|---|
| Chassis | Fruehauf Limited |
| Body | Fruehauf Limited |
| Volume | 70 CuYds (53.5m3) |
| Weight | 6300kgs |
| Stock No. | SN14647 |
|---|---|
| Type | Plank Sided Tipping Trailer |
| Chassis | Fruehauf |
| Body | Fruehauf |
| Year | 2019 |
| MOT | 02/2027 C513942 |
| Documents |  Parts Manual |
| eCO2 | 65000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 6300kgs |
|---|---|
| Type | Steel Sloper Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SK7 Disc |
| ABS/EBS | Knorr Bremse TEBS |
| Wheels | Alloy |
| Weigher | VWS |
| Axles | 3x SAF B9 22K01 |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 70 CuYds (53.5m3) |
|---|---|
| Door | Top Hung |
| Chassis | Post Office Red |
| Body | Roadway Silver |
| Cover | Truck Red Dawbarn Hydraulic Roll Over Sheet Hydroclear |
70 cuyd alloy body on a sloper PERFORMANCE chassis. This chassis type is the lightest that Fruehauf have developed.
SAF discs with front lift axle - auto lift auto drop with over ride for traction assist set.
Alloy offset polished wheels

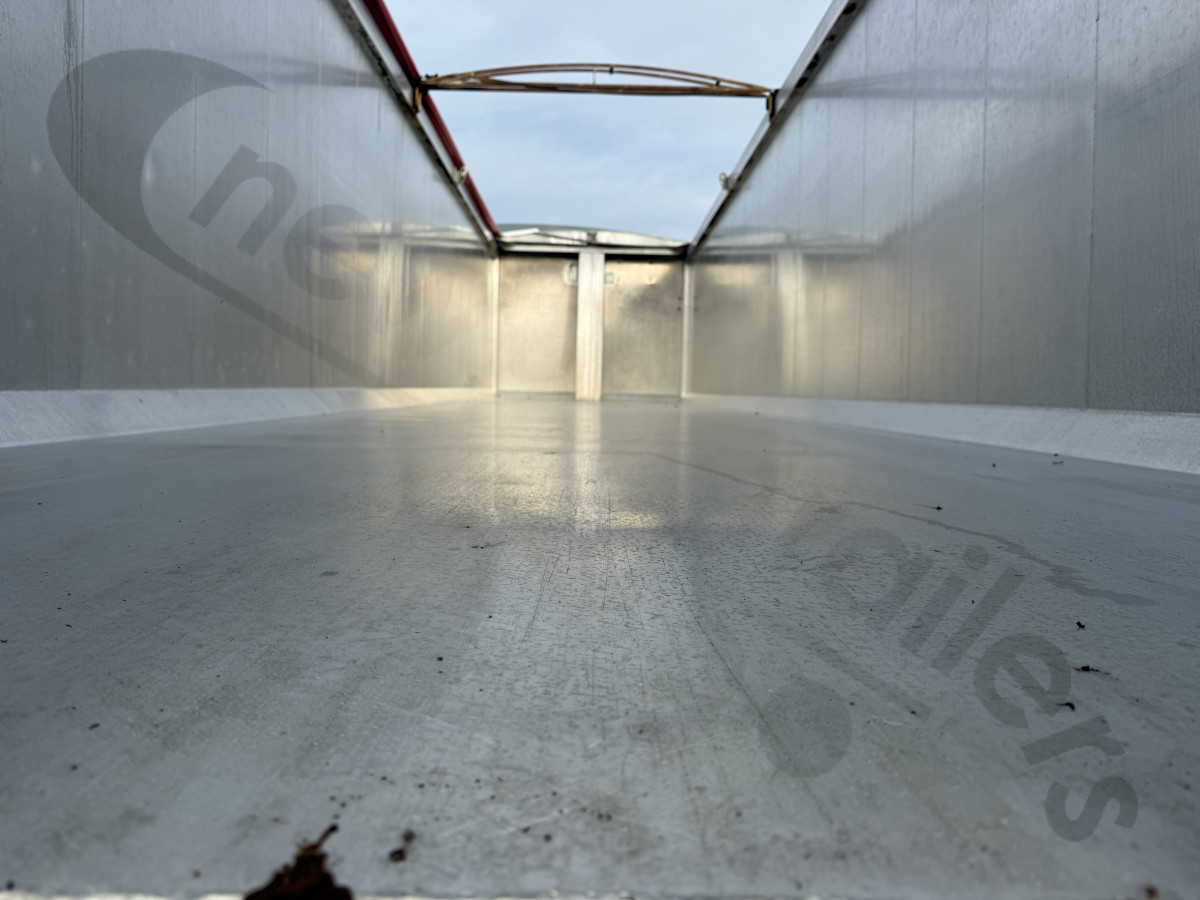

6 mm floor forward - laid as single sheet for strength
8 mm floor to rear of trailer for wear resistance
Side fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Rear under run bar
Rear towing eyes attached to under run bar
Side impact bars
Fruehauf weighing system - full electronic four cell system with chassis mounted indicator.
Silver Metallic Body and Chassis Colour - with clear coat laquer finish.
Dawbarn Hydroclear automatic sheet system
Fruehauf Tipping Trailers are UK constructed. They are currently by a very long way the UK's largest manufacturer of tipping trailers - with a total annual capacity of 800 tipping trailers. Fruehauf have a long history in the UK market and are to the go to product for payload, quality and performance.
70 cuyd alloy body on a sloper PERFORMANCE chassis. This chassis type is the lightest that Fruehauf have developed.
SAF discs with front lift axle - auto lift auto drop with over ride for traction assist set.
Alloy offset polished wheels
6 mm floor forward - laid as single sheet for strength
8 mm floor to rear of trailer for wear resistance
Side fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Rear under run bar
Rear towing eyes attached to under run bar
Side impact bars
Fruehauf weighing system - full electronic four cell system with chassis mounted indicator.
Silver Metallic Body and Chassis Colour - with clear coat laquer finish.
Dawbarn Hydroclear automatic sheet system
Fruehauf Tipping Trailers are UK constructed. They are currently by a very long way the UK's largest manufacturer of tipping trailers - with a total annual capacity of 800 tipping trailers. Fruehauf have a long history in the UK market and are to the go to product for payload, quality and performance.
| Stock No. | SN14647 |
|---|---|
| Type | Plank Sided Tipping Trailer |
| Chassis | Fruehauf |
| Body | Fruehauf |
| Year | 2019 |
| MOT | 02/2027 C513942 |
| Documents | Parts Manual |
| eCO2 | 65000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 6300kgs |
|---|---|
| Type | Steel Sloper Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SK7 Disc |
| ABS/EBS | Knorr Bremse TEBS |
| Wheels | Alloy |
| Weigher | VWS |
| Axles | 3x SAF B9 22K01 |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 70 CuYds (53.5m3) |
|---|---|
| Door | Top Hung |
| Chassis | Post Office Red |
| Body | Roadway Silver |
| Cover | Truck Red Dawbarn Hydraulic Roll Over Sheet Hydroclear |
