| Year | 2019 |
|---|---|
| Chassis | Knapen Trailers BV. |
| Body | Knapen Trailers BV. |
| Volume | 120 CuYds (91.7m3) |
| Weight | 7950kgs |
| Stock No. | SN16197 |
|---|---|

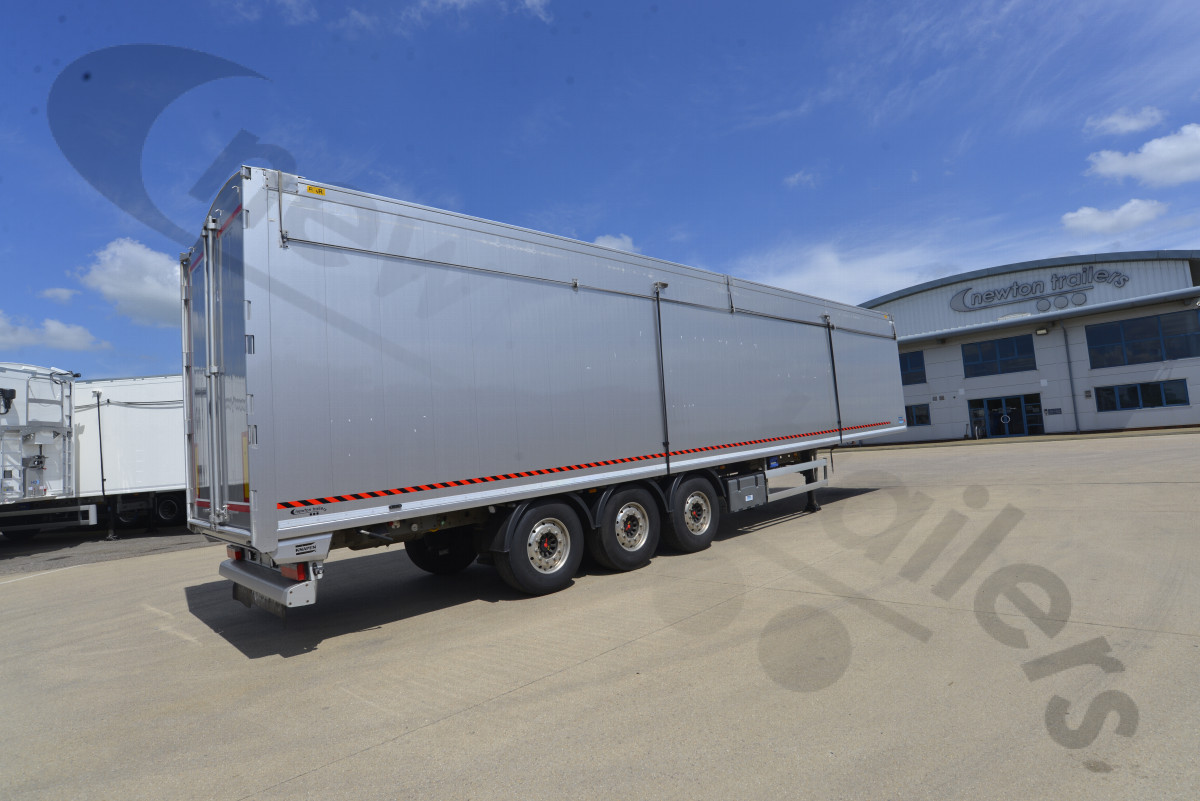

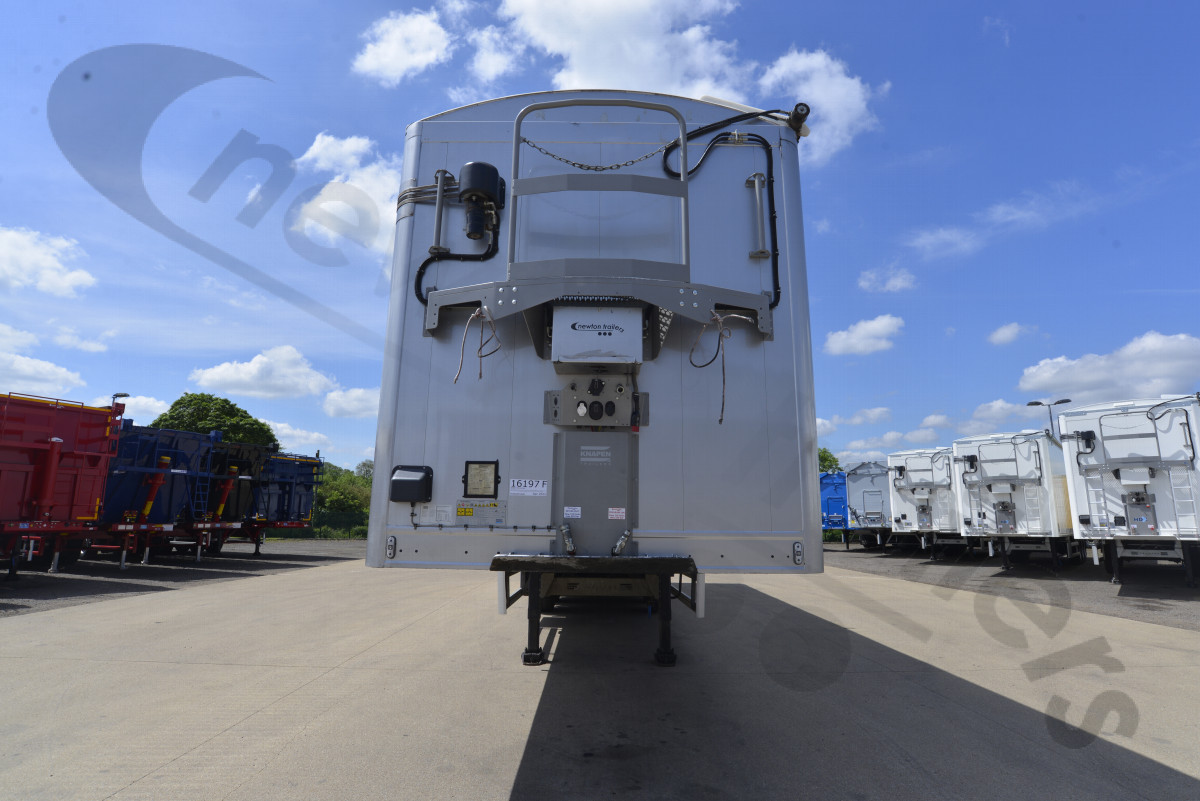

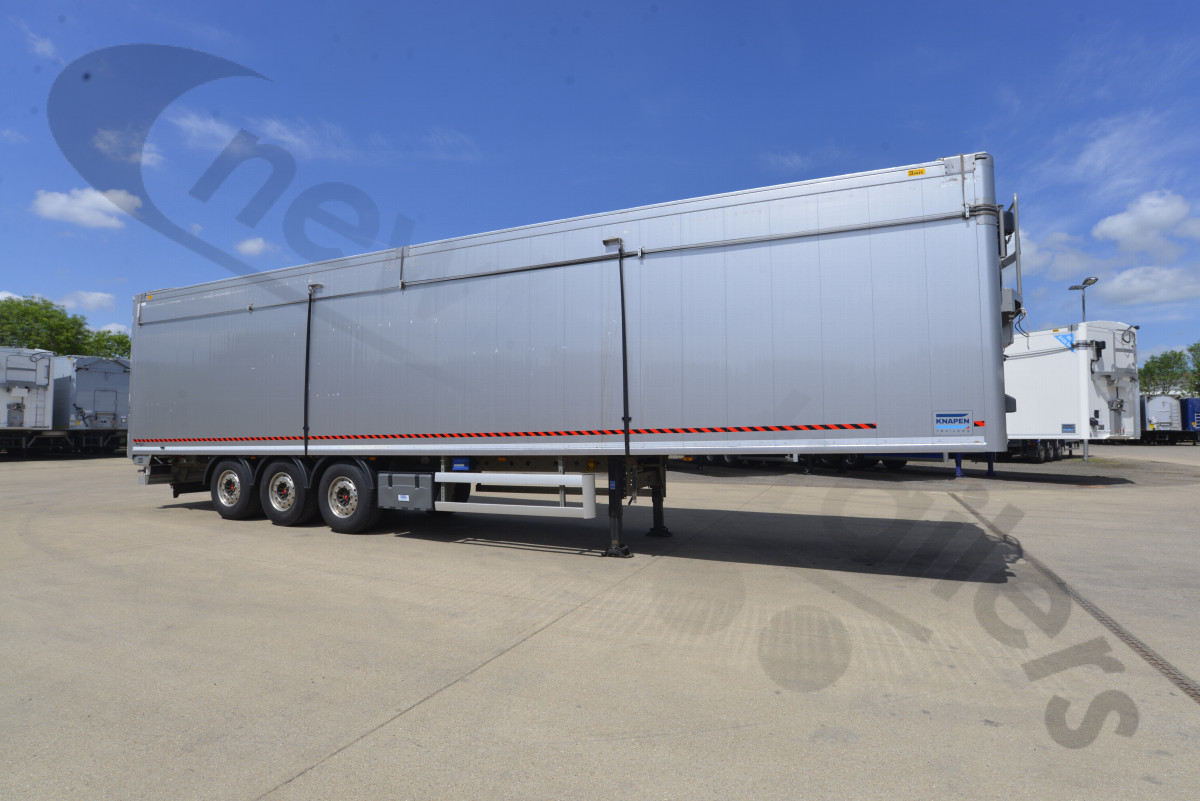

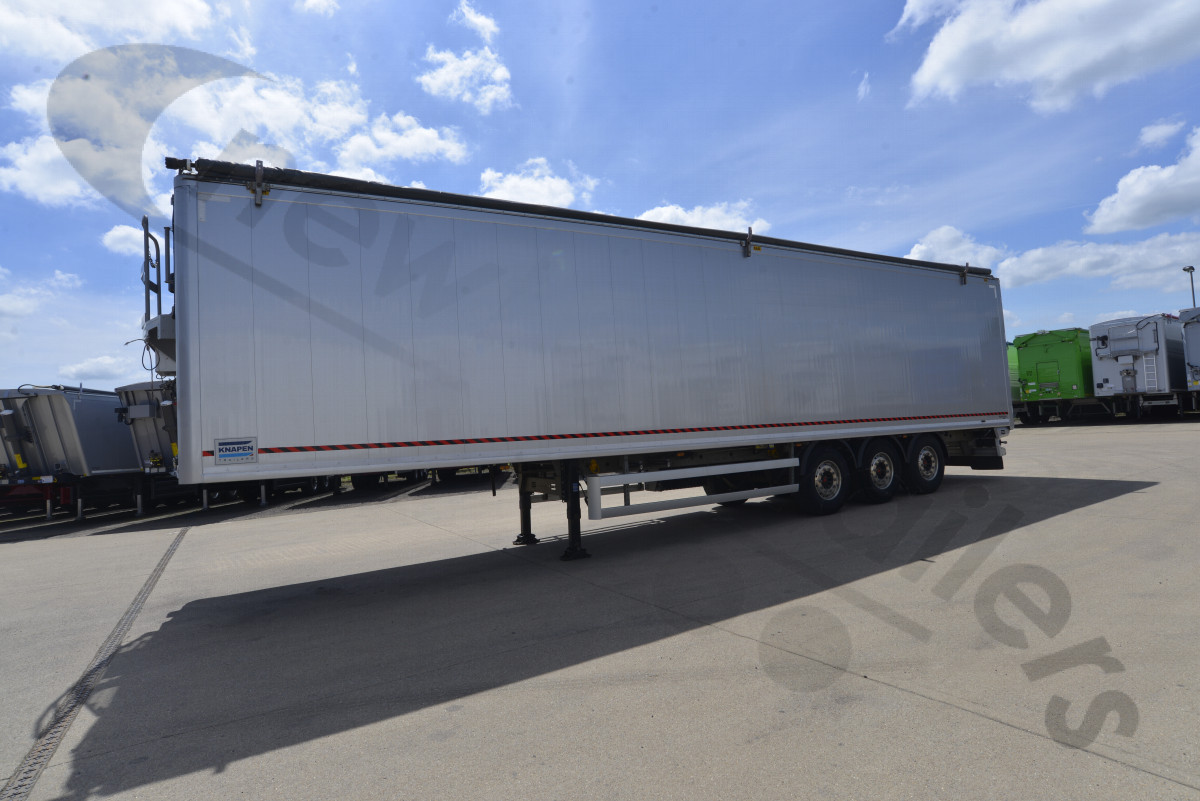

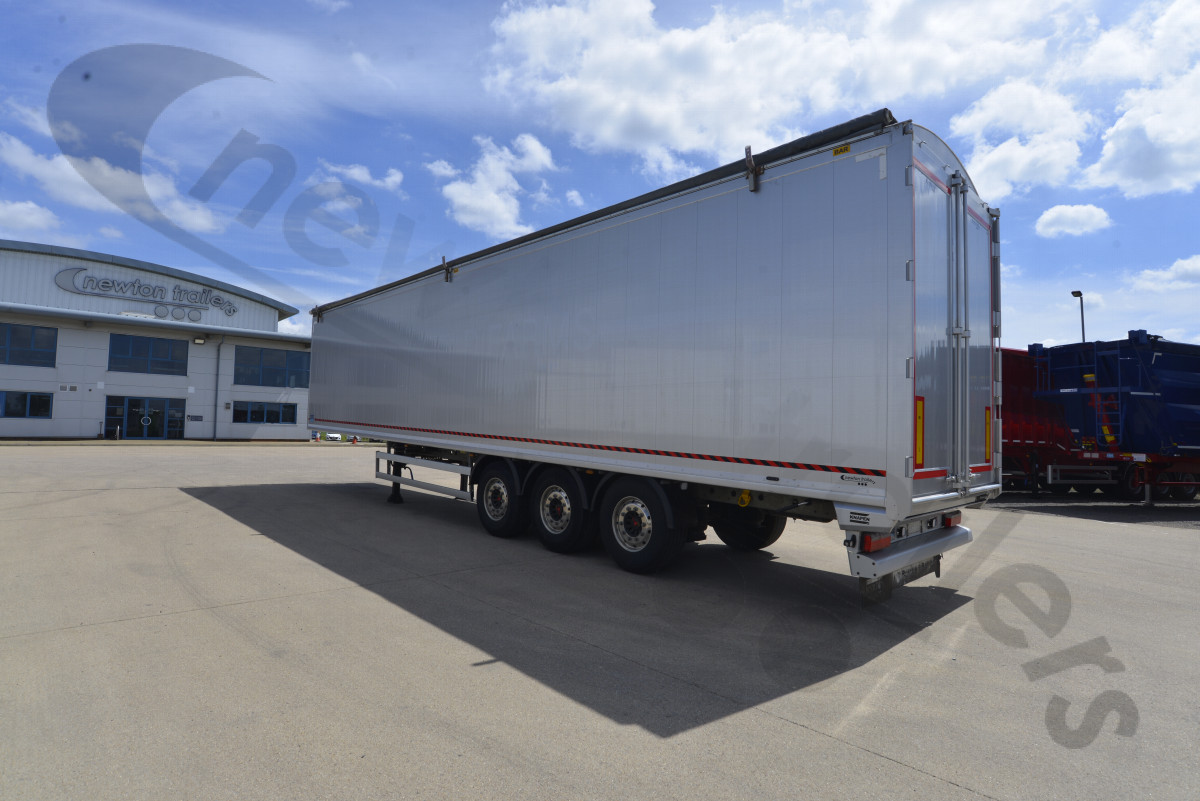

| Type | Biomass Moving Floor Trailer |
| Chassis | Knapen |
| Body | Knapen |
| Year | 2019 |
| MOT | 06/2026 C512290 |
| Documents |  Parts Manual |
| eCO2 | 75000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 7950kgs |
|---|---|
| Type | Steel Sub-Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SBS Disc |
| ABS/EBS | WABCO EBS-E |
| Wheels | Alloy |
| Axles | 3x SAF BI9 22S SBS |
| Volume | 120 CuYds (91.7m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Floor System | Cargo CF500SL-C |
| Floor Slats | 21x 10mm Smooth |
| Floor Parts | |
| Headboard | Moving |
| Chassis | Galvanised |
| Body | Volvo Silver 7HYPB |
| Cover | Seawolf Blue Dawbarn Hydraulic Roll Over Sheet Hydroclear |
120 cuyd on a K100 steel galvanised chassis
Tri axle on air
Xlite polished alloy wheels
SAF off-road axles and SAF disc brakes
21 plank x 10mm aluminium Cargo Floor system
Dawbarn Hydroclear automatic sheet system
50:50 barn doors with air operated rear door safety lock
Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Full robot side welding, door welding and headboard welding for perfection every time
Conical body shape gives a better discharge
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
4 extra cross members at rear of trailer for forklift loading
UK reinforced lead up plate and a heavy duty king pin, 18 tonne capability (Knapen being Dutch are used to 55 tonne total weight)
Stainless steel wear plate at the rear
1000mm x 2000mm wear plates at the rear end of the trailer
Moving internal headboard
Wander lead remote control
Side impact bars and rear underrun bar
Catwalk and toolbox
120 cuyd on a K100 steel galvanised chassis
Tri axle on air
Xlite polished alloy wheels
SAF off-road axles and SAF disc brakes

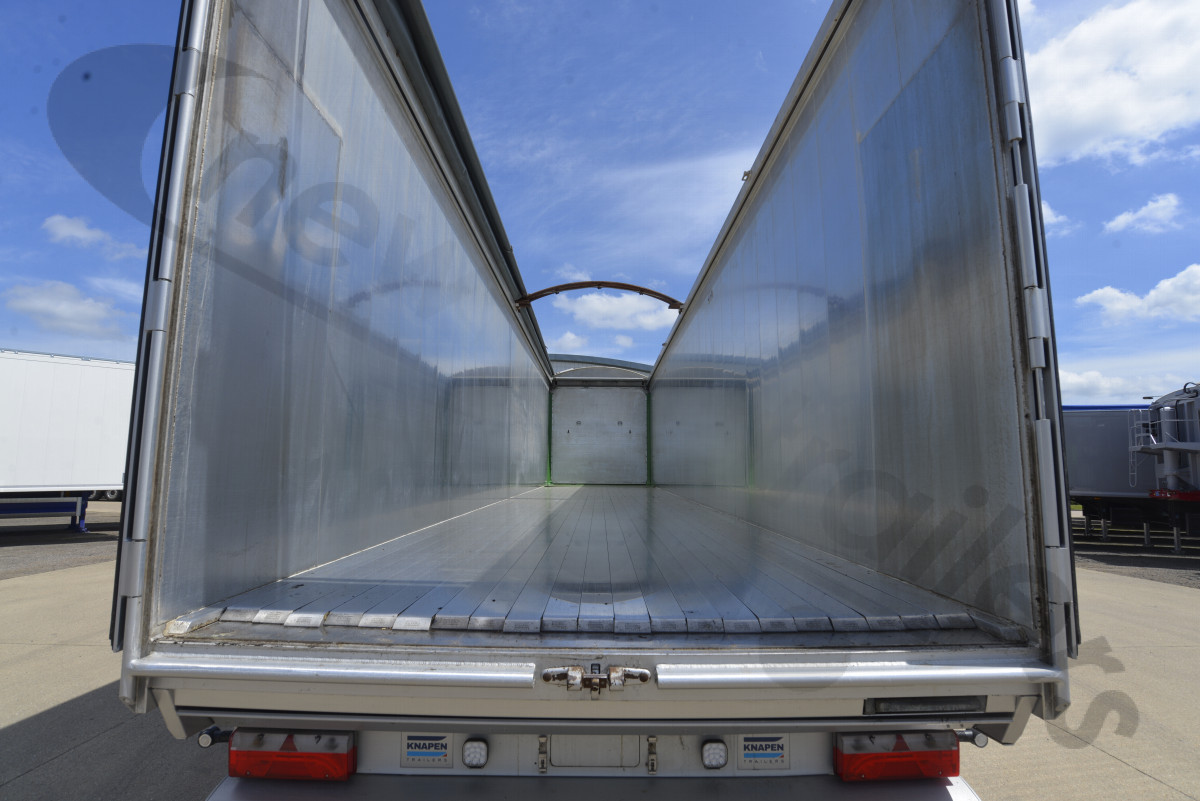

21 plank x 10mm aluminium Cargo Floor system
Dawbarn Hydroclear automatic sheet system
50:50 barn doors with air operated rear door safety lock
Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)
Full robot side welding, door welding and headboard welding for perfection every time
Conical body shape gives a better discharge
Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
4 extra cross members at rear of trailer for forklift loading
UK reinforced lead up plate and a heavy duty king pin, 18 tonne capability (Knapen being Dutch are used to 55 tonne total weight)
Stainless steel wear plate at the rear
1000mm x 2000mm wear plates at the rear end of the trailer
Moving internal headboard
Wander lead remote control
Side impact bars and rear underrun bar
Catwalk and toolbox
