Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
360 view Click for 360 view
360 View
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
YouTube Video
Video
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Photo 1
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Photo 2
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Photo 3
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Photo 4
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Hire Used 2017 Titan UK Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door
Photo 5

Heavy Duty Waste & Landfill Moving Floor Trailer Hydraulic Door

Year 2017
Chassis Titan Trailers Industries Limited
Body Titan Trailers Industries Limited
Volume 124 CuYds (94.8m3)
Weight 9000kgs

Full Specifications

Specifications

Chassis:

Weight 9000kgs
Type Alloy Sub-Frame
Suspension Air
Brakes 22.50" SAF SK7 Disc
ABS/EBS ZF CV Distribution UK Ltd EBS-E
Wheels Alloy
Axles 3x SAF B9 22K01

Body:

Volume 124 CuYds (94.8m3)
Door Hydraulic

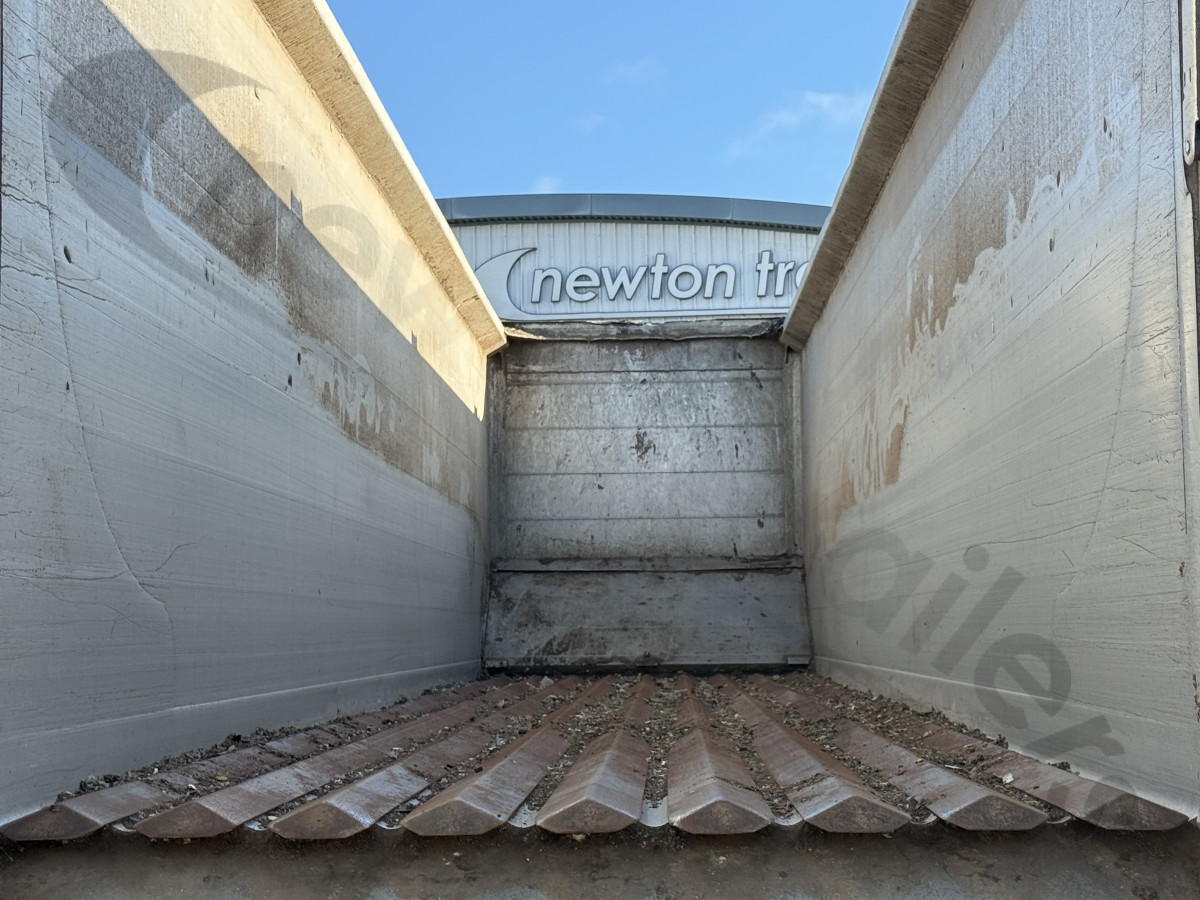

Floor System Keith Running Floor 2
Floor Slats 9x 4mm V Steel
Floor Parts 5661701
Chassis Natural
Body Unpainted
Cover Net Titan UK Hydraulic Net System 50:50 Split
Specifications

Parts Manual


For a printable parts manual for this trailer click below


Parts Manual

Description

TITAN Walking Floor With Hydraulic Single Piece Door For Sale

Full Description

Description

TITAN Walking Floor With Hydraulic Single Piece Door For Sale

THE KING OF LANDFILL & HEAVY WASTE
Unique patented design and construction methods combine to give superior strength at very low weight with the lowest possible whole life cost
130 cuyd capacity so larger than standard trailer size
EXTRA Heavy duty top rail
One of the best reasons to buy a Titan Walking Floor: ZERO TIE BARS
Patented longitudinal panel design allowing for optimised sidewall design
Super Heavy Duty side wall for the 2 x base side panels (thicker than traditional Horizontal panels with an added wear plate)
Extra Heavy Duty side wall for the upper side panels
Side wall fully seam welded on both the OUTSIDE and the INSIDE - no one other than TITAN can do this
SAF Disc Brakes

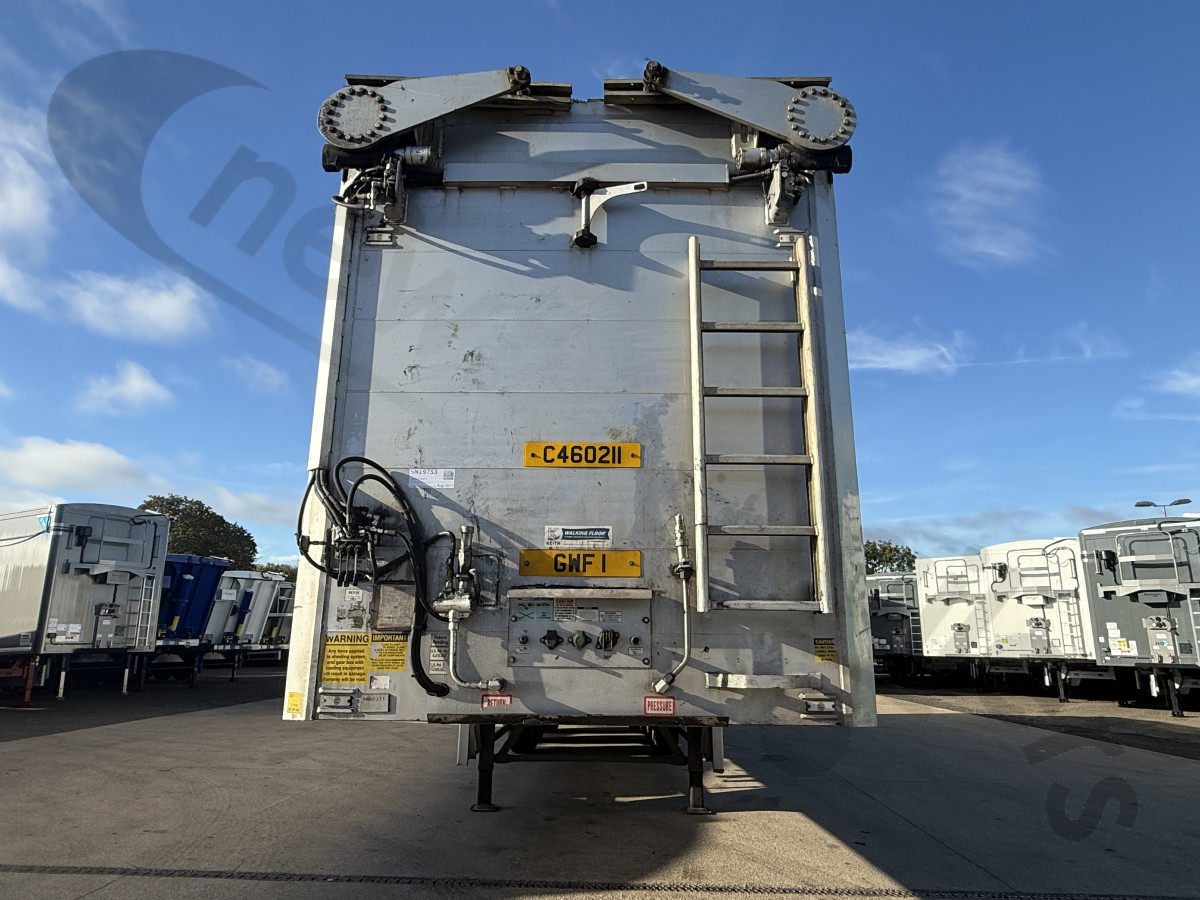

Single piece hydraulic door opening to a 90 degree angle
TITAN Automatic Net System - no one even gets close to the capability and reliability of this net system
Front Man Door and step - to access trailer from the front
Automatic Door Safety Lock at Base - stand clear in safety when you release the load
EXPLOSION WELDED STEEL TO ALUMINIUM rubbing plate - again unique to TITAN - generates massive strength and weight savings

Titan Trailer for Sale; Titan Heavy Waste Specification For Sale

Description

Quote


For a printable quote for this trailer click below


Get a Quote


Description

TITAN Walking Floor With Hydraulic Single Piece Door For Sale

THE KING OF LANDFILL & HEAVY WASTE
Unique patented design and construction methods combine to give superior strength at very low weight with the lowest possible whole life cost
130 cuyd capacity so larger than standard trailer size
EXTRA Heavy duty top rail
One of the best reasons to buy a Titan Walking Floor: ZERO TIE BARS
Patented longitudinal panel design allowing for optimised sidewall design
Super Heavy Duty side wall for the 2 x base side panels (thicker than traditional Horizontal panels with an added wear plate)
Extra Heavy Duty side wall for the upper side panels
Side wall fully seam welded on both the OUTSIDE and the INSIDE - no one other than TITAN can do this
SAF Disc Brakes
Single piece hydraulic door opening to a 90 degree angle
TITAN Automatic Net System - no one even gets close to the capability and reliability of this net system
Front Man Door and step - to access trailer from the front
Automatic Door Safety Lock at Base - stand clear in safety when you release the load
EXPLOSION WELDED STEEL TO ALUMINIUM rubbing plate - again unique to TITAN - generates massive strength and weight savings

Titan Trailer for Sale; Titan Heavy Waste Specification For Sale
