| Year | 2016 |
|---|---|
| Chassis | Montracon Limited |
| Body | C-Tec Commercial Vehicle Engineering |
| Volume | 75 CuYds (57.3m3) |
| Weight | 11500kgs |
| Stock No. | SN17667 |
|---|---|
| Type | Steel Body Tipping Trailer |
| Chassis | Montracon |
| Body | C-Tec |
| Year | 2016 |
| MOT | 03/2026 C448232 |
| Documents |  Parts Manual |
| eCO2 | 55000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 11500kgs |
|---|---|
| Type | Steel Step Frame |
| Suspension | Air |
| Brakes | 22.50" Knorr Bremse SK7 Disc |
| ABS/EBS | Haldex Europe SAS 2S/2M Gen3 EBS |
| Wheels | Alloy |
| Weigher | PM OnBoard |
| Axles | 3x DCA |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 75 CuYds (57.3m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Chassis | Red |
| Body | Black |
| Cover | 50:50 Net Dawbarn Manual Net System 50:50 Split |

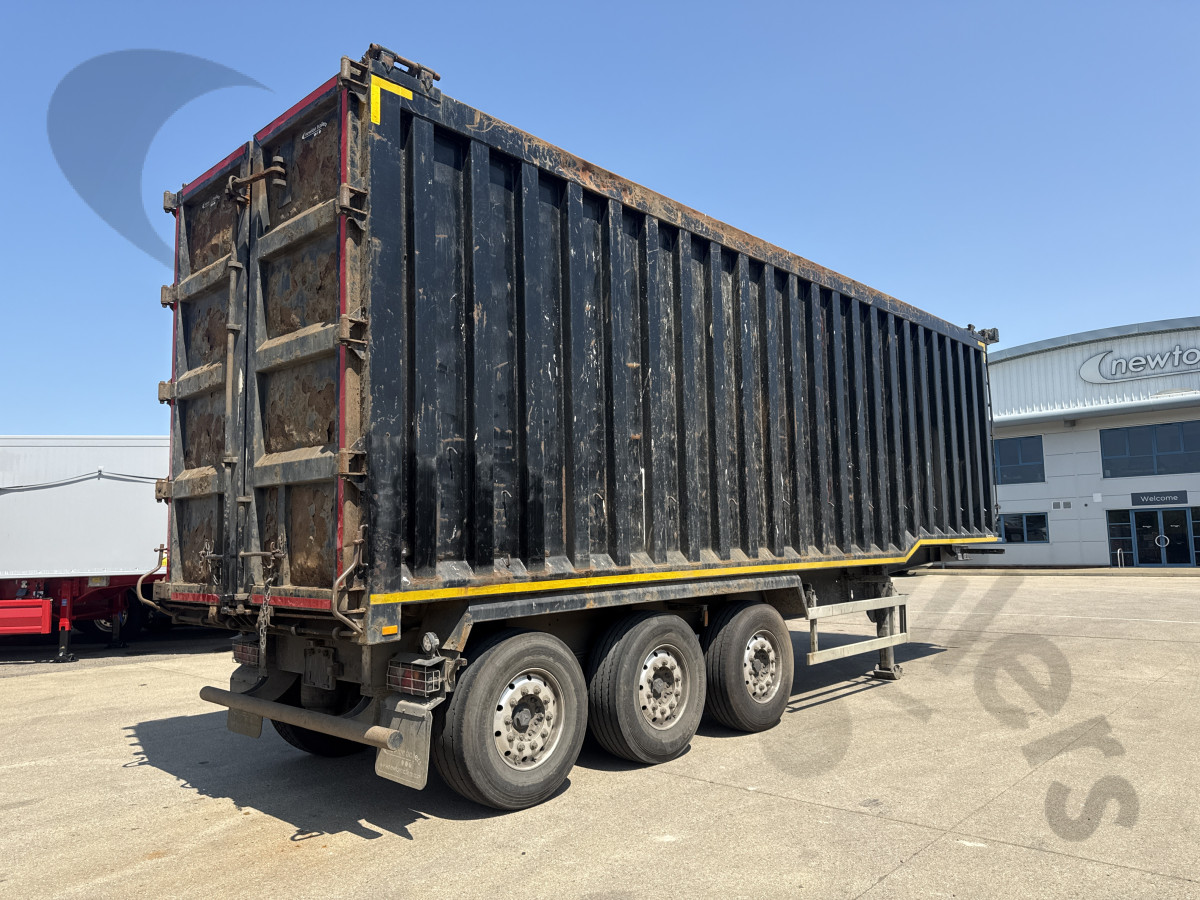

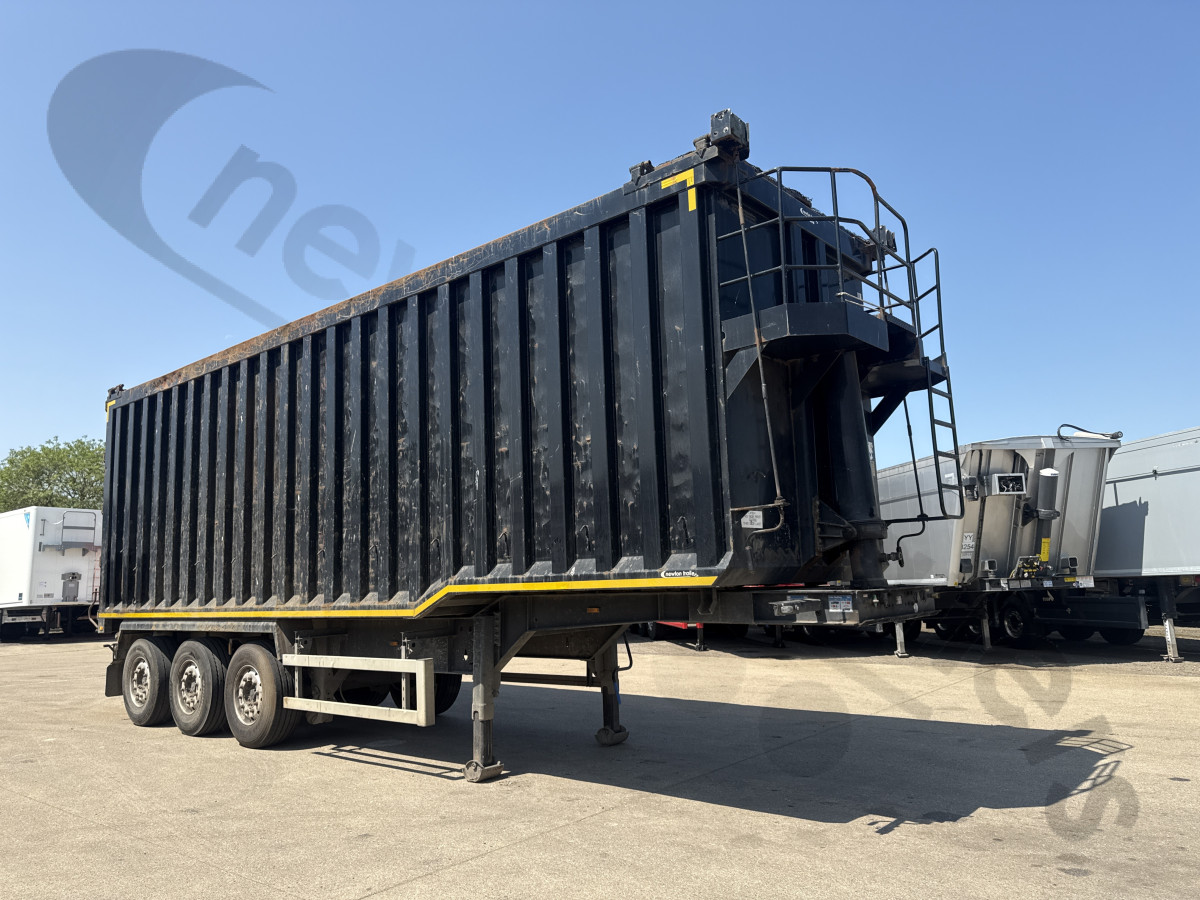

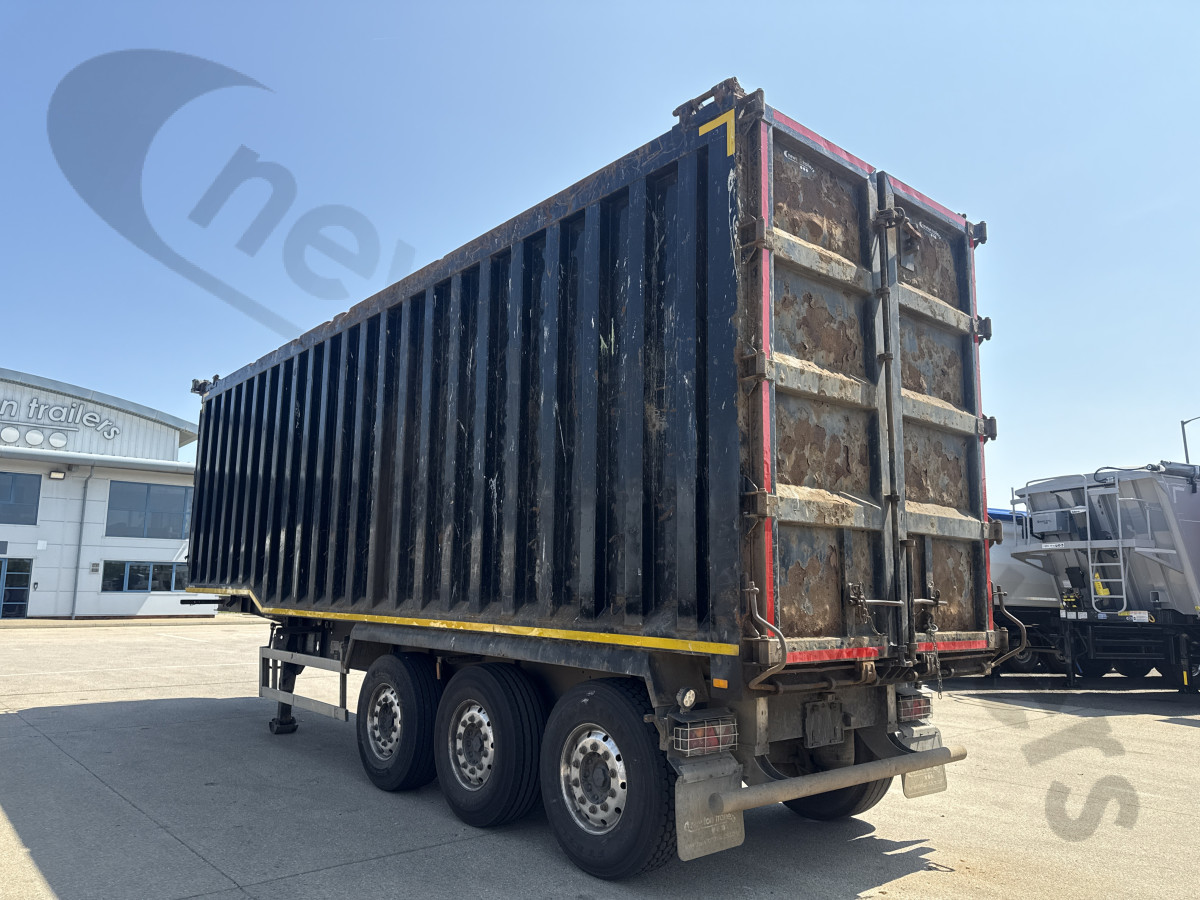

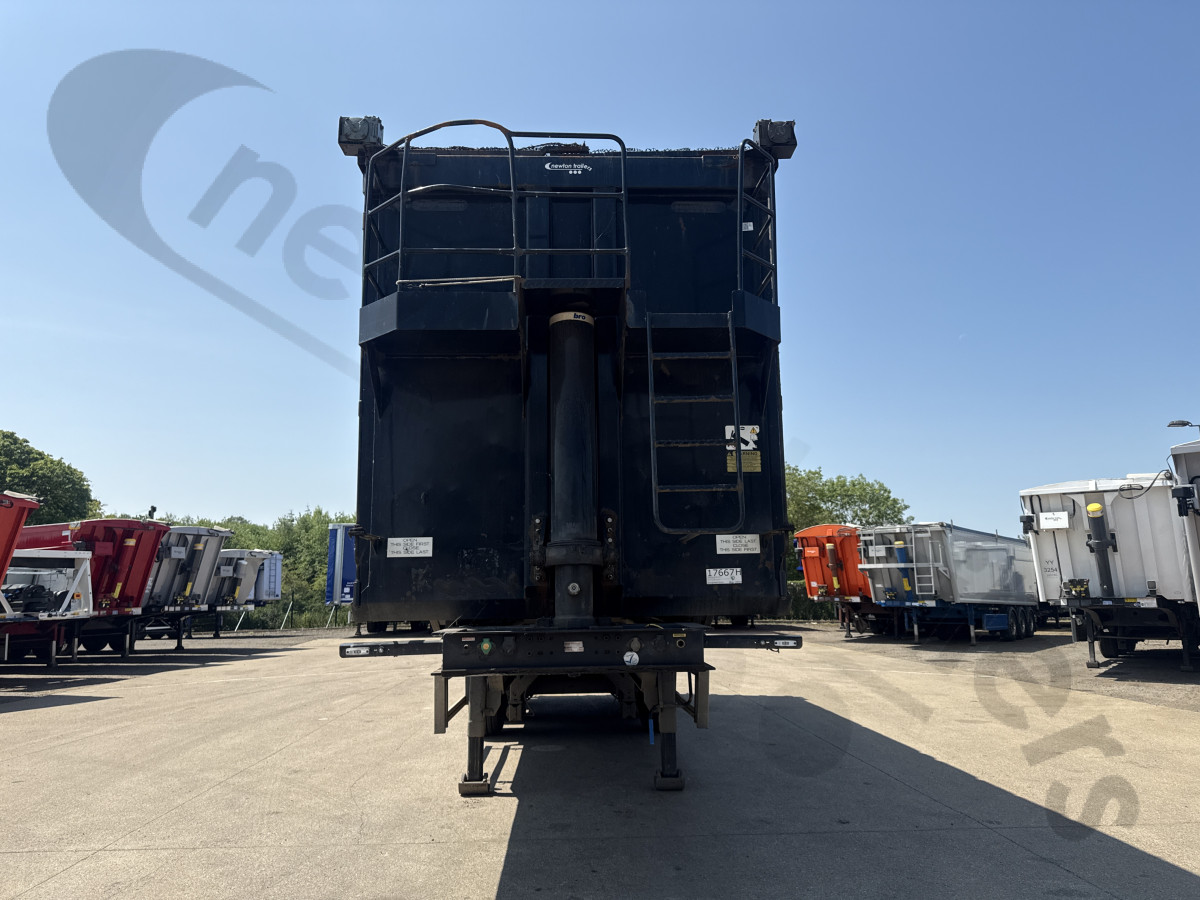

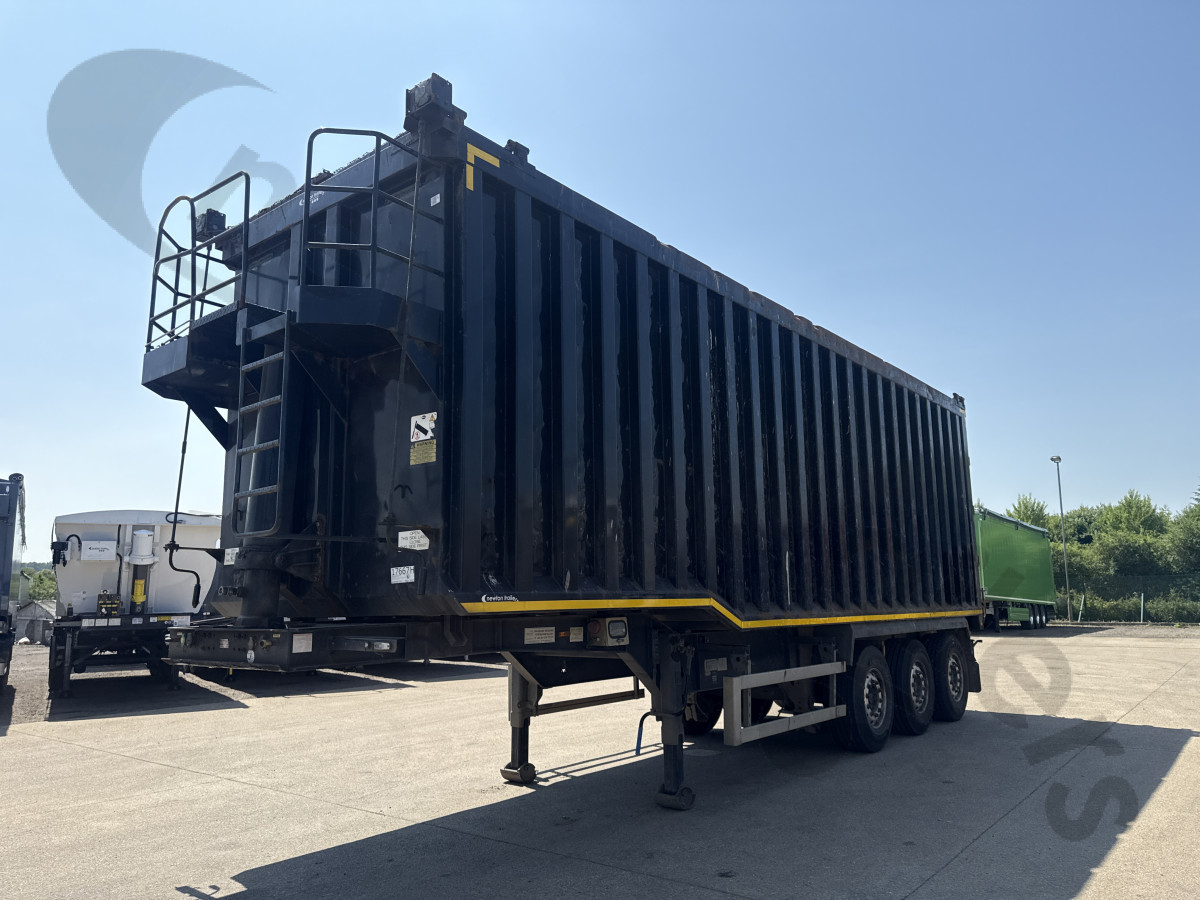

75 cuyd steel body on a steel step frame chassis
Tri axle on air with a front lift

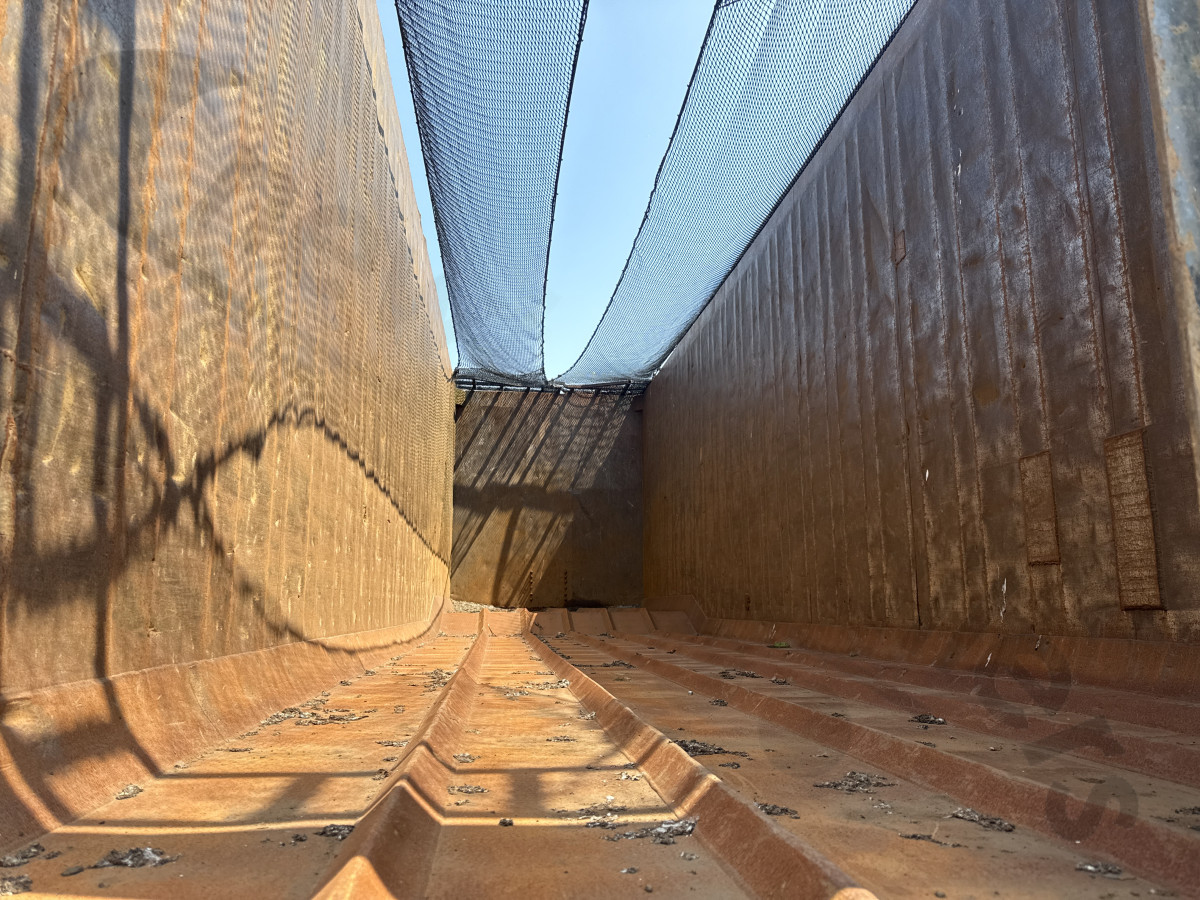

5 mm Hardox Floor
3 mm Domex side
Mercedes DCA Axles
Knorr Bremse disc brakes and Haldex EBS system
PM OnBoard Weighing system with chassis mounted readout
50:50 barn doors
Dawbarn manual 50:50 netting system
Catwalk
75 cuyd steel body on a steel step frame chassis
Tri axle on air with a front lift
5 mm Hardox Floor
3 mm Domex side
Mercedes DCA Axles
Knorr Bremse disc brakes and Haldex EBS system
PM OnBoard Weighing system with chassis mounted readout
50:50 barn doors
Dawbarn manual 50:50 netting system
Catwalk
