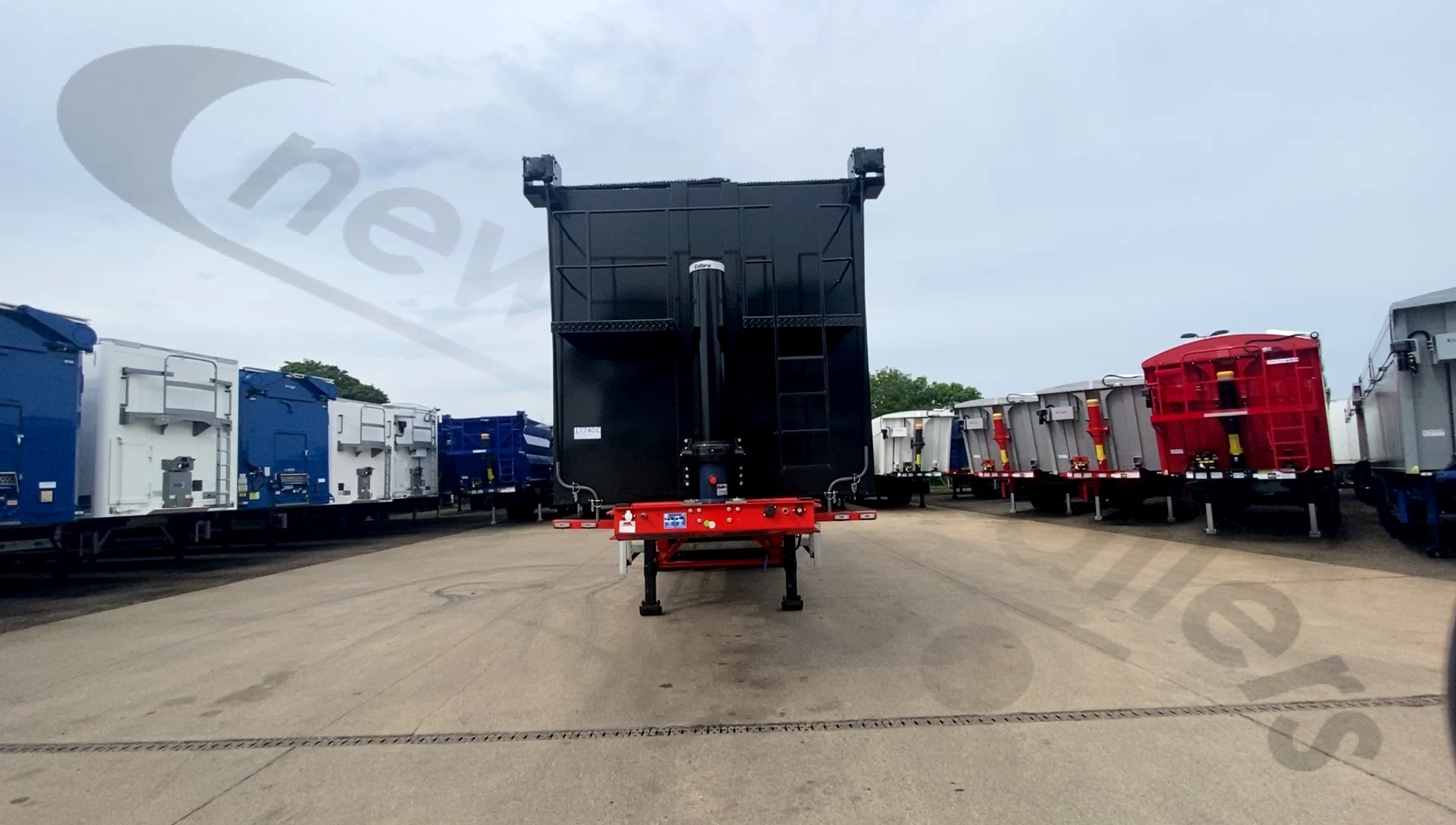

80 cuyd hardox steel body on a steel step frame chassis
Tri axle on air with a front lift axle
DCA axles, disc brakes and Haldex EBS system
RTB weighing system four cell electronic weigher with chassis mounted readout
50:50 Barn doors
5 Floor angles for extra resistance
Catwalk
Dawbarn manual 50:50 netting system
Stock No. | SN17740 |
---|---|
Type | Steel Body Tipping Trailer |
Chassis | SDC |
Body | Draycott |
Model | Steel Body Stepframe 80 Cu yd |
Year | 2023 (new) |
MOT | C589035 |
Documents | ![]() |
eCO2 | 55000kg |
---|---|
Confidence | 1 (low) |
Checked | 16/11/2022 |
Weight | 10650kgs |
---|---|
Type | Steel Step Frame |
Suspension | Air |
Brakes | 22.50" Knorr Bremse SK7 Disc |
ABS/EBS | Haldex Europe SAS |
Wheels | Steel |
Weigher | Newton Trailers |
Axles | 3x DCA |
Axle 1 | Lift |
Axle 2 | Fixed |
Axle 3 | Fixed |
Volume | 80 CuYds (61.2m3) |
---|---|
Door | Barn Door 50:50 |
Catwalk | ![]() |
Chassis | Post Office Red 0438 |
Body | Black |
Cover | Dawbarn Manual Net System 50:50 Split |
