197825 Load Cell Trunnion 60.5mm Bore - Edbro/Hyva Rams Up To 18"

197825 Load Cell Trunnion 60.5mm Bore - Edbro/Hyva Rams Up To 18"
n1004225.pdf

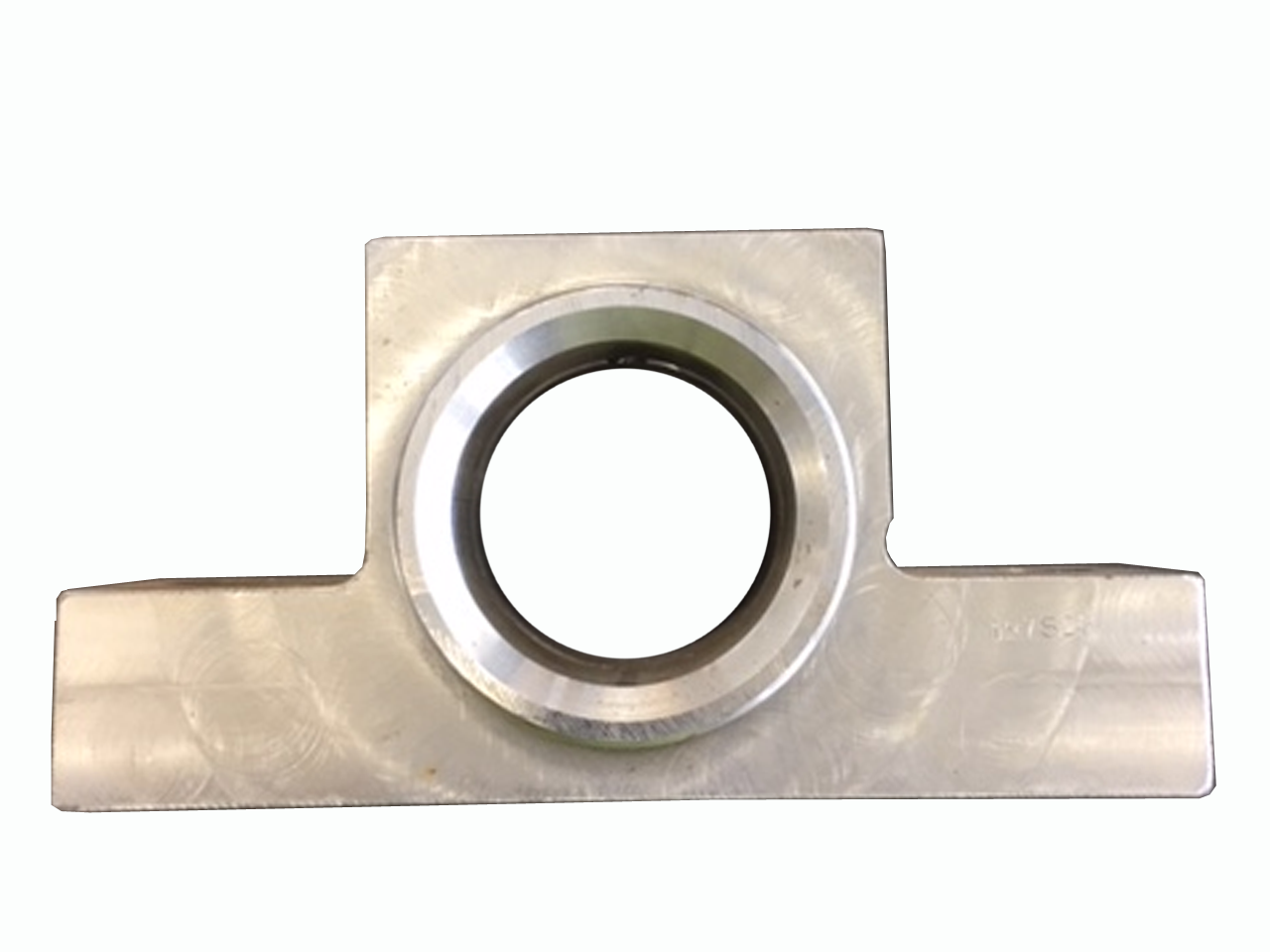

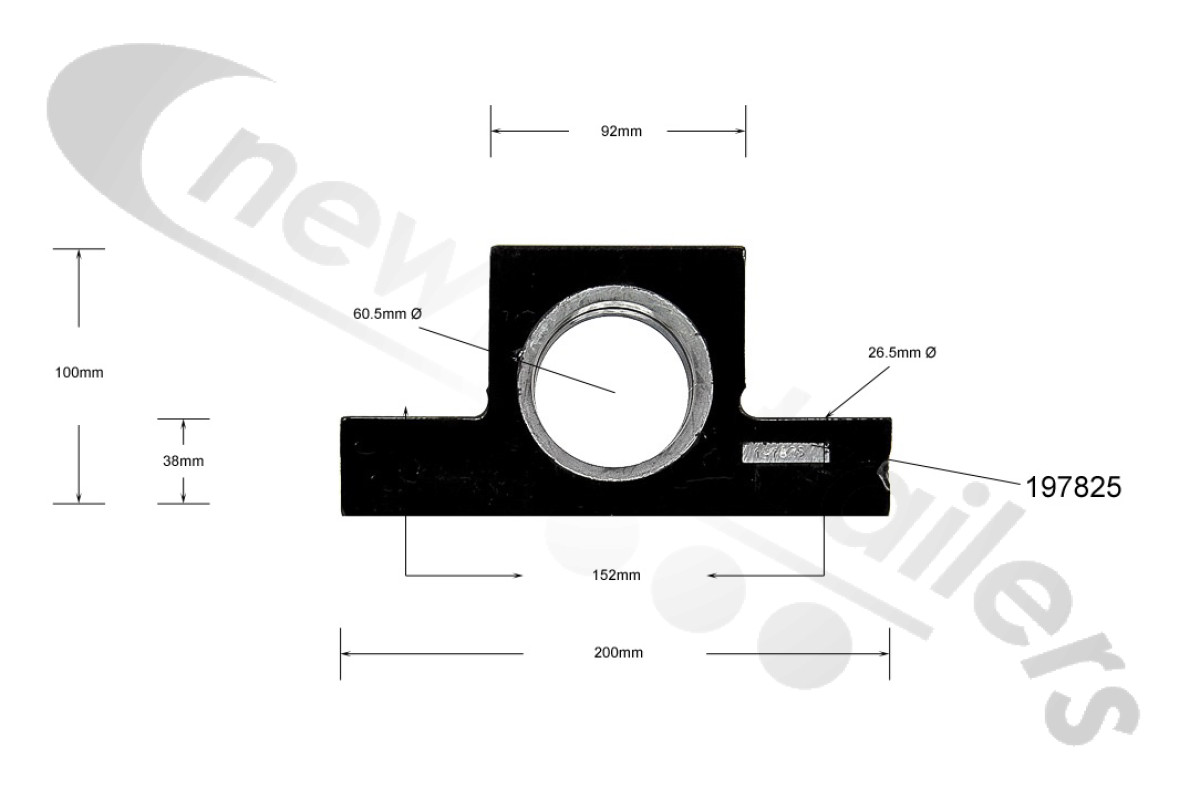

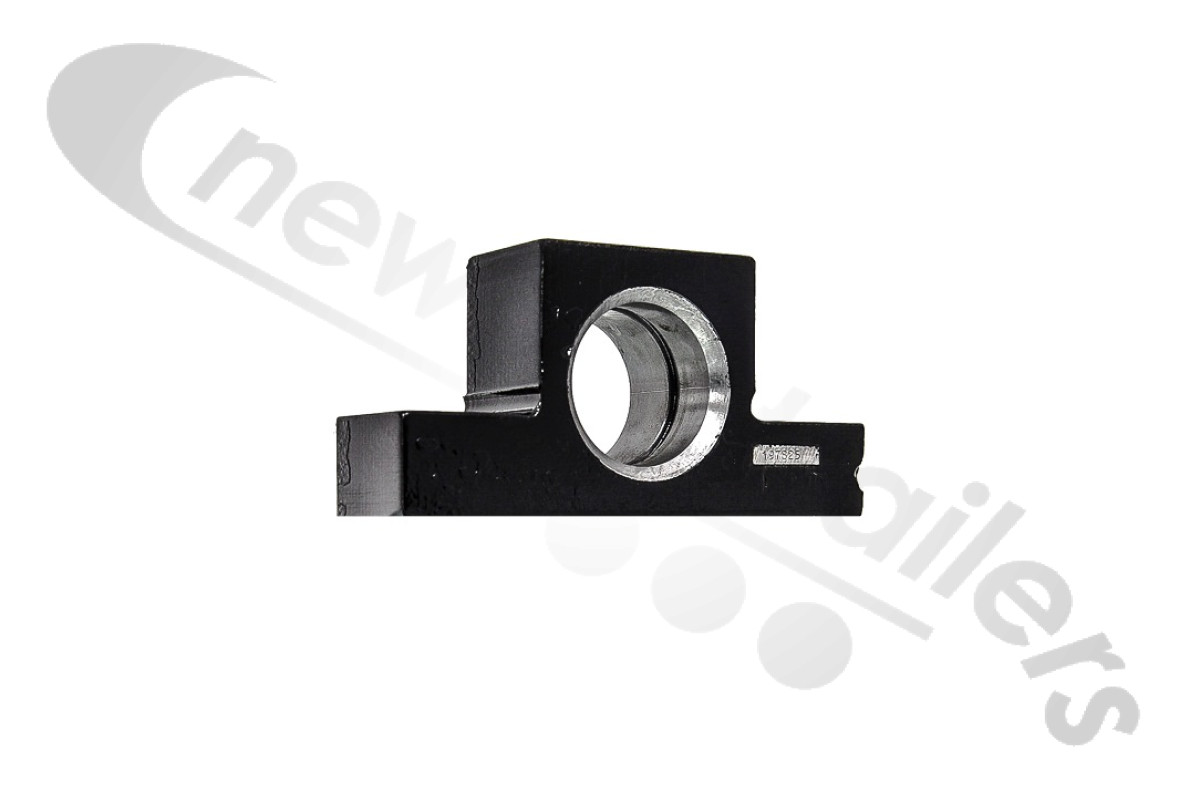

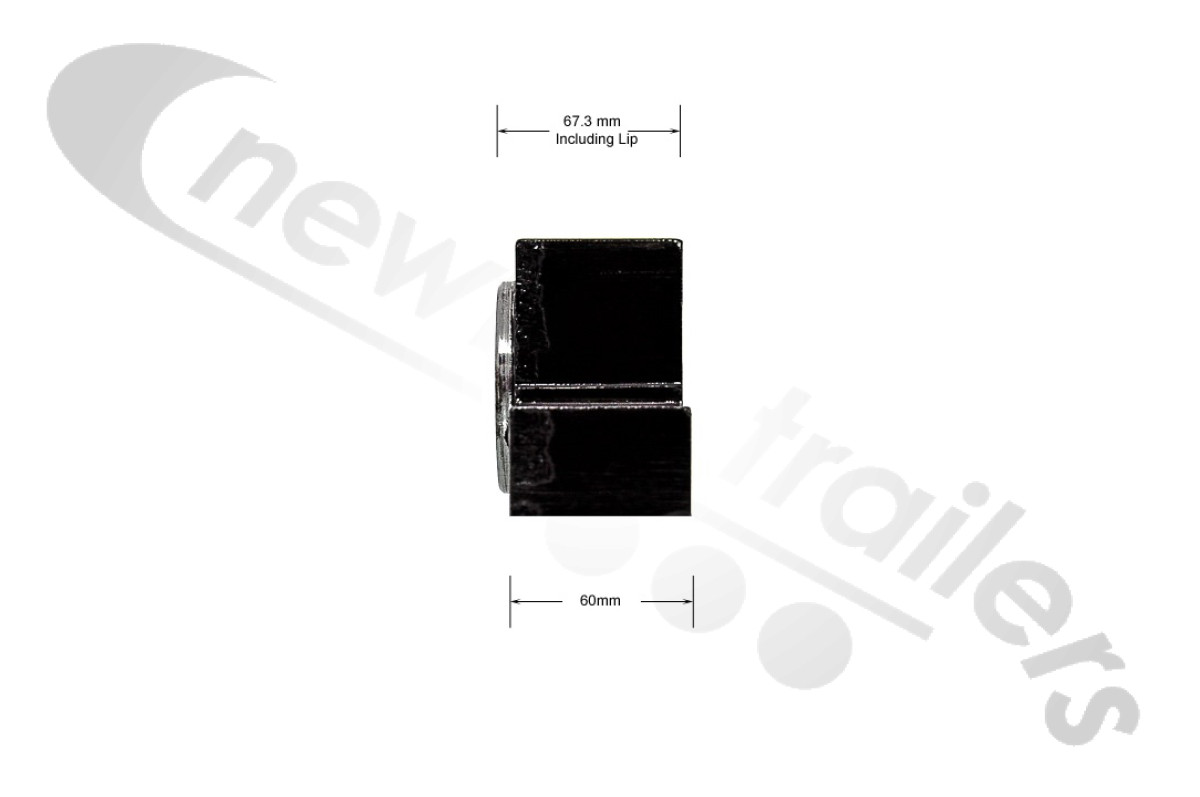

60.5MM BORE TRUNNION (EDBRO/HYVA)



Load Cell Trunnion with 60.5mm Bore. Used on Hyva Rams up to 18" & Newer Edbro CS Series Rams up to 18". 19" & Older 18" Edbro CS Series Rams use the larger 70.5mm Trunnions. Shoulder protrusion should be placed on the inside for Hyva Rams or on the Outside for Edbro Rams.

This is the block that sits on top of the load cell & supports either the tipping bar at the rear of the body or the Ram at the front, Please check bore size carefully before ordering to ensure a match for your trailer.


Also Available:
N1002027 2.25" Bore for early Hyva Rams
N1003945 2.50" Bore for early Crane Fruhaufl
N1003944 2.75" Bore
N1004225 60.5mm Bore for Edbro/Hyva Rams
N1001730 65.5mm Bore for Tipping Bars
N1003947 70.5mm Bore for Tipping Bars & Edbro/Hyva Rams
N1003946 80.5mm Bore
